Waterproof 1080P DVR AHD 12.3 Inch Front Rear Blind Area Car Monitor with Rear View Side View Camera
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-1230LS |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Type: | 12.3 Inch Truck Bus E-Mirror Side View Blind Spot Dual Lens Camera System | Warranty: | 18 Months |
|---|---|---|---|
| View Angle: | H=150°,V=90° | Waterproof: | IP 68 |
| Video Inputs: | 2 CH Video Input And 2 Splits Display | Feature: | Blindspot Video Display |
| Application: | Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester, Corn Machine | Resolution: | 1080P |
| Power Supply: | DC12V±10% | Power Consumption: | ≤1.5W |
| Highlight: | 12.3 Inch Car Monitor,Waterproof Car Monitor,1080P Car Monitor |
||
Product Description
12.3 Inch Front Rear Blind Area Car Monitor with Rear View Side View Camera
Car Camera Key Features:
1. Support AHD 1080P/960P/720P and 960H/ CVBS mixed input signal sources; Compatible with PAL/NTSC system input;
2. Each input video signal can be independently set brightness, contrast, saturation, chroma and sharpness and mirror, flip, rotation and other functions; 3. Video output, you can set the zoom display of the upper, lower, left and right margins, the display screen can be full display, the picture is not cut and deleted;
4. Each image can be set independently to enlarge and cut the image, which can cut the excess image around;
5. Support time-lapse video of stopping and extinguishing (24H parking monitoring function);
6. Maximum 512G memory card, ultra-long panoramic image memory, convenient for users to consult at any time;
7. Independent two-way display function, automatic switch display screen;
8. Panoramic monitoring recording image controllable playback function for instant viewing;
9. Users of this system can upgrade the latest program through the video card;
12.3 inch Mirror Specification:
| Item | 12.3inch Electronic Rearview Mirror | |
| Chip sensor | Hiss HI3520 (V300) | |
| System language | Chinese/English (others can be customized) | |
| Video compression format | H.264 Compression | |
| Brightness | 850cd/m2 | |
| Contrast | 800:1 | |
| OSD | Support time, date, channel characters, partition frame, vehicle information and other image overlay | |
|
Video and recordImage system
|
Video input | 2video AHD1080P/960P/720P ,960H/CVBS mixed input； support PAL and NTSC system auto display |
| Display model | Multi-picture mode combination display, support manual/voltage trigger full screen display function | |
| Resolution | 1920*1080 ,1280*720 ,1024*768 | |
| Recording resolution | 1920*1080 | |
| Video | Support 1080P/960P/720P/CVBS | |
| Video recording | Automatic power-on video recording | |
| Trigger input | 2 video I/O trigger, support 12-24V, Power triggered full screen display | |
|
Storage |
SD card
|
Support 2-512G SD card,loop recording
|
| Upgrade method | Support SD card recording upgrade | |
| Recording | Real-time storage, no frame loss, no missing seconds | |
|
Video playback |
Video search | Can choose the latest three days, the latest week, the latest two weeks, the latest month, all, etc. |
| playback | 2 Video synchronous playback supports pause, fast forward, and fast rewind | |
| Support 2, 4, 8 times fast forward or backward | ||
| Power supply and consmption |
Adaptive wide power input, with low voltage, overvoltage, reverse short-circuit protection functions;
|
|
| Power input | DC:+15V ~ +35V | |
| Power output | +11.5V/3A | |
Dual Len Camera Specificaiton:
| Item | Dual Lens Camera |
| Chip Sensor | SONY IMX307 |
| Image sensor | 1/2.8 " |
| Pixel Size | 2.9um x 2.9um |
| Pixel | 1945*1109 |
| Min.Lux | 0.0001Lux(@F1.2,AGC ON) |
| TV system | NTSC standard/Pal Optional |
| Lens | 150°(H) for front view /90°(H) for rear view |
| Waterproof | IP68 |
| ADC resolution | 10 bit ADC |
| Max Frame rate | 1080P@25fps / 1080P@30fps |
| Video output | 1920(h)*1080(v) |
| Current output | DC:12V ±10% |
| Operating temperature | -30~70℃ |
| Stable Image temperature | -40~80℃ |
| Input frequency | 74.25/37.125MHz |
| Size | 109*74*46cm |

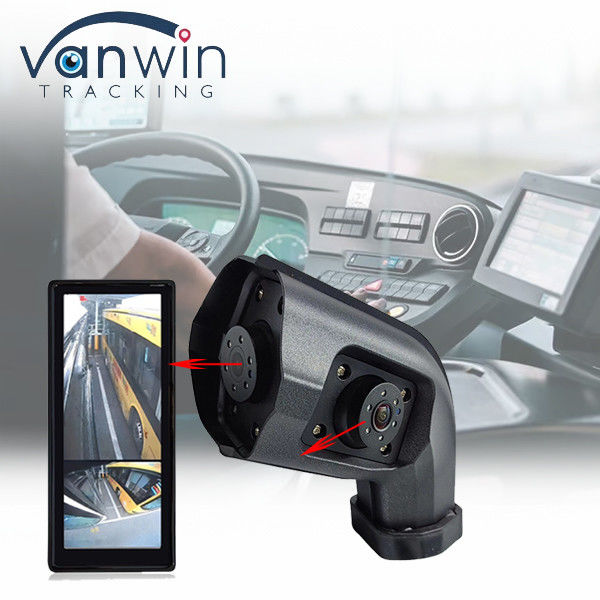

Car Camera Product Pictures
