2K 1080P Dual Dash Cam WiFi APP Control Night Vision Parking Monitor G-Sensor For Car
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-A19 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | Dash Cam 1080p WiFi Dash Cam Support GPS | Video Resolution: | 1920*1080P |
|---|---|---|---|
| View Angle: | 120 Degree | G-sensor: | Built-in G-sensor |
| Night Vision: | Super Night Vision | Tf Card: | Support 256G |
| Screen Size: | 3 Inch HD LCD Screen | Warranty: | 12 Months |
| Highlight: | 2K Dual Dash Cam,WiFi APP Control Dual Dash Cam |
||
Product Description

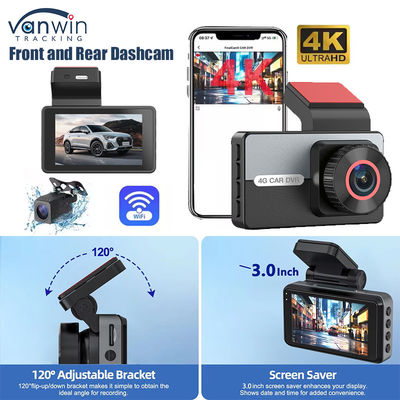

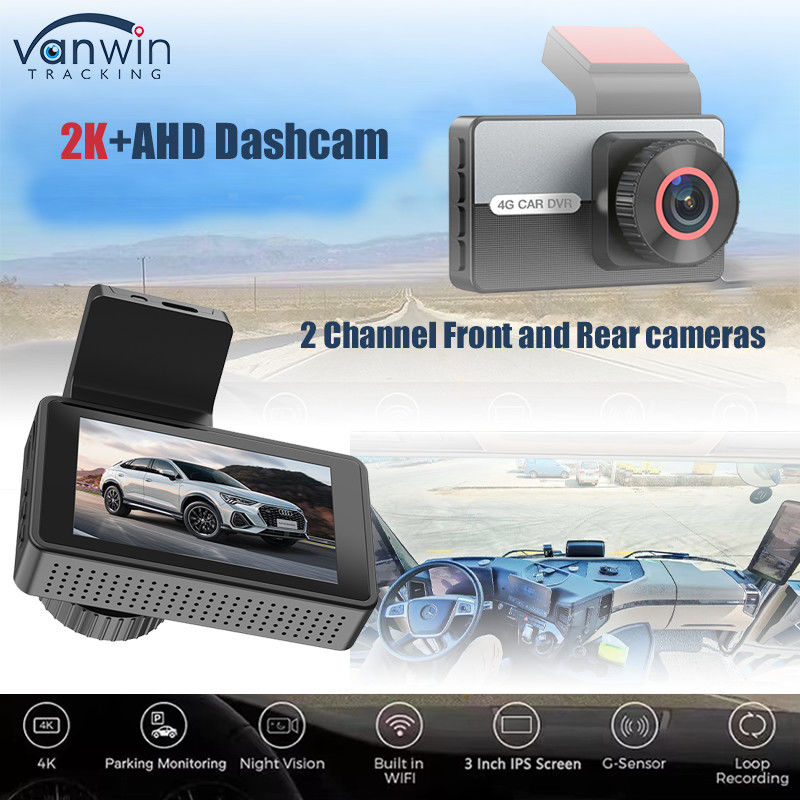

2K 1080P Dual Dash Cam WiFi APP Control Night Vision Parking Monitor G-Sensor For Car
2K Dashcam Description
Elevate your driving safety and peace of mind with our 2K + 1080P Dual Dashcam, a cutting-edge automotive accessory designed to capture crystal-clear footage of both your front and rear views. Whether navigating busy city streets or embarking on long road trips, this dual-lens dashcam ensures comprehensive coverage, protecting you from unexpected incidents and providing irrefutable evidence in case of accidents.
Key Features:
Dual-Channel Recording
- Front Camera (2K Ultra HD): Records stunning 2560×1440p resolution at 30fps, capturing sharp details like license plates, street signs, and road conditions.
- Rear Camera (1080P Full HD): Delivers 1920×1080p resolution at 30fps for a clear view of traffic behind you, perfect for monitoring rear-end collisions or parking incidents.
24/7 Surveillance with Parking Monitor
- Built-in G-sensor automatically detects collisions and locks footage during parking mode to prevent overwriting.
- Time-Lapse Recording: Saves storage space while monitoring your vehicle 24/7 with low-power consumption.

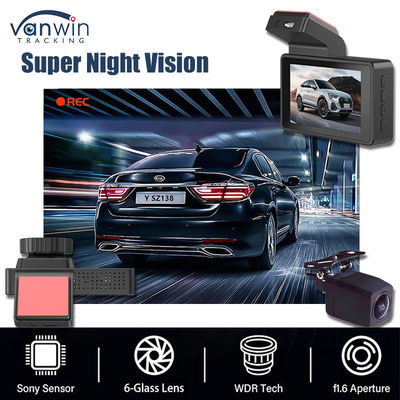

Enhanced Night Vision
- Equipped with f/1.8 aperture lenses and WDR (Wide Dynamic Range) technology to optimize visibility in low-light conditions, ensuring vivid footage at night or in tunnels.

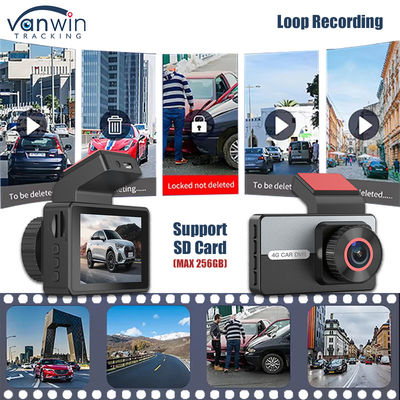

Loop Recording & Emergency Lock
- Seamless loop recording overwrites old files when the storage is full.
- Auto-save critical clips triggered by sudden shakes, collisions, or manual input via the one-touch emergency button.
Built-in GPS & Speed Tracking
- GPS logger embeds location, speed, and route data into videos, offering valuable evidence for insurance claims or legal disputes.
User-Friendly Design
- 2.4-inch IPS Screen: Instantly preview or playback footage with the intuitive interface.
- Wide-Angle Lenses: Front 140° + rear 120° coverage minimizes blind spots.
- Easy Installation: Compact design with adhesive mount or suction cup, compatible with most vehicles.
Expandable Storage & Connectivity
- Supports up to 256GB microSD card (not included) for extended recording.
- Wi-Fi/App Control (optional model): Wirelessly manage settings, view footage, and share clips via smartphone.
| Product Name | 2K + Rear AHD |
| Product Model | A19 |
| Product Appliaction | Linux-based dashcam motherboard with front 2K + rear AHD recording, one-click snapshot, parking surveillance, remote live streaming, WiFi LAN preview, real-time GPS/BDS positioning, route playback, low battery protection, and ultra-low power consumption. |
| Main Control Chip | Allwinner V853 |
| Image Sensor | GC4653 Sensor |
| ROM | NOR Flash 128Mb |
| RAM | 256MB |
| Display | 3.0-inch |
| WiFi | RTL8189 |
| Lens | F/NO 1.60; FOV: 136° (Diagonal), 115° (Horizontal), 61° (Vertical) |
| Positioning | Dual-mode GPS + BDS (Global Positioning System + BeiDou Navigation) |
| Video Format | H.264/H.265 encoding; MP4 file format; supports custom TS format |
| Operating System | Linux |
| Recording Mode | Auto-recording upon power-on |
| Recording Duration | Off / 1 min / 2 min / 3 min / 5 min / 10 min |
| Video Resolution | Front: 2K @30fps (2560×1440) Rear: 720P @25fps (1280×720) |
| Display Mode | Normal image output and video playback |
| Video Format (TS) | TS format |
| 4G Communication | Supports bands: B1, B3, B5, B8, B38, B39, B40, B41 |
| WiFi Communication | Built-in 2.4GHz hotspot |
| Screen Operation | Off / 1 min / 3 min / 5 min / 10 min |
| Photo Format | JPG (16MP: 5376×4032; 12MP: 4032×3024; 10MP: 3648×2736; 8MP: 3264×2448) |
| Image Settings | Exposure compensation, white balance |
| G-SENSOR Function | Auto-records and locks files upon collision detection; event files protected from deletion |
| File Storage | External TF card (up to 256GB) Time watermark toggleable |
| Audio/Video Output | High-definition audio/video output |
| Speaker | Built-in |
| Microphone | Built-in |
| Delayed Shutdown | Default: 10 seconds |
| Power Supply | DC 5V-12V (auto-starts/stops with vehicle ignition) |
| SD Card Slot | Mini TF card |
| LEDs | Red/blue LEDs for power and network status |
| Boot Logo | Customizable |
| Operating Voltage | DC 5V |
| Standby Current | 200μA |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +85℃ |
2K 1080P Dashcam Application
2K Dashcam Photos
FAQ:2K 1080P Dual Dashcam
Q1: What resolutions does this dashcam support?
-
Front camera: 2K (2560x1440) @30fps.
-
Rear camera: 1080P (1920x1080) @30fps.
-
Both cameras record simultaneously.
Q2: Does it support night vision?
Yes, both cameras feature infrared night vision with WDR (Wide Dynamic Range) for clear low-light recording.
Q3: Is there built-in GPS?
Yes, GPS logs speed and location data (embedded in videos or saved separately).
Installation & Setup
Q4: How do I mount the dashcam?
-
Use the suction cup or adhesive mount for the front camera.
-
Rear camera connects via a 6-meter cable (routed through your car’s interior).
Q5: Can I hardwire it for parking mode?
Yes, with an optional hardwiring kit (sold separately). Parking mode activates motion/g-force detection when the engine is off.
Storage & Video Management
Q6: What microSD card is recommended?
-
Use Class 10/U3 cards (32GB–256GB). Format the card in the dashcam before use.
-
Supports loop recording (overwrites oldest files when full).
Q7: How long does 64GB store footage?
-
Front (2K): ~8 hours.
-
Rear (1080P): ~12 hours.
-
Varies based on resolution and scene complexity.
Q8: How to save accident footage?
The G-sensor auto-locks files during collisions. Manually lock footage by pressing the emergency button.
Features & Connectivity
Q9: Can I view footage on my phone?
Yes, via the dedicated app (Wi-Fi connection). Download/share clips without removing the SD card.
Q10: Does it have a screen?
Yes, a 2.4” LCD for live preview and settings adjustment.
Troubleshooting
Q11: Why won’t the dashcam turn on?
-
Check the car charger/USB connection.
-
Ensure the fuse isn’t blown (if hardwired).
Q12: Videos are blurry. What should I do?
-
Clean the lenses.
-
Adjust focus (if applicable) or disable HDR in bright conditions.
Q13: Files are corrupted. How to fix?
-
Reformat the SD card in the dashcam.
-
Replace the card if issues persist (low-quality cards may fail).
Warranty & Support
Q14: What’s the warranty period?
1-year limited warranty (excludes physical damage or misuse).
Q15: How to update firmware?
Download updates via the app or manufacturer’s website; install via SD card.
