Waterproof Car Rear View Backup Radar Camera 1080P HD Night Vision With 11G MM Radar Wave
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-88 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or Western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Sensor: | 1/2.7”CMOS | Pixel: | 1920(H)x1080P(V)/1280(H)x720(V)/CVBS |
|---|---|---|---|
| Interface Type: | M12 Aviation Plug | Waterproof Grade: | IP68 |
| Operating Temperature: | -30℃~70℃ | Feature: | Waterproof,11G MM Radar Wave |
| Remote Control: | Without Remote Control | Warranty: | 12 Months |
| Highlight: | Waterproof Backup Radar Camera,Car Rear View Backup Radar Camera |
||
Product Description
Waterproof Car Rear View Backup Radar Camera 1080P HD Night Vision With 11G MM Radar Wave
More accurate reverse camera, six LED fill lights with 11G mm radar wave. In complex scenes (such as bushes, barbed wire), it is also possible to penetrate gaps to identify hidden obstacles. Excellent night vision function suitable for a variety of outdoor work vehicles or mechanical equipment.
Car Rear View Backup Radar Camera Key Features
1. Ultra-high precision detection and dynamic sensing capability
Sub-centimeter ranging accuracy
11G millimeter wave radar (operating frequency 76-81GHz) through the frequency modulated continuous wave (FMCW) technology, to achieve 0.1-30 meters within the obstacle ranging error of ±2cm, far exceeding the ultrasonic radar accuracy of ±10cm. In complex scenes (e.g., bushes, barbed wire), you can penetrate gaps to identify hidden obstacles.
Multi-target tracking and speed sensing
Support simultaneous tracking of 32 moving targets (such as pedestrians and bicycles), combined with Doppler effect real-time calculation of relative speed (accuracy ±0.1km/h).
2. All-weather reliability
Anti-interference performance breakthrough
Millimeter wave radar can still work stably in extreme environment such as heavy rain, fog, sand and dust, and the false alarm rate is < 0.5%. The camera compensates for visual blind areas through multi-spectral fusion (visible + infrared).
Temperature adaptive optimization
Using a radar module, the operating temperature range is -20℃ to 70℃, to adapt to the extreme temperature difference environment in the cold region (such as northern Europe) and the desert region (such as the Middle East).
| Model Number | VW-88 |
| Photosensitive Chip | 1/2.7" CMOS |
| System Standard | PAL / NTSC |
| Effective Pixel | 1920(H)x1080P(V)/1280(H)x720(V)/CVBS |
| Noise Reduction | 3DNR |
| Focus Distance | 2.7mm |
| Lens Structure | 2G2P |
| Field Angle | Horizontal: 131° / Vertical: 70° |
| Fill Light Mode | LED |
| Connector Length | 0.5M |
| Interface Type | M12 Aviation Plug |
| Operating Voltage | DC 5V-55V |
| Maximum Power | 2W |
| Operating Temperature | -30℃~70℃ |
| Dimension | 75mm x 61mm x 77.25mm |

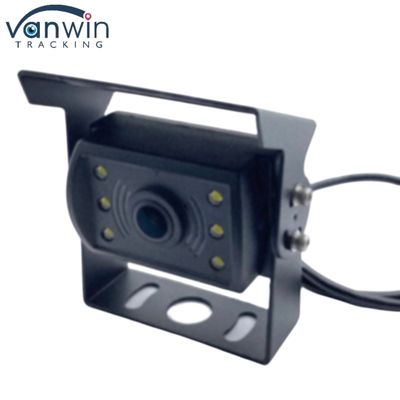

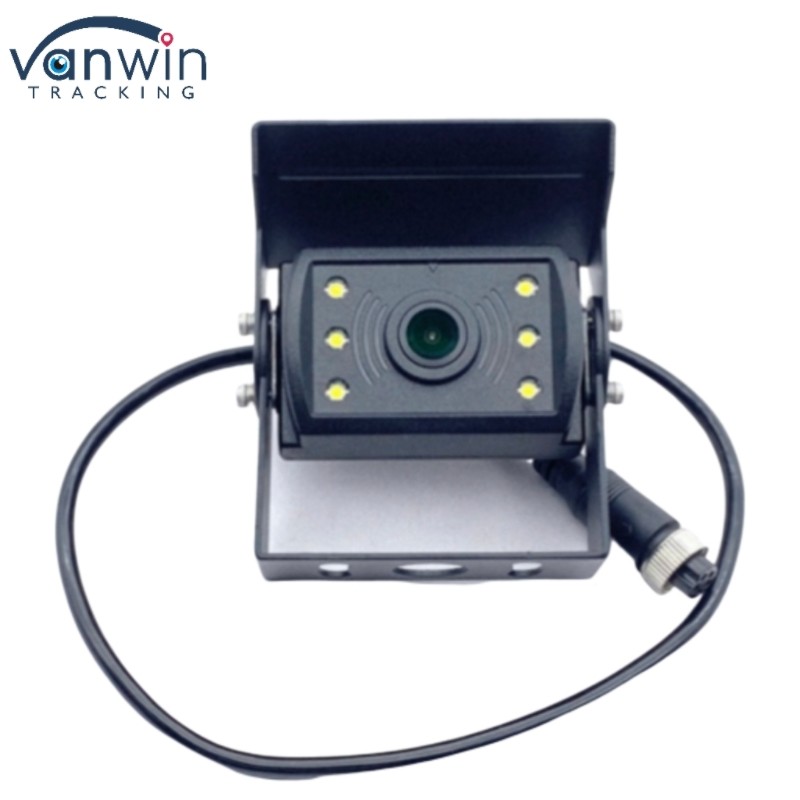

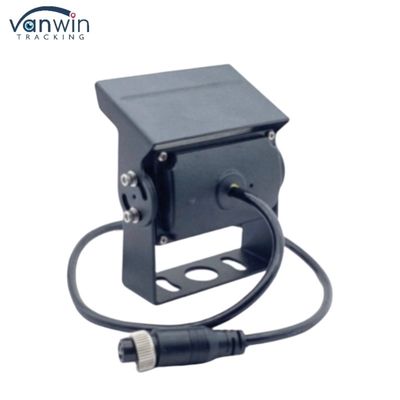

Car Rear View Backup Radar Camera Pictures
Car Rear View Backup Radar Camera Application Scenarios
Our Industry Advantage
We specialize in the research, development, production, and sales of advanced vehicle CCTV systems, ensuring our customers have access to the latest technology. Committed to stringent quality control, our professional QC teams consistently deliver high-standard products. We have had the privilege of serving major companies worldwide and customizing specialized projects for clients across the globe. Look forward to the opportunity to collaborate with you in the near future.
FAQ
1.Q: How do I install this car camera on my truck?
A: We have detailed product installation and operation instructions to help you install and use this car camera better and faster.
2.Q: Is this camera suitable for use on crane?
A: Yes, this product is suitable for use in various industrial machinery.
3.Q: Does your company support custom service?
A: Yes, we have provided many clients with customized solutions to solve their specific needs, with a customer satisfaction rate of 99%. If you have a customized request for the vehicle monitoring system, please send it to us by email.
