AHD Monitor 4 Channel 7 Inch Full HD1080P MDVR Split Display Car Monitor For Vehicle
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VM-M704QA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Product Name: | 7 Inch AHD Mirror Car Monitor | Selling Points: | All The Way VGA Input |
|---|---|---|---|
| Cameras: | 4-8 CVBS AHD Cameras | Signal System: | PAL/NTSC |
| Video Format:: | H.264 | Storage: | SD Card |
| Water/dust Resistant Rating: | IP69K | Voltage: | DC 12~36V |
| Video Connector: | RCA Head And 4P Aero Head Are Optional | Special Function: | Light Sensing Function, Can Automatically Adjust The Screen Brightness Day And Night, |
| Highlight: | 7 Inch Car Monitor,4 Channel Car Monitor,Full HD1080P Car Monitor |
||
Product Description
7 Inch AHD Monitor 4 Channel Full HD1080P MDVR Split Display Monitor For Vehicle
Split Display Monitor Product Overview
This 7-inch AHD monitor is a high-performance device specifically designed for vehicles. It comes with a 4-channel feature and supports Full HD 1080P resolution, ensuring clear and detailed video surveillance for your vehicle. With its advanced AHD (Analog High Definition) technology, it provides a seamless and high-quality video transmission experience.
- High Resolution: Offers a Full HD 1080P resolution, which enables you to clearly identify details in the monitored areas. Whether it's for security purposes or monitoring the surroundings while driving, the sharp and vivid image quality enhances visibility.
- 4 Channel Support: Allows you to connect up to 4 cameras simultaneously. This feature is extremely useful for comprehensive vehicle monitoring, covering multiple angles such as the front, rear, and sides of the vehicle. You can easily switch between different channels or display multiple channels on the screen at the same time with the split display function.

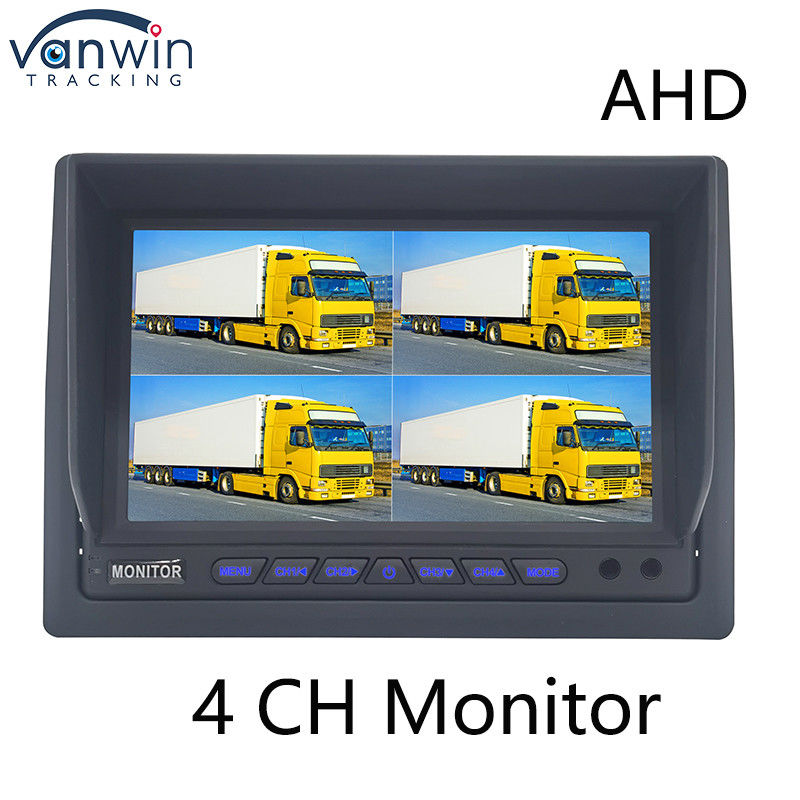

- Split Display Function: The monitor supports split display modes, including quad split (showing all 4 channels at once), dual split, and single channel display. This flexibility gives you the ability to customize the viewing experience according to your specific needs, whether you want to focus on a single camera or keep an eye on multiple areas simultaneously.
- MDVR (Mobile Digital Video Recorder) Integration: Built-in MDVR functionality enables continuous recording of the video from the connected cameras. The recorded footage can be stored on an external storage device (such as a microSD card, not included), allowing you to review the recordings later for security audits, accident investigations, or other purposes.
- Waterproof Design: The monitor is designed to be waterproof, making it suitable for use in various weather conditions. Whether it's raining, snowing, or facing other adverse environmental factors, you can rely on this monitor to function properly without the risk of water damage.
- Vehicle Compatibility: Specifically tailored for vehicle use, it can be easily installed in cars, trucks, buses, and other types of vehicles. The compact and durable design ensures it can withstand the vibrations and movements associated with vehicle operation.
- User-friendly Interface: Features an intuitive interface that makes it easy to operate. You can quickly adjust settings such as channel selection, display mode, volume, and recording options with the simple control buttons on the monitor or through the included remote control.
- 1 x 7-inch AHD Monitor
- 1 x Power Cable
- 1 x Remote Control
- 1 x User Manual
- Before installation, make sure to turn off the vehicle's power supply to avoid any electrical hazards.
- Follow the installation instructions carefully to ensure proper connection of the cameras and power supply.
- When using the split display function, adjust the screen layout according to your viewing preferences for the best experience.
- Regularly check and clean the monitor to maintain its performance and appearance.
- Ensure that the microSD card is properly inserted and has sufficient storage space for recording.
Split Display Monitor Paramenters
|
Model
|
VW-M704QA
|
|
Screen
|
7 inch 16:9
|
|
Resolution
|
1024*R.G.B*600
|
|
Back Light Luminance
|
LED 500-650cd/㎡
|
|
View angle
|
L/R: 85°
UP/Down: 85° |
|
Video Input
|
4-Channel AHD Video Input
Single/2/3/4 Quad Images Adjustable Supporting AHD 720P/960P/1080P Video Compatibility: CVBS /AHD |
|
Audio Input
|
Built-in speaker,1 way audio input(V2)
|
|
Reverse Trigger
|
4 Ways Trigger Priority:V2>V1>V3>V4
|
|
System
|
PAL & NTSC auto-switching
|
|
SD card
|
1 x SD High speed card (Max. 256G)
|
|
Video compression
|
H.264
|
|
OSD Menu
|
Video Recording is optional (Supporting 4CH video recording simultaneously and storage into four independent files simultaneously
Supporting quick photography, playback, pause, forward, backward and other operations. The video file can be locked for protection, and the locked file will not be overwritten or deleted. The memory card can be automatically overwritten or deleted manually |
|
Power supply:
|
DC 12V-36V input,12V output
|
|
Protection Setting
|
High-low voltage protection & short circuit protection
|
|
Working temperature
|
-20℃ to 70℃
|
|
Storage temperature
|
-30℃ to 80℃
|
|
Housing:
|
Plastic & With Black Rubber Painted
|
|

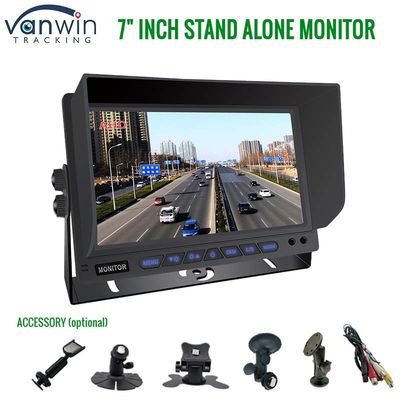

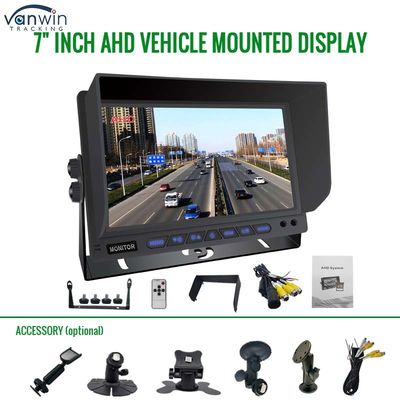

Accessories
|
Metal U type Bracket & Detachable Sunshade(Default)
Butterfly Bracket/Fan Bracket/ Suction Cup Bracket (optional) |
|
Cable Connector
|
RCA / 4pin connector (Optional)
|
|
Dimension
|
180*121*26(75)mm
|

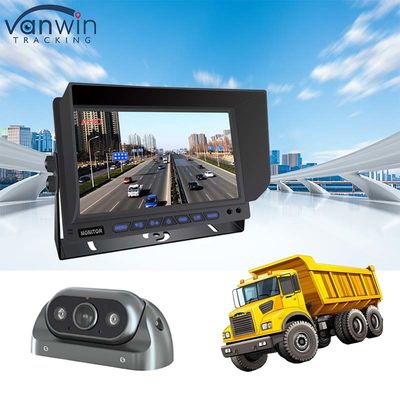

Split Display Monitor Photos
MDVR Monitor Applications:
Commercial Vehicle Monitoring
Public Transportation Systems
Logistics and Transportation
Security Surveillance
About Us
We have always adhered to the concept of sincerity,kindness,and altruism,customer-oriented,and do our best to help customers benefit mankind!
We believe in making the world a safer place for drivers and pedestrians We do this professionally by owning our entire manufacturing process, by having a deep understanding of the vehicle safety field with over 15 years of experience, and by using only the highest quality materials and up-to-date with the most advanced AI technology.
FAQ
Q1. What is the MDVR Split Display Monitor?
The MDVR Split Display Monitor is a high-resolution monitor designed for use with Mobile Digital Video Recording systems. It allows users to view multiple camera feeds simultaneously through its split-screen functionality.
Q2. How many video inputs does the monitor support?
The monitor supports up to four video inputs, enabling users to monitor different camera feeds at the same time.
Q3. What types of connections does the monitor have?
The monitor features multiple input interfaces, including HDMI, VGA, and AV, making it compatible with a wide range of devices.
Q4. Is the monitor suitable for outdoor use?
Yes, the monitor is built with rugged materials designed to withstand harsh environmental conditions, making it suitable for outdoor use.
Q5. Where can I purchase the MDVR Split Display Monitor?
The monitor can be purchased through various online retailers, electronics stores, or directly from manufacturers specializing in vehicle monitoring systems.
