7 inch AHD 130 Angle Radar Reverse Side Rear View Vehicle Camera DC 5-25V Power Consumption for Bus Truck
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-88 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Function: | Night Vision, Dustproof, Shockproof | IR Lens: | 6 PCS |
|---|---|---|---|
| Angle: | Wide Angle 130° | Sensor: | CMOS |
| Signal System: | PAL/NTSC | Lens: | 2.7mm |
| Power Consumption: | DC 5-25V | Pixel: | 1920(H)×1080P(V)/1280(H)×720(V)/CVBS |
| Warranty: | 12 Months | Applicable Model: | Car, SUV, Truck, Agricultural Vehicles, Engineering Vehicles, Sightseeing Car, RV, Forklift, Harvester, Corn Machine |
| Customized Support: | Online Technical Support, OEM, ODM | ||
| Highlight: | 7 inch Rear View Vehicle Camera,AHD 130 Angle Vehicle Camera,Reverse Side Rear View Vehicle Camera |
||
Product Description
7 inch AHD 130 Angle Radar Reverse Side Rear View Vehicle Camera For Bus Truck
Introducing our high - performance 7 - inch AHD 130° Angle Radar Reverse Side Rear View Vehicle Camera, the ultimate solution for bus and truck drivers seeking enhanced safety and visibility.
Vehicle Camera Function
1.Advanced AHD Technology
This camera is equipped with advanced AHD (Analog High Definition) technology. AHD technology allows for the transmission of high - definition video signals over coaxial cables. It supports a resolution of up to 1080p, which is significantly higher than standard analog cameras. The 1080p resolution ensures that every detail in the rear and side views of your vehicle is captured clearly. Whether it's the license plate of a car behind you or the small obstacles on the side of the road, you can easily distinguish them. With AHD, the color reproduction is also more accurate, presenting a true - to - life view of the surrounding environment. This high - definition image quality is maintained even over long cable runs, providing a reliable and stable video feed.
2.Wide 130° Angle Lens
The wide 130° angle lens offers an expansive field of vision. To put this into perspective, a typical narrow - angle camera might have a field - of - view of around 60 - 90°. With our 130° lens, the camera can cover a much larger area. For example, when reversing a bus or truck, it can show not only the immediate area directly behind but also a significant portion of the sides. This helps in minimizing blind spots. In a busy parking lot, you can see if there are pedestrians or other vehicles approaching from the sides, giving you more time to react and avoid potential collisions. The lens is carefully engineered to provide a distortion - free view, so the images remain true to the actual scene, even at the edges of the frame.
3.Integrated Radar System
One of the standout features of this camera is its integrated radar system. The radar operates on a specific frequency band, typically in the 24GHz or 77GHz range. This frequency allows for accurate distance detection. The radar can detect objects up to a distance of approximately 10 - 15 meters behind the vehicle. When an object enters this detection range, the radar system calculates the distance and speed of the object. It then sends this information to the camera's control unit, which in turn triggers an audible and visual alert. For example, if a car is approaching rapidly from behind while you are reversing, the alert will sound earlier, giving you enough time to stop or adjust your reversing speed. The radar system is highly sensitive and can distinguish between different types of objects, such as cars, trucks, and pedestrians, providing you with relevant and timely warnings.
4.Durable Construction
Designed specifically for buses and trucks, this camera is built to withstand the harsh operating conditions on the road. It is made of high - quality, impact - resistant materials. The camera housing can endure shocks from potholes, bumps, and vibrations during long - distance travels. It is also resistant to extreme temperatures, ranging from - 40°C to + 85°C. This means it can function properly in the coldest winter conditions in northern regions or the sweltering heat of deserts. Additionally, the camera is waterproof and dustproof, meeting the IP67 or higher waterproof rating standards. This ensures that no water or dust can penetrate the camera, maintaining its performance in all weather conditions, be it heavy rain, snow, or dusty construction sites.
Vehicle Camera Function Specifications:
|
Feature
|
Bus Track VAN Cameras
|
|
Image Type
|
1/3" 1/4 Color CCD/CMOS
|
|
Night vision
|
With IR lamp
|
|
LED
|
6pcs
|
|
TV System
|
NTSC/PAL
|
|
Lens Angle (Deg.)
|
130 degree
|
|
IP Rating
|
IP68
|
|
Connector
|
4P connector or RCA connector for selection
|
|
Effective Pixels
|
1920(H)×1080P(V)/1280(H)×720(V)/CVBS
|
|
Horizontal Resolution
|
420TVL/600TVL
|
|
B.L.C
|
Back light Compensation (Auto)
|
|
White Balance
|
Auto White Balance (Auto)
|
|
Minimum Illumination
|
0Lux (LED ON)
|
|
S/N Ratio
|
≥48dB
|
|
Electronic Shutter
|
1/60~1/100,000 Sec
|
|
Power consumption
|
<3W
|
|
Built-in Lens
|
f:1.8mm
|
|
Power Consumption
|
DC 5-20V
|
|
Audio
|
without
|
|
Operation Temperature
|
-30℃~+70℃.RH95% Max
|
|
Storage Temperature
|
-40℃~+80℃.RH95% Max
|
|
Certificate
|
FCC,CE,ISO9001,IATF16949, RoHs
|
|
Weight/Package
|
4Pin connection diagram:0.3KG
|

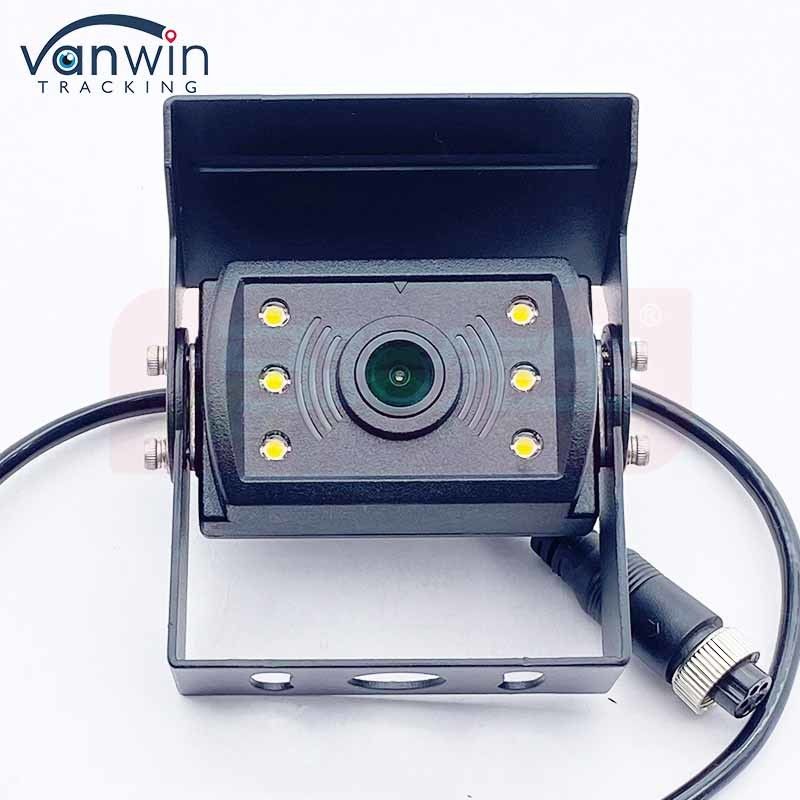

Vehicle Camera Photoes:

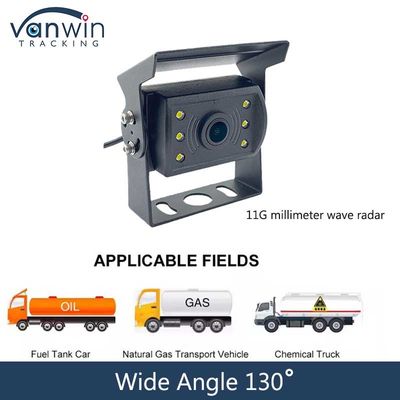

Vehicle Camera Applicable

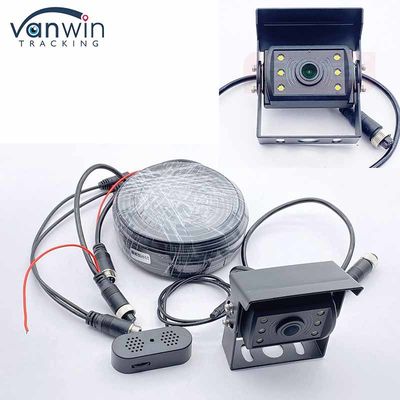

Connetor Available for Option
- 4Pin Aviation connector
- DC+RCA connector
- CCTV security BNC connector
FAQ
How does night vision technology work?
Night vision cameras typically use infrared light, which is invisible to the naked eye. The camera detects this infrared light and converts it into a visible image. Some models may also use digital enhancement techniques to improve image quality.
What is the best way to mount a night vision camera?
Mounting options vary by model, but common methods include wall mounts, pole mounts, or using a tripod. Ensure the camera is positioned for optimal coverage of the area you want to monitor.
Can I use a night vision camera during the day?
Yes, most night vision cameras can be used during the day. However, it’s important to check the specifications, as some models may require a filter to prevent damage from bright sunlight.
Are night vision cameras waterproof?
Many night vision cameras are designed to be weather-resistant or waterproof. Always check the product specifications for details on its IP rating to ensure it meets your needs for outdoor use.
Do night vision cameras record audio?
Not all night vision cameras have audio recording capabilities. If this feature is important to you, make sure to look for models specifically designed with built-in microphones.
How long does the battery last?
Battery life varies based on usage, camera features, and specific models. On average, night vision cameras can last anywhere from several hours to several weeks on a single charge, depending on whether they are in standby or active recording mode.
