High Waterproof Grade IP69K Shock-resistant Car Camera With Automatic Heating And Fog Removal 4PIN Connector
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-388 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or Western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| System: | PAL/NTSC | Feature: | Automatic Heating |
|---|---|---|---|
| Higheat Waterproof Grade: | IP69K | Connector: | 4PIN |
| Operating Temperature: | -25℃~70℃ | Warranty: | 12 Month |
| Highlight: | Automatic Heating Car Camera,IP69K Shock-resistant Car Camera,Fog Removal Car Camera |
||
Product Description
IP69K Waterproof And Shock-resistant Car Camera Automatic Heating And Fog Removal Function For Cold Weather
This camera is our company's exclusive private model, unique appearance, and the highest quality. The built-in heating element can automatically start the heating mode when the power is on, effectively preventing condensation or frost inside the camera, especially suitable for northern Europe or Russia Belarus or extremely cold weather.
Automatic Heating Car Camera Key Features
1. Highest waterproof grade, automatic heating function
IP69X, the product has been strictly tested for vacuum water resistance.

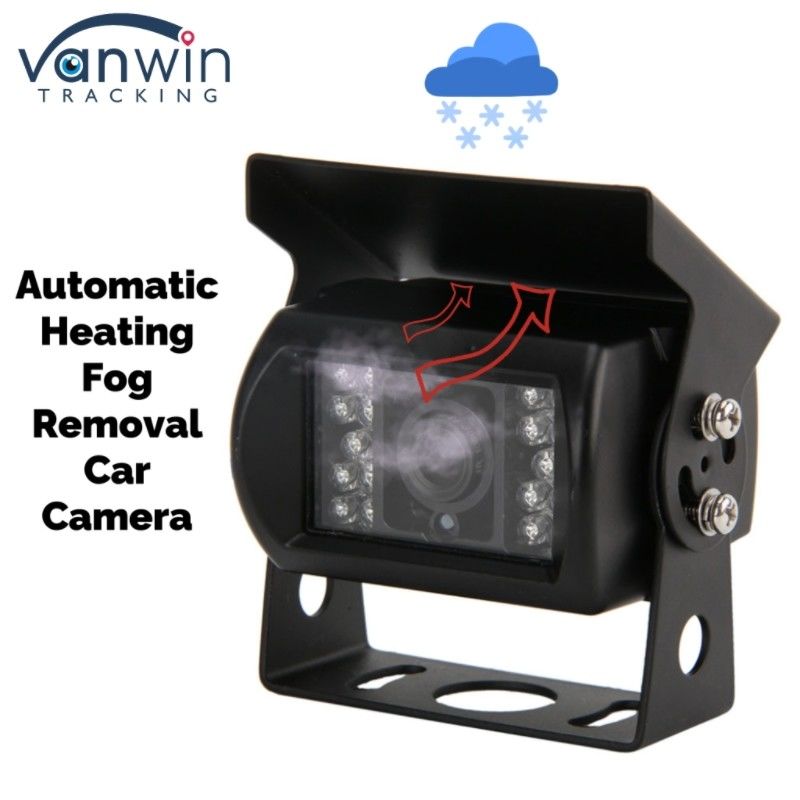

The camera is automatically heated to remove fog, and the monitoring picture can be kept clear in the cold and windy working environment.
2. 2 million pixel progressive scan CMOS
Breakthrough technology: Progressive Scan with Anti-Aliasing 2.0
Value embodiment: eliminates the motion artifacts generated by traditional interleaving scanning, and can still capture the details of 0.1mm license plate under the scenario of speed >120km/h.
Typical application: freeway dynamic capture | rail transit displacement monitoring.
3. Super sensitive night vision system
Parameter evolution: 0.01Lux@F1.2 (moonlight level) → 0Lux (all black environment)
Intelligent switching: Equipped with the third generation IR-CUT double filter linkage mechanism, with CDS ambient light sensor chip, to achieve <3ms day and night mode switching.
Engineering verification: Continuous work in -25℃ extremely cold environment for 200 hours without light decline.
4. Smart image enhancement kit
Wide dynamic technology: 120dB digital WDR+ physical aperture adjustment, strong backlight scene license plate recognition rate increased to 98.7%.
Noise reduction system: 3D-DNR (time domain noise reduction) + 2D-DNR (spatial noise reduction) + AI noise learning model.
5. Military grade protection design
Circuit protection: 6KV lightning protection module
Structural innovation: IP69K fully sealed die-cast aluminum body, supporting 72 hours of continuous rainstorm conditions.
Operation and maintenance guarantee: Support UTC time synchronization ±1ms accuracy, OSD menu to achieve a variety of languages one-click switching.
| Model Number | VW-388 |
| Photosensitive Chip | 1/2.9" AHD |
| System Standard | PAL / NTSC |
| Effective Pixel | 1920(H)x1080P(V) |
|
Min.illumination
|
0.0001Lux
|
|
Electronic Shutter
|
1/25s～1/100,000s
|
|
Video Standard
|
AHD
|
|
Frame Rate
|
1080P@25 fps；1080P@30 fps
|
|
Lens
|
2.8MM(Horizontal angle 105°±5)
|
|
Video Out
|
AHD 1080P Output
|
|
WDR
|
AUTO |
|
White Belance
|
AWB
|
|
Advanced Function
|
2D_DNR
|
|
Working Environment
|
-25℃～+70℃,Humidity 95%
|
|
Power supply
|
DC12V(±15%)
|
|
Video interface
|
4PIN
|
|
Weight Gross
|
0.37kg/pcs 50pcs/box(53cm*52cm*20cm)
|

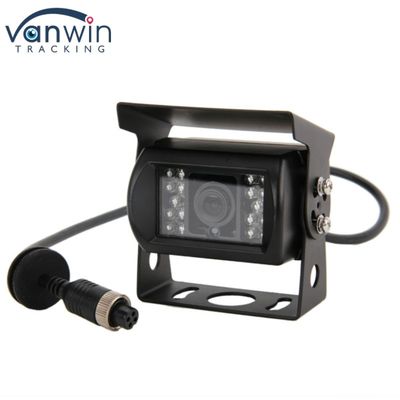

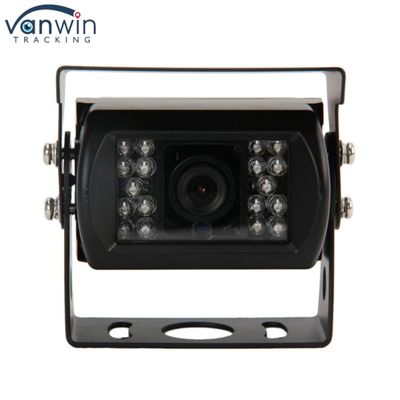

Automatic Heating Car Camera Product Picture
Automatic Heating Car Camera Application Scenarios
Our Industry Advantage
We specialize in the research, development, production and sales of advanced vehicle CCTV systems, ensuring our customers have access to the latest technology. Our professional QC team is committed to strict quality control and consistently delivers high-standard products. We have the honor of serving large companies around the world and customizing professional projects for global customers. Looking forward to the opportunity to work with you in the near future.
FAQ
1. Q: How do I install a vehicle camera on my truck?
A: We have detailed product installation and operation instructions to help you install and use this waterproof and auto-heating vehicle camera better and faster.
2. Q: Is this camera suitable for use on a crane?
A: Yes, this product is suitable for a variety of industrial machinery.
3. Q: Does your company support customized services?
A: Yes, we have provided customized solutions for many customers to meet their specific needs, with a customer satisfaction rate of 99%. If you have customized requirements for the vehicle monitoring system, please send it to us by email.
