1080P HD Dome Bus Surveillance Camera Suitable For All Large Transport Vehicles
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-113 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or Western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| TV System: | PAL / NTSC | Power: | 12V / 24V |
|---|---|---|---|
| Aduio: | Built In | Connertor: | 4 Pin |
| Operating Temperature: | -20℃~70℃ | Warranty: | 12 Month |
| Highlight: | Large Transport Vehicles Bus Surveillance Camera,1080P HD Dome Bus Surveillance Camera |
||
Product Description
1080P HD Dome Bus Surveillance Camera Suitable For All Large Transport Vehicles
The dome surveillance camera not only strengthens the bus safety bottom line, but also optimizes operational efficiency through data-driven, while providing underlying support for the construction of urban smart transportation network, and its comprehensive value far exceeds that of traditional security equipment.
1080P HD Dome Bus Surveillance Camera Key Fetures
All-round security protection and deterrence
Prevention of crime and violations
The dome camera covers 360° blind areas in the car (such as front and rear doors, aisles, and seating areas), and real-time monitoring can significantly deter theft, harassment, vandalism and other behaviors, and reduce the incidence of public security incidents in the car.
Retention of accident evidence
High-definition video supports the judgment of accident liability (such as passenger injury caused by sudden braking, vehicle collision, etc.), providing objective evidence for the judicial department and reducing the cost of disputes.
Emergency response
In emergencies such as sudden disease and fire, the monitoring screen can assist the driver or dispatch center to quickly locate the problem and improve the rescue efficiency.
Optimize bus operation and service quality
Driver behavior supervision
Monitoring driving operations (such as whether to regulate parking, speeding, fatigue driving), combined with AI algorithms can warn of risks in real time and improve driving safety.
Passenger flow data analysis
Through the camera statistics of passenger flow during peak hours, auxiliary adjustment of departure interval, optimization of route planning, reduce congestion or no-load phenomenon.
Service dispute tracing
Record the real scenes of passenger complaints (such as refuse to take, poor service attitude) to provide a basis for internal assessment and improvement of the bus company.
1080P HD Dome Bus Surveillance Camera Main Specifications
| Camera | 1/2.9″ CMOS GC2063 | |
| Image Sensor | ||
| Horizontal Resolution | 3.0MP/2.0MP(default) | |
| Minimum Illumination | Color:0.01Lux/F1.2 | |
| S/N | ≥69dB(AGC OFF) | |
| Day and night switch | EXT(default),Support IR CUT switching | |
| Electronic Shutter | 1/25S～1/10000S | |
| IR LEDS Quantity | 12pcs LEDs | |
| IR distance | ≤8 meters | |
| Lens | Lens focal length 2.8mm | 2.8mm |
| Lens mount | M12*P0.5 | |
| Video Processing | Video compression standard | H.264/H.265 |
| Video resolution | Main stream: 2304x1296,1920×1080,1280×720；Sub stream:800x448 ,704x576,640x360,352x288 | |
| Video frame rate | 300W(30fps) | |
| Audio | Audio | G.711U,G.711A |
| Audio input | Built-in Mic | |
| Network Function | Network Protocol | Support: P2P,CGI,HTTP,TCP/IP,IPv4,RTSP,UDP,NTP,DHCP, DNS,IP Filter |
| Access Protocol | Support ONVIF Protocol | |
| Interface | Communication interface | 10/100M adaptable Ethernet interface, RJ45 |
| General Specification | Waterproof grade | IP65 |
| Operating Temperature | -20°C~+70°C | |
| Power Supply | DC12V±10% |

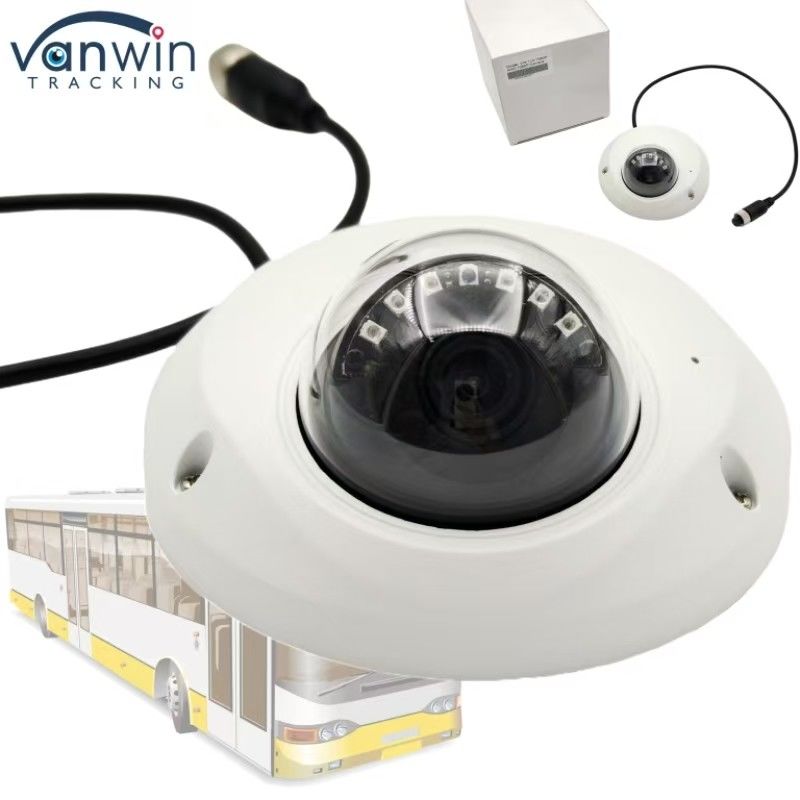

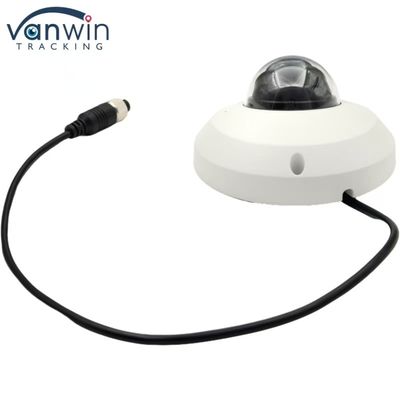

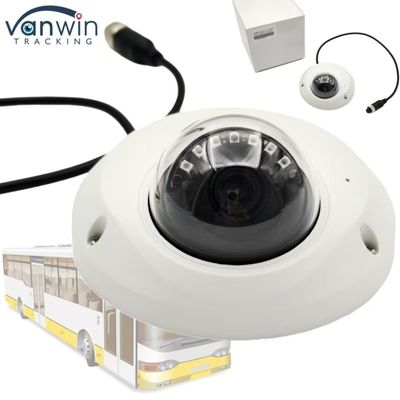

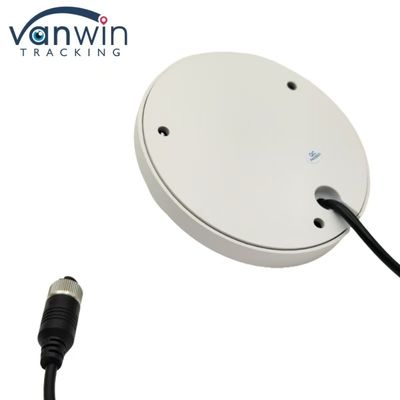

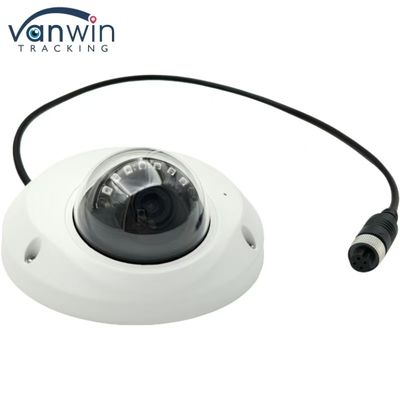

1080P HD Dome Bus Surveillance Camera Product Picture
1080P HD Dome Bus Surveillance Camera Application Scenarios
Our Industry Advantage
We specialize in the research, development, production and sales of advanced vehicle CCTV systems, ensuring our customers have access to the latest technology. Our professional QC team is committed to strict quality control and consistently delivers high-standard products. We have the honor of serving large companies around the world and customizing professional projects for global customers. Looking forward to the opportunity to work with you in the near future.
FAQ
1. Q: How do I install a vehicle camera on my bus?
A: We have detailed product installation and operation instructions to help you install and use this vehicle camera better and faster.
2. Q: Is this camera suitable for use on the subway?
A: Yes, this product is suitable for all large transport vehicles.
3.Do the camera systems work at night?
Yes - most of our cameras come with infra-red lights and all come with excellent night vision.
4. Q: Does your company support customized services?
A: Yes, we have provided customized solutions for many customers to meet their specific needs, with a customer satisfaction rate of 99%. If you have customized requirements for the vehicle monitoring system, please send it to us by email.
