Customizable 4 Channel 1080P Mobile DVR Recorder | 3G 4G GPS WiFi Bus & Truck Fleet Monitoring System

Product Details:

Place of Origin: Shenzhen,China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW9034BGS

Payment & Shipping Terms:

Minimum Order Quantity: 1 pcs
Price: negotiated
Packaging Details: Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs .
Delivery Time: 2-3 days for samples,15-30 days for large orders
Payment Terms: T/T or western Union or Paypal
Supply Ability: 50,000pcs per month;
Get Best Price Contact Now

Detail Information

Product Name:: 4G 3G Wireless MDVR GPS With Universal Tpms Tire Pressure Monitoring System Special Features: Display Rotate,sd/mmc Card,Bult In GPS,Real Time Surveillance,wifi Function,Parking Monitor,Speed And Coordinates Recording
Software: CMSV6 Power Input: 12V-36V
Customize: Support Video Formatv: PAL Or NTSC
Video Compression: H.264 Channel: 4 Channel
Camera Input Resolution: AHD1080P/720P/CVBS Preview: Support Single Channel And 4 Channelpreview
Storage Media: Dual SD, Max 512GB Menu Language: Chinese、English、other(can Be Customized)
Highlight:

1080P Mobile DVR

,

4CH Mobile DVR

,

3G Mobile DVR

Product Description

Customizable 4 Channel 1080P Mobile DVR Recorder | 3G 4G GPS WiFi Bus & Truck Fleet Monitoring System
Please note: This listing only includes the MDVR main unit; GPS, WiFi, and 4G functions are optional extras. Cameras, monitors, and other accessories are not included in this set. Should you require matching cameras, monitors, or other related accessories, please feel free to contact our sales team.
Challenge & Solutions
1. Multi-Scenario & Multi-Language Support

Challenge: Difficulty finding video recorders that support multi-scenario use and meet multi-language requirements across different regions.

Solution: This 1080P AHD 4CH MDVR features Linux OS with support for Chinese, English, Russian, and other customizable languages. Perfectly adapted for remote-control cars, buses, and RVs.

2. High-Definition Video Quality

Challenge: Blurry video footage, missed driving details, and inability to achieve multi-angle monitoring.

Solution: Equipped with H.265/H.264 video compression technology, supporting up to 4CH 1080P high-definition recording with 4-channel design for comprehensive monitoring coverage.

3. Remote Management & Control

Challenge: Inconvenient parameter setting and inability to view or operate remotely.

Solution: Graphical User Interface (GUI) for parameter setting via external display. Built-in 4G wireless transmission enables real-time video transmission to mobile devices.

4. Secure Data Storage & Playback

Challenge: Insecure video storage prone to data loss and cumbersome video search/playback.

Solution: Supports two SD cards (max 512G each) with bare disk storage method. Advanced search and multi-channel playback capabilities.

5. Safety & Alarm Systems

Challenge: Lack of effective alarm linkage and safety protection functions.

Solution: 4CH IO alarm input and 2-channel switch output supporting alarm linkage functions. Built-in GPS/BD module for real-time positioning and abnormal alerts.

6. Environmental Adaptability

Challenge: Poor adaptability to harsh environments and inadequate power protection.

Solution: Wide adaptive voltage input (DC:+12V ~ +36V) with comprehensive protection. Stable operation in -20℃ to +70℃ temperature range with low power consumption.

Product Specifications
Parameter Specification
Operating System Linux
Language Support Chinese/English/Russian/Others (customizable)
Video Compression H.265 H.264
OSD Character overlay function with date, time, and vehicle ID information
GUI Graphical User Interface for system parameter setting via external display
Video Input 4CH: 1080P, 720P, D1
Video Output 1 composite video output + optional VGA output
Preview Single channel, 2/4 screen splicing preview with manual/event triggered full screen display
Resolution Maximum support: 4*1080P 25 frames per channel
Video Quality 0-8 levels available (0 is best, 8 is lowest)
Record Mode Default automatic recording, supporting ignition recording, manual recording, alarm recording
Audio Input 4 or 8 channel aviation plug
Audio Output 1 channel
Audio Compression G.711A compression, 8KB/s speed
Alarm Input 4CH IO Alarm Input with pulse speed input and alarm linkage function
Alarm Output 2-channel switch output linked with sound/light alarm, oil/power outage
Communication Interface 1CH RS232 (expandable for POS, fuel sensor, LED screen, OBD) + 1CH 485 interface (for PTZ)
Wireless Transfer Built-in 4G network wireless transmission (TD-LTE, FDD-LTE)
Positioning Built-in GPS/BD module reporting to CMSV7 standard platform
SD Card Support for two SD cards (max 512G each) with simultaneous video streaming
Update Mode USB flash drive, SD card, FTP remote automatic upgrade
Storage Mode Exclusive bare disk storage method
USB Front USB interface for upgrade, backup, and USB mouse support
Video Search Search by record time/record mode
Video Playback Maximum 4 channels simultaneous replay with pause, fast forward, rewind (x2,x4,x8,x16)
Power Management Adaptive wide power input with overload, undervoltage, short circuit, reverse connection protection
Voltage Input DC: +12V ~ +36V
Voltage Output +12V@2.5A, +5V@2A
Power Consumption Normal Working <5W
Working Temperature -20℃ to +70℃
Working Humidity 20% to 80%
Safety Management Two level password access (user and administrator)
Size 15CM (D) * 14.7CM (W) * 4CM (H)
Net Weight 0.7 Kg
Product Images

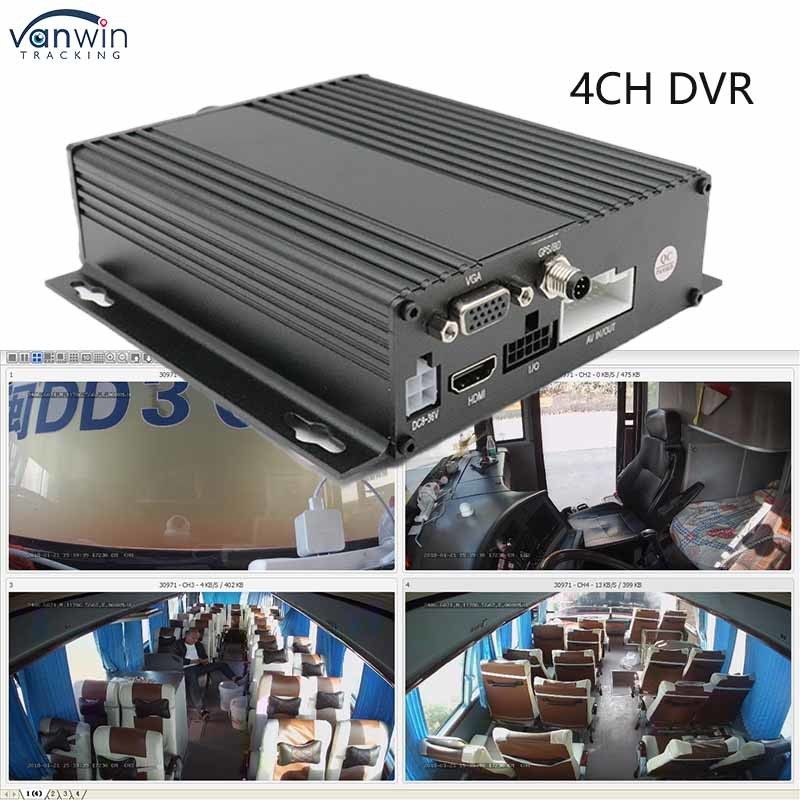

Customizable 4 Channel 1080P Mobile DVR Recorder | 3G 4G GPS WiFi Bus & Truck Fleet Monitoring System 0

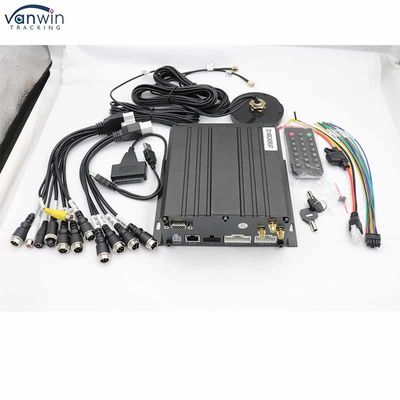

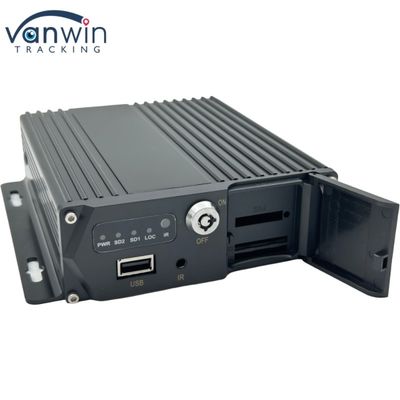

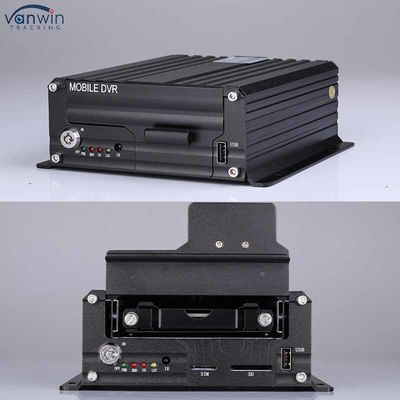

Customizable 4 Channel 1080P Mobile DVR Recorder | 3G 4G GPS WiFi Bus & Truck Fleet Monitoring System 1

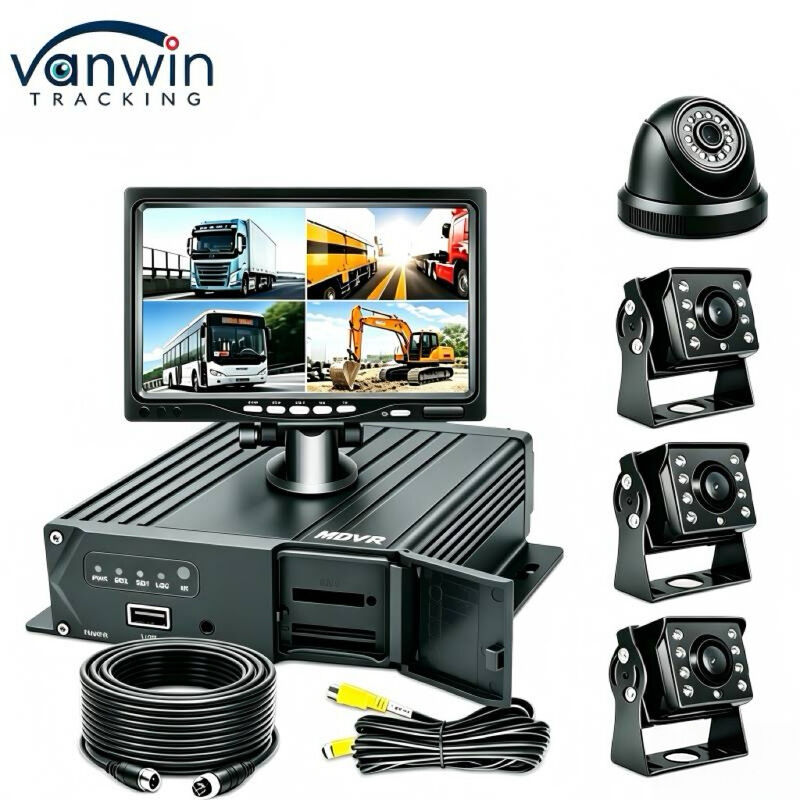

Customizable 4 Channel 1080P Mobile DVR Recorder Mobile DVR System Installation Example Vehicle Monitoring System Components
