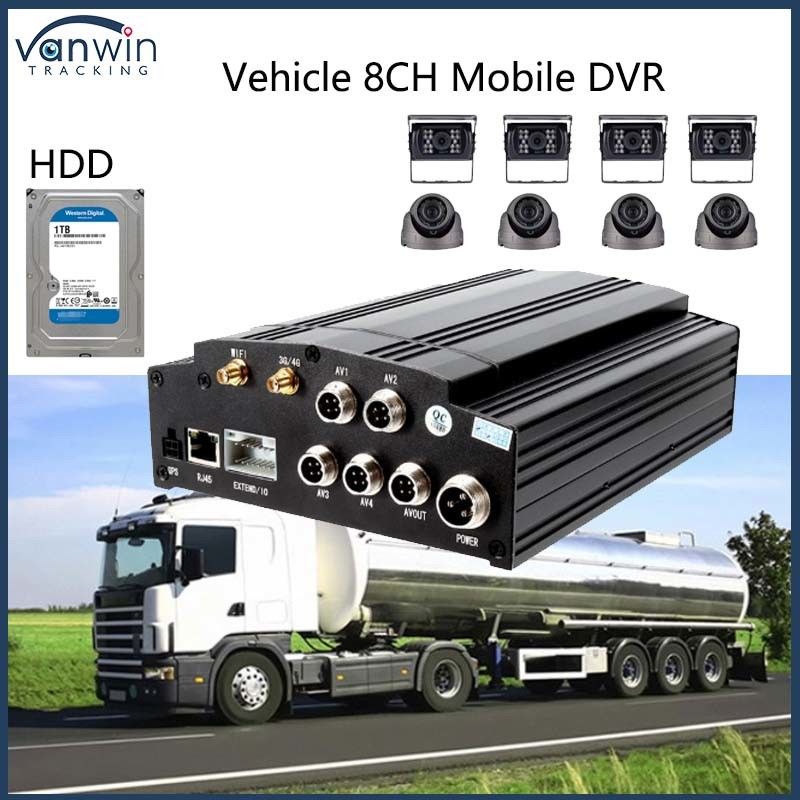

8CH Car 1080P H. 265 HDD Mobile DVR Truck MDVR Remotely Monitoring Vehicle MDVR
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE ROHS |
| Model Number: | VW9018B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | USD100-USD300 |
| Packaging Details: | Neutral package, carton box |
| Delivery Time: | 3-15days upon payment |
| Payment Terms: | T/T, Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Video Input: | 8 Channels AHD 1080P Video | Resolution: | Support 1080P/720P/D1/CIF |
|---|---|---|---|
| Type: | AHD HDD Mobile DVR | Wifi: | WIFI Optional |
| Power Input: | DC 8V~36V | GPS: | YES |
| 3G: | Supported | 4g: | 4G Optional |
| Language: | English/Chinese/Russian | Channel: | 4CH |
| Warranty: | 18 Months | Applicable To: | Sand Mining Vessels, Ship, Boats |
| Highlight: | 8CH HDD Mobile DVR,Truck HDD Mobile DVR,1080P HDD Mobile DVR |
||
Product Description
8CH Car 1080P H. 265 HDD Mobile DVR Truck MDVR Remotely Monitoring Vehicle MDVR
HDD Card Mobile DVR Product Feature
8-Channel 1080P Recording: Captures eight high-definition camera angles simultaneously (interior, exterior, cargo areas), ensuring no blind spots. Ideal for trucks, buses, and logistics fleets.
H.265 Compression: Advanced codec halves storage needs vs H.264, enabling longer recording on same HDD space. Loop recording prevents data loss, with quick access to critical footage.
Remote Monitoring via 4G/5G: Fleet managers stream live video, review playback, and receive real-time alerts (e.g., harsh braking, geofence breaches) on smartphones/PCs.
GPS Tracking & Analytics: Tracks vehicle location, speed, and routes; generates reports for route optimization and fuel savings.
HDD Card Mobile DVR Paramenters
| Operating System | Linux | |
| Language | English, Chinese or Customized language. | |
| Video Compression | H.264 | |
| OSD | Support time, date, vehicle ID, image, etc. | |
| GUI | OSD Interface | Can external connect to LCD and set the system specifications by remote |
| Video and Recording | Video Input | 6CH 1080P/720P AHD/Analog/Compound video input, aviation connector, 1.0Vp-p, 75Ω |
| Video Output | 1CH Compound video output with optional VGA output, 1.0Vp-p, 75Ω. | |
| Support 1CH full screen and 4CH division. | ||
| Preview | Single/4CH Pictures Preview, support full screen of event trigger or back view of car reversing | |
| Recording Resolution | Support 1080P/720P/D1/HD1/CIF, support at maximum 8 Channels 1080P | |
| Recording Quality | Optional Recording for Grade 0-7. 0 is the highest and 7 is the lowest. | |
| Video and Recording | Video Rate | PAL:100 fps,CCIR625line,50 scenes |
| NTSC:120 fps,CCIR525line,60 scenes | ||
| CIF:256Kbps - 1.5Mbps,8 grades image quality for optional | ||
| HD1:600Kbps - 2.5Mbps,8 grades image quality for optional | ||
| D1:800Kbps - 3Mbps,8 grades image quality for optional | ||
| 720P:800Kbps - 4Mbps,8 grades image quality for optional | ||
| 1080P:2Mbps -6Mbps,8 grades image quality for optional | ||
| Audio | Recording Mode | Default automatic video recording, support ignition video recording, schedule video recording, alarm video recording, etc |
| Audio Input | 6CH Aviation connector inputs | |
| Audio Output | 1CH Aviation connector output, Output level:1V - 2V | |
| Compression format | G.726, Speed for 8KB/s | |
| Alarm Input | 4CH level alarm inputs | |
| Alarm Output | 1CH level signal output | |
| Communication Interface | Optional for 1CH RS232 or 1CH RS485 | |
| Wireless Transmission | Support built-in 3G/4G wireless transmission, WCDMA, CDMA2000, TDD-LTE, FDD-LTE. | |
| Support expansion built-in/external WIFI transmission, compatible with GPRS, EDGE | ||
| Location /G-sensor | Support built-in GPS/BD module, built-in G-sensor, can analysis and playback for vehicle driving route | |
| Video Storage | Storage | Support a 2T 2.5 -inch HDD and 1 256G SD card storage |
| Upgrade Method | Support SD card local upgrade, remote upgrade automatically | |
| File Format | H.264 general video format | |
| File System | FAT32 exclusive file system | |
| Video Playback | Video Search | Search recorded video files by recording time and recording method |
| Playback | Support at max 4 channel synchronous playback, suspend, forward, backward | |
| Support 2/4/8/16 times speed forward or backward | ||
| Security Management | User Password or administrator password management, support screen locked | |
| Expansion functions | TTS Voice broadcast | Support TTS voice broadcast |
| Series port expansion | Support external equipment connecting for advertising screen, PTZ control, fuel sensor, etc | |
| Power and | Power Management | Self-adaptive wide voltage input, with protect functions for overload, undervoltage, short circuit, reversing connection, etc |
| Consumption | Support time setting startup/shutdown, delayed power off function | |
| Power and Consumption | Input Voltage | DC:+8V - +36V |
| Output Voltage | +12V/1.5A,+5V/1.5A | |
| Power-off Protection | UPS technology to protect all recorded information automatically and make sure the files undamaged in case of sudden power off. | |
| Consumption | Normal working < 14W, standby < 0.5W | |
| Working environment | Temperature | -20℃ - +70℃ |
| Humidity | 20% - 80% | |
| SD Card Type Series | Dimension | 150*137*60MM |
| Weight | 1.65KG | |

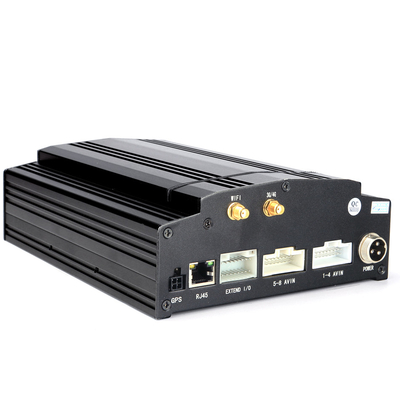

HDD Card Mobile DVR Product Picture
Application and installation
why did you choose us
With fifteen years of professional experience, we have provided different customized solutions to customers all over the world and are a supplier to many branded companies. Has a strong customization ability, can customize unique products according to customer requirements, one-stop to provide monitoring systems for different transportation, do not need to spend time to purchase matching equipment from other companies. The products of our company fully covered include hard disk video recorder, vehicle traveling data recorder, camera, display and expansion and other auxiliary equipment. Excellent quality, each product before the factory has gone through a series of strict production tests to ensure the stability of the product structure and reliable function. With the same quality, our prices are more favorable than brand companies, and many customers from Streamax or Hikvision Stonkam or Howen also buy from us. Our business experience, good at communication, love of work, careful patience, whole process orders will actively communicate with production department and customers confirmation details, personally check goods before delivery, to ensure that customers get the best product to use experience, is a very good partner.
