H.264 8 Channel MNVR With 4G WiFi Optional Vehicle GPS Tracker For Vehicle Support OEM
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW9028-IP |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Power Name: | 8 Channel Car Mobile NVR | Storage Card: | HDD(MAX 2TB)+SD Card(MAX 512G) |
|---|---|---|---|
| Vdieo Compression: | H264/H265 | Video Standard: | NTSC/PAL |
| Operation System: | Linux | Customized Logo: | Support |
| Modules: | 4G GPS WIFI Support | Mouse Operating: | Support |
| Certificate: | CE FCC RoHS | Recording Mode: | Video&Audio Recording Synchronously |
| Highlight: | Vehicle GPS Tracker MNVR,8 Channel MNVR,4G WiFi MNVR |
||
Product Description
H.264 8 Channel MNVR With 4G WiFi Optional vehicle GPS tracker For Vehicle Support OEM

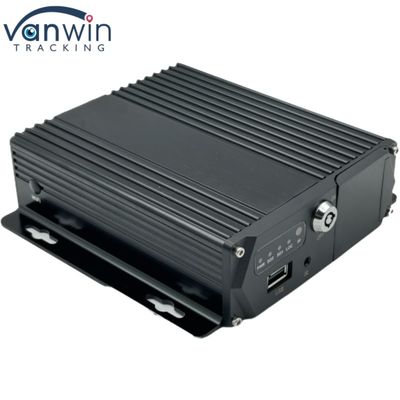

8 Channel Mobile NVR
High - Efficiency Encoding
The H.264 8 - channel MNVR (Mobile Network Video Recorder) uses H.264 encoding technology. This significantly reduces video file sizes while maintaining high - quality 1080P recordings, saving storage space and allowing for smoother data transmission.
Multi - Channel Surveillance
With 8 channels, it can connect to multiple cameras simultaneously. This provides comprehensive vehicle surveillance, covering different angles such as the front, rear, sides, and interior, ensuring no blind spots.
Flexible Connectivity
It offers 4G WiFi optional connectivity. The 4G option enables real - time remote access and monitoring, allowing fleet managers or vehicle owners to view live camera feeds from anywhere. WiFi connectivity simplifies local setup and data transfer.
Accurate Tracking
Equipped with a vehicle GPS tracker, it accurately records the vehicle's location, speed, and travel route. This is crucial for fleet management, security, and optimizing delivery schedules.
OEM Support
The MNVR supports OEM services, allowing customization according to specific customer requirements. Whether it's branding, software modifications, or hardware integration, it can be tailored to meet unique needs.
8 Channel Mobile NVR Main Specification
| Item | Description | |
| Model | VW9038B | |
| OS | Linux3.18 | |
| Operating | Cell phone APP, PC client, Remote controller | |
| Functions Summary | Preview, recording, playback, network transmission, positioning, AI analysis, multiple sensor data acquisition. | |
| Video and Preview | Video Input, Output,Signal standard | AHD input:4ch 1080p/25fps, 4ch 720p/25fps, 4ch D1/25fps, IPC input:1ch default, externally expandable 1-4ch, Output: 1ch CVBS default, VGA optional(1024x768) Signal standard:1.0Vp-p, 75Ω, NTSC/PAL optional |
| OSD | Character superposition function, information superposition of time and date, device ID and GPS, alarm,etc. | |
| Video Compression Format | Compression coding. Applying H264/H.265 hi-performance processor. | |
| Image quality | Code stream, frame rate optional | |
| Preview | 1/4/6/8/9 channel preview | |
| Resolution |
AHD: 1080P:25fps/1M/2M/4M/6M 720P: 25fps/1M/2M/4M/6M D1:25fps/512K/1M/2M IPC: 1080P: 30fps/1M/2M/4M/6M 720P: 30fps/1M/2M/4M/6M |
|
| Audio | Audio Input, Output | 4ch analog audio input, 1ch mic input; 2ch audio output. 2.0Vp-p, 4.7kΩ |
| Compression Format | G.711A, G.726 | |
| Recording | Storage Medium | Supporting one 2.5” SATA hard drive and one SD card |
| Video Strategies | Recording at start up by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | |
| Alarm pre-recording | 0-60min | |
| Alarm recording delay | 0-30min | |
| Playback channel | Support local 1/4/6/8 channel playback | |
| Browse mode | Time, channel, event. | |
| Communication Ports | ||
| Position | GPS/BD: Positioning, speed detection, time synchronization | |
| Power Supply and Power Consumption | Power Supply | 1ACC on/off |
| Input Voltage | DC:+8V ~ +36V | |
| Output Voltage | +12V@1A; +5V@1A | |
| Power Consumption | Max 25W consumption, about 0W in standby mode | |
| Operating Environment | Temperature | preheating: -20℃ ~ +70℃ |
| Humidity | 8% to 90% | |
| Dimensions | 324.6x238x116 mm. | |
| Weight | Net: 2KG | |

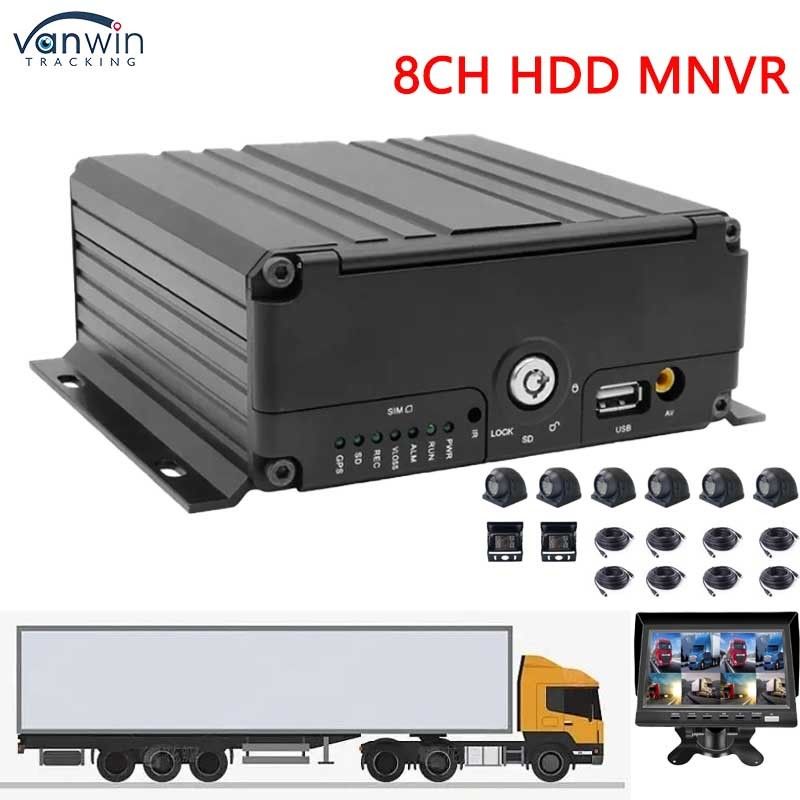

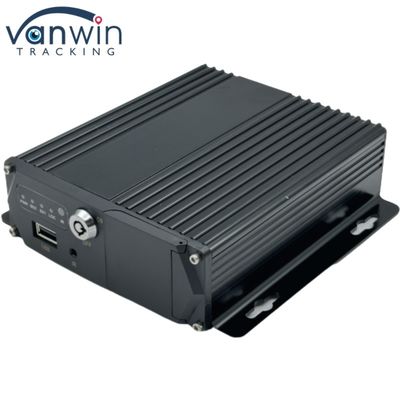

8 Channel Mobile DVR Products Details
8 Channel Mobile N VR Applications:
