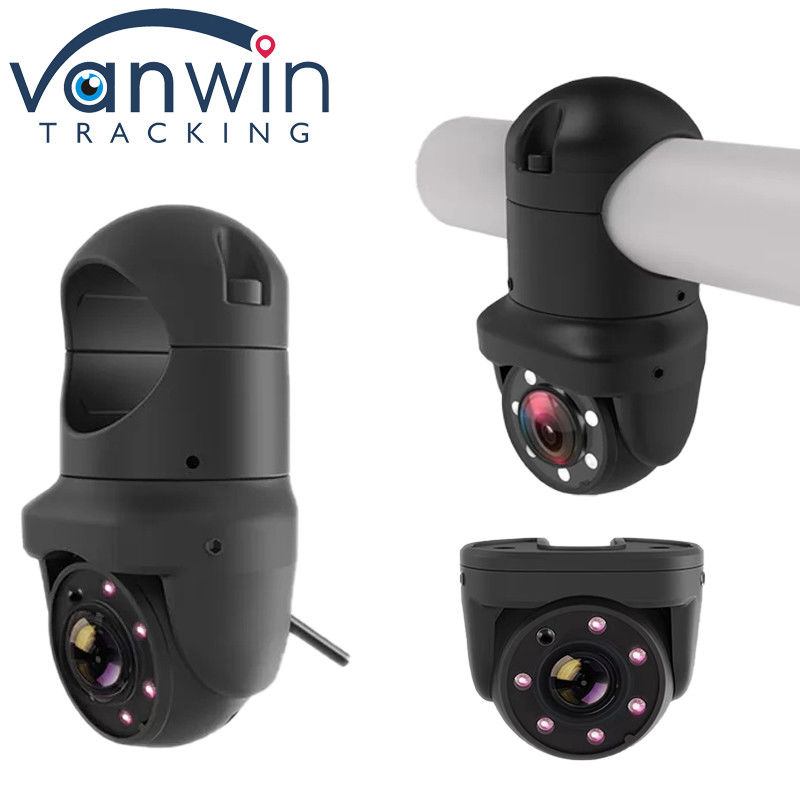

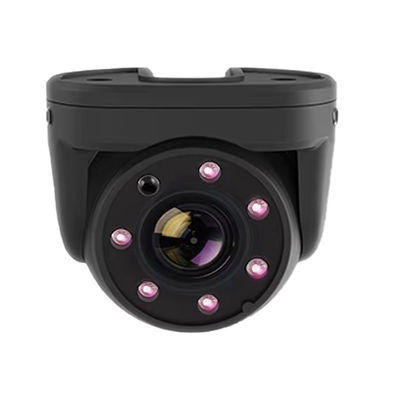

1080P AHD IP69K Waterproof Camera Wide Night Vision Car Dome Camera
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-773 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 500pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Car Make: | Truck, Bus, Heavy Duty, Trailer And Ect. | Truck, Bus, Heavy Duty, Trailer And Ect.: | Waterproof, Dustproof |
|---|---|---|---|
| Waterproof: | IP69K | IR Lights: | 6 IR Lights |
| Dimensions: | 47.8*41.9*42.2(mm) | Viewing Angle: | 120°/150°/170°/other |
| Sensor: | CMOS And CCD | Highlight: | Waterproof Dome Camera,1080P AHD Car Dome Camera |
| Highlight: | 1080P AHD Car Dome Camera,Wide Night Vision Car Dome Camera,IP69K Waterproof Car Dome Camera |
||
Product Description
1080P AHD IP69K Waterproof Wide Night Vision Car Dome Camera
★ Support Coaxial HD output, high resolution achieve to 720P/960P/1080P
★ 3M IR Distance, Auto color to black switching function,achiveing the day and night surveillance
★ super wide angle 170°,no adjustment, no blind spot
★ Conform to IP69K waterproof grade desigh, high reliability

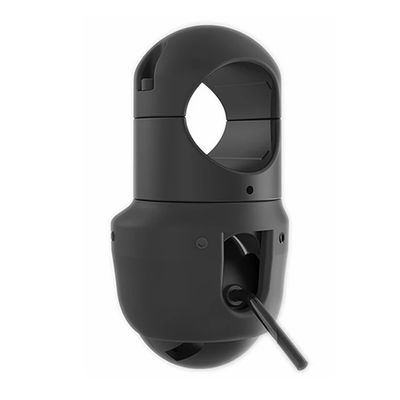

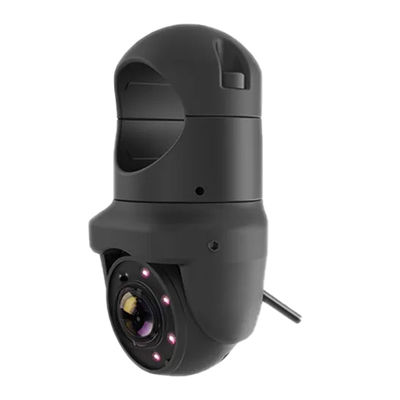

★ Side view camera which with mirror arm mount bracket and without drilling installation, commonly use in school bus,van, harvester, excavator etc
| Product Technical Parameters | |||
| Image sensor | CMOS | Starlight CMOS | CMOS |
| Horizontal Resolution | 1.3Megapixel | 1.3Megapixel | 2.0Megapixel |
| TV system | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Effective Pixel | 1280(H)*960(V) | 1280(H)*960(V) | 1920(H)*1080(V) |
| Minimum Illumination | Color 0.1Lux,0 Lux with IR | Color 0.01Lux,0 Lux with IR | Color 0.05Lux,0 Lux with IR |
| S/N ratio | ≥45dB | ≥60dB | ≥56dB |
| Day/Night mode | EXT(default),AUTO,COLOR,B/W,Support IR CUT switching | ||
| sync system | Internal | ||
| Backlight compensation | AUTO | ||
| White balance | AUTO | ||
| Electronic shutter | AUTO/1/50(1/60)-1(50,000Sec) | ||
| WDR function | ﹨ | Digital WDR | ﹨ |
| Video output | AHD(default)Standard,720P output | AHD(default)Standard,1080P output | |
| lens | 170°/150°/120°/More optional | 150°/120°/More optional | |
| IR leds Qty | 6pcs LEDs | ||
| IR distance | ≤3 meters | ||
| waterproof grade | IP69K | ||
| Operating Temp. | -20°C~+70°C, RH95%MAX | ||
| Storage Temp | -30°C~+80°C, RH95%MAX | ||
| Power supply | DC12V±10% | ||
| Power consumption | ≤2W | ||
| Dimension | 47.8*41.9*91.4(mm) | ||
How to connect the Car Camera?
FQA
Q: What is the MOQ ?
A: 10 peice
Q: What are the characteristics of your products?
A: Our cameras can provide private model customization, and our cameras have multiple wide-angle angles.
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 15 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
