IP69K AHD Rearview Surveillance Camera , 12 Infrared Night Vision Vehicle Camera
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-346 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Chip Mode: | AHD Camera/CMOS /SONY CCD | Voltage: | DC 12V/24V |
|---|---|---|---|
| Service: | OEM/ODM | TV System: | PAL Or NTSC |
| Angle: | Wide Angle 150° | Minimum Illumination: | 0.01LUX/F1.2 |
| Connector: | 4 PIN Or RCA BNC Connector | Test Time: | Over 48 Hours |
| Highlight: | 12 Infrared Night Vision Vehicle Camera,IP69K Rearview Surveillance Camera |
||
Product Description

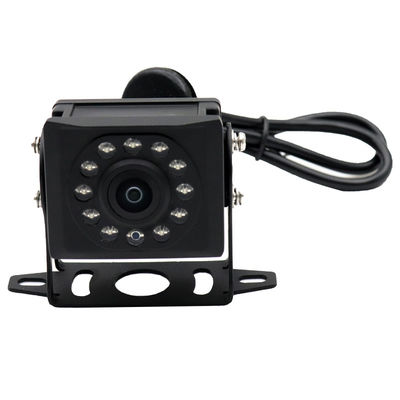

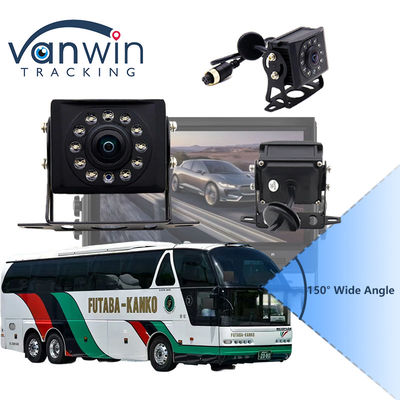

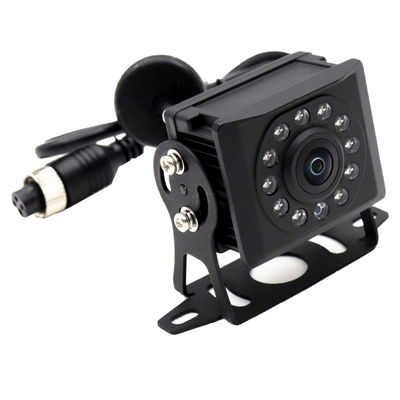

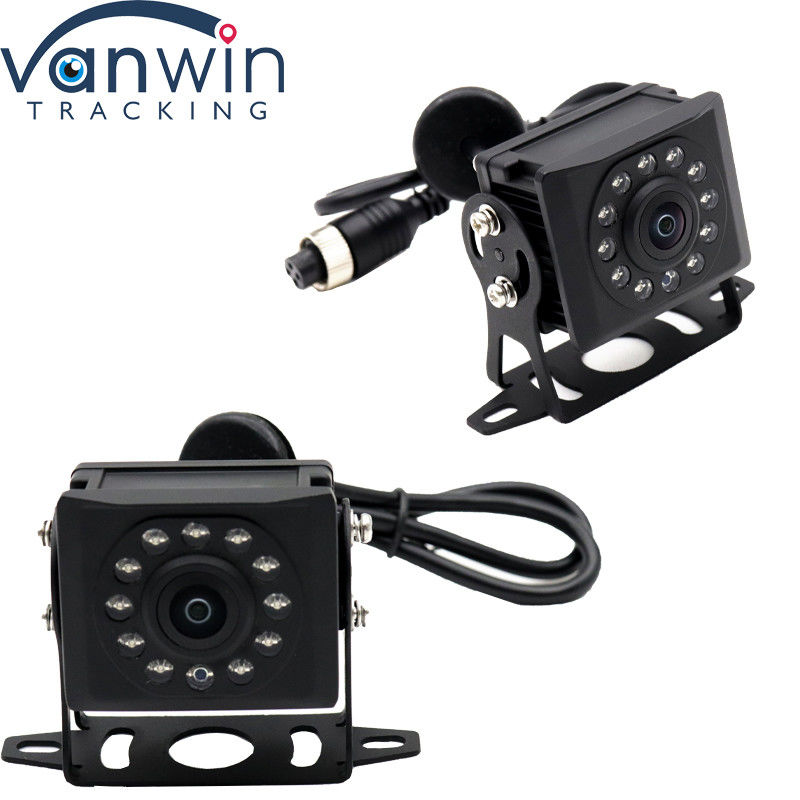

IP69K AHD Rearview Surveillance Camera With 12 Infrared Night Vision For Vehicle Camera
|
Feature
|
Bus Track VAN Cameras
|
|
Image Type
|
1/3" 1/4 Color CCD/CMOS
|
|
Night vision
|
With IR lamp
|
|
LED
|
18pcs
|
|
TV System
|
NTSC/PAL
|
|
Lens Angle (Deg.)
|
140 degree
|
|
IP Rating
|
IP69K
|
|
Connector
|
4P connector or RCA connector for selection
|
|
Effective Pixels
|
648*512 /640*480
|
|
Horizontal Resolution
|
420TVL/600TVL
|
|
B.L.C
|
Back light Compensation (Auto)
|
|
White Balance
|
Auto White Balance (Auto)
|
|
Minimum Illumination
|
0Lux (LED ON)
|
|
S/N Ratio
|
≥48dB
|
|
Electronic Shutter
|
1/60~1/100,000 Sec
|
|
Power consumption
|
<3W
|
|
Built-in Lens
|
f:1.8mm
|
|
Power Consumption
|
DC 5-20V
|
|
Audio
|
without
|
|
Operation Temperature
|
-30℃~+70℃.RH95% Max
|
|
Storage Temperature
|
-40℃~+80℃.RH95% Max
|
|
Certificate
|
FCC,CE,ISO9001,IATF16949, RoHs
|
|
Weight/Package
|
4Pin connection diagram:0.3KG
|
Advanced Night Vision: Utilizes cutting-edge infrared technology to deliver crisp, detailed imagery in complete darkness without requiring ambient light.
High-Definition Clarity: 1080p resolution captures intricate details for vivid monitoring and precise identification.
Wide-Angle Coverage: 120° ultra-wide lens eliminates blind spots, enabling comprehensive surveillance of large areas with a single device.
Rugged Durability: IP67-certified housing ensures reliable performance in extreme temperatures, rain, or dust.
Smart Motion Alerts: Built-in sensors trigger instant app notifications for critical security events.
Effortless Connectivity: Quick setup via intuitive mobile app, supporting real-time remote access on iOS/Android devices.
FAQ
Q1.How does the night vision feature work?
The night vision feature utilizes infrared LEDs to illuminate the area, allowing the camera to capture clear images even in complete darkness, up to 30 meters away.
Q2.Is the camera easy to install?
Yes, the camera is designed for straightforward installation. It can be mounted on various surfaces and comes with detailed instructions for setup.
Q3.What resolution does the camera support?
The camera supports 1080p Full HD resolution, providing high-quality images for monitoring and recording.
Q4.Can I connect the camera to my smartphone?
Yes, the camera can connect to your smartphone or vehicle display for real-time monitoring, allowing you to view live footage from anywhere.
Q5.What types of vehicles is this camera suitable for?
The IP69 Night Vision Car Security Camera is versatile and can be used on cars, trucks, vans, and even motorcycles.
Q6.Does the camera have a warranty?
Most models come with a limited warranty. Please check with the manufacturer for specific warranty details.
Q7.What power supply does the camera require?
The camera operates on a DC 12V power supply, which is standard for most vehicles.
Q8.How do I maintain the camera?
Regularly clean the lens and ensure that the mounting area is secure. Avoid exposing the camera to extreme temperatures beyond its specifications.
Q9.What should I do if the camera is not functioning properly?
If the camera is not working, check the power supply and connections. If the issue persists, refer to the troubleshooting guide or contact customer support for assistance.
