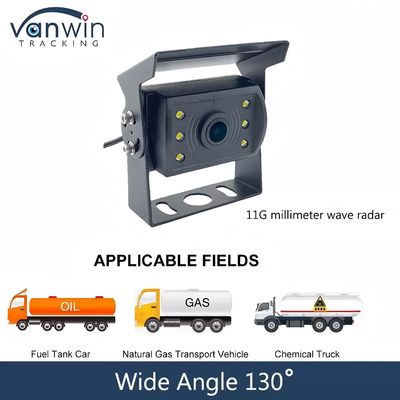

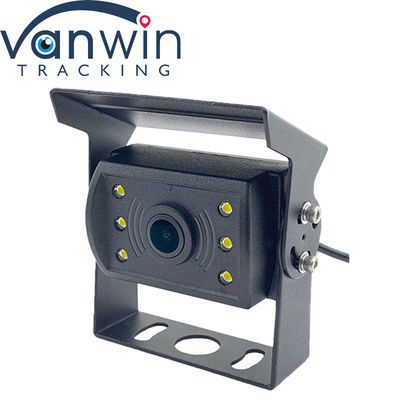

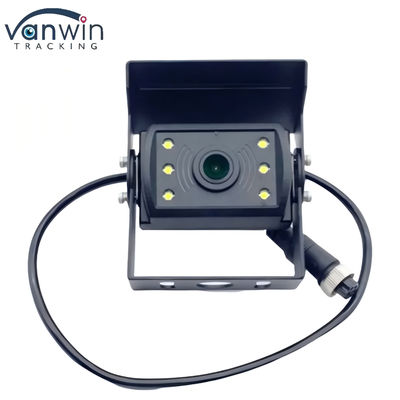

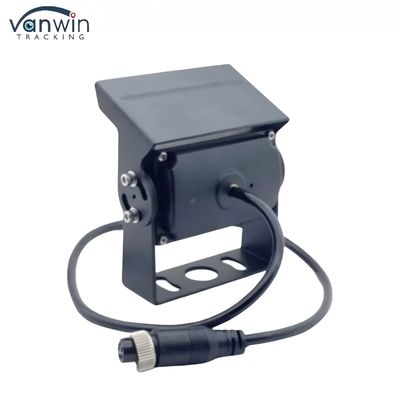

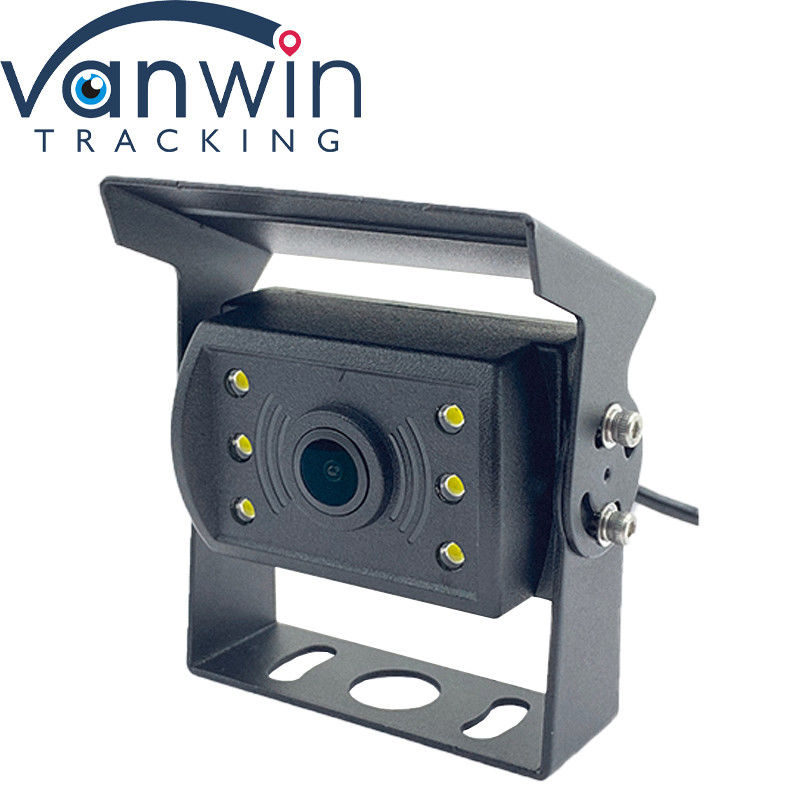

Waterproof Rearview Monitoring System 11G 1080P HD Backup Camera with Night Vision Enhancement
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-88 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or Western Union or Paypal |
| Supply Ability: | 5,000pcs per month; |
|
Detail Information |
|||
| Sensor: | 1/2.7”CMOS | System: | PAL/NTSC |
|---|---|---|---|
| Angle: | Wide Angle 130° | Lens: | 2.7mm |
| Operating Temperature: | -30℃~70℃ | Feature: | 11G MM Radar Wave |
| Power Consumption: | DC 5-25V | Warranty: | 12 Months |
| Highlight: | Night Vision Rearview Monitoring System,1080P Rearview Monitoring System,11G Rearview Monitoring System |
||
Product Description
Waterproof Rearview Monitoring System 11G 1080P HD Backup Camera with Night Vision Enhancement
Core Technological Innovations
1. Ultra-High Precision Detection & Dynamic Sensing
-
Sub-centimeter Ranging Accuracy: Utilizes FMCW (Frequency-Modulated Continuous Wave) technology to achieve ±2cm ranging error within 0.1-30m (5x more precise than traditional ultrasonic radar ±10cm).
-
Multi-Target Tracking Matrix: Simultaneously processes 32 dynamic target trajectories (including velocity vector analysis), resolving relative speeds with ±0.1 km/h accuracy via Doppler shift principles.
2. All-Weather Operational Reliability
-
Anti-Interference Reinforcement: Maintains system false alarm rate <0.5‰ under extreme conditions (rainfall ≤50mm/h, fog visibility ≤10m, airborne particulate concentration ≥15mg/m³) through polarized filtering and adaptive waveform coding.
-
Wide-Temperature Compensation: Equipped with radar thermal management (PT1000 sensor + active cooling) to ensure signal stability (frequency drift ≤0.01ppm/°C) across -20°C to 70°C environments.
3. Multi-Sensor Synergy
-
Multi-Source Data Fusion: Spatiotemporally synchronizes millimeter-wave point cloud data (100Hz sampling rate) with visual feed (60fps) to construct 3D environmental models (fusion error <5cm).
-
Blind Zone Compensation Algorithm: Predictive obstacle detection system based on Bayesian probability modeling, with a 300ms preemptive time window.
Key Advantages Highlight
-
Military-Grade Durability: Validated under MIL-STD-810G vibration and shock standards.
-
Adaptive Algorithm Updates: Over-the-air (OTA) firmware upgrades for evolving operational demands.
-
Energy Efficiency Optimization: Low-power design (standby consumption <0.5W) compatible with 12V/24V vehicle electrical systems.
Model Number VW-88 Photosensitive Chip 1/2.7" CMOS System Standard PAL / NTSC Effective Pixel 1920(H)x1080P(V)/1280(H)x720(V)/CVBS Noise Reduction 3DNR Focus Distance 2.7mm Lens Structure 2G2P Field Angle 131°(H) / 70°(V) Fill Light Mode LED Connector Length 0.5M Interface Type M12 Aviation Plug Operating Voltage DC 5V-55V Maximum Power 2W Operating Temperature -30℃~70℃ Dimension 75mm x 61mm x 77.25mm
FAQ
1.Q: How do I install this car camera on my truck?
A: We have detailed product installation and operation instructions to help you install and use this car camera better and faster.
2.Q: Is this camera suitable for use on crane?
A: Yes, this product is suitable for use in various industrial machinery.
3.Q: Does your company support custom service?
A: Yes, we have provided many clients with customized solutions to solve their specific needs, with a customer satisfaction rate of 99%. If you have a customized request for the vehicle monitoring system, please send it to us by email.
