7 Inch High Resolution 1024x600 Resolution Car TV Monitor With HDMI Connector for MDVR
Product Details:
| Place of Origin: | Shenzhen,Guandong |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-M706HDMI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T,Western Union,Paypal; |
| Supply Ability: | 5000 pcs per month; 7 Inch High Resolution 1024x600 Resolution Car TV Monitor With HDMI Connector for MDVR |
|
Detail Information |
|||
| Power Supply: | 12V-24V DC Optional | Resolution: | 1024*R.G.B*600 |
|---|---|---|---|
| Compatible System: | NTSC & PAL (automatically) | Material: | Plastic And Metal |
| Screen Size: | 7inch IPS | Video Input: | 2CH Input, 1CH HDMI&1CH AV |
| Support: | Vga/video Input Optional,OEM And ODM | Car Make: | Universal Vehicles, Bus, Truck, Other Special Vehicles |
Product Description
7 Inch High Resolution 1024x600 Resolution Car TV Monitor With HDMI Connector for MDVR
Main Specifications:
- 7"inch AV HDMI car monitor
- Resolution:1024*R.G.B*600 ,Brightness:500cd/m2
- View angle:L/R: 85°,UP:85°,down: 85° degree
- All the way HDMI input,2 way video input,
- 2 way audio input,HDMI audio input
- All the way VGA input(Optional)
- Automatically switch to V2 when reversing
- HDMI input:Supports 720P / 1080I /1080P/CVBS image input
- Video frame rate:720P/1080P:25f/s,30f/s/D1: 25f/s
- with light sensor receiver,can adjust screen brightness automatically day & night
- Power supply:DC 9V-36Vinput,12V output
- High-low voltage protection&short circuit protection
- Working temperature:-20℃ to 70℃
- Storage temperature:-30℃ to 80℃
- Apearance color: black rubber paint
- RCA/ 4pin connector (Optional)
- standard:Metal U type bracket, Detachable sunshade /Butterfly bracket/fan bracket/Suction Cup holder/Headrest frame (optional)
|
Model
|
VW-M706HDMI
|
|
Screen
|
7 inch 16:9
|
|
Resolution
|
1024*R.G.B*600
|
|
Back Light Luminance
|
LED, 500cd/m2
|
|
View angle
|
L/R: 180°
UP/Down: 180° |
|
Video Input
|
1CH HDMI and 1CH AV input |
|
System
|
PAL & NTSC auto-switching
|
|
Power supply:
|
DC 12V-36V input,12V output
|
|
Protection Setting
|
High-low voltage protection & short circuit protection
|
|
Working temperature
|
-20℃ to 70℃
|
|
Storage temperature
|
-30℃ to 80℃
|
|
Housing:
|
Plastic & With Black Rubber Painted
|
|
Accessories
|
Metal U type Bracket & Detachable Sunshade(Default)
Butterfly Bracket/Fan Bracket/ Suction Cup Bracket (optional) |
|
Cable Connector
|
RCA / 4pin connector (Optional)
|
|
Dimension
|
180*121*26(75)mm
|
Product Details
Product Size
Packaging & Shipping
1. Box can be color box, white box, OEM

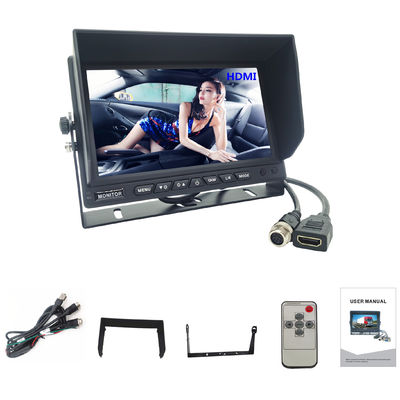

2. Package includes power line, bracket, remote controller, headrest frame, insert card and user manual.
3. Goods will be shipped out within 2~7 days after the receipt of payment.
About US
We are professional manufacturer of 4ch/8ch mobile dvr system with monitors, cameras.They are used for vehicle fleeting management and safety monitoring.The full system are very necessary for buses , truck, school buses,tailer,police cars, bank money carrying cars and so on.
3G remote viewing real time monitoring function let you see what drivers and passengers are doing, where they are with GPS tracking.
Welcome you to test our Quality.
