Mini AHD 1080P Waterproof Front Side Rear View Camera Night Vision 170° Fisheye Lens Car Reverse Backup Cam
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE, FCC, RoHs |
| Model Number: | VW-530 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | $6-$18 |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for small order, 7-15 days for big order |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Product Name: | Vehicle Hidden Night Vision Car Camera | Special Function: | Small, Lens Adjustable |
|---|---|---|---|
| Housing: | Plastic | Viewing Angle: | 170° |
| Night Vision: | Yes | Style: | Car/ Taxi Camera |
| Resolution: | 720P/1080P | Warranty: | 12 Months |
| Voltage: | DC12V | Signal Format: | NTSC / PAL |
| Highlight: | Night Vision Car Reverse Backup Cam,Waterproof Front Side Rear View Camera,Fisheye Lens Car Reverse Backup Cam |
||
Product Description
Mini AHD 1080P Waterproof Front Side Rear View Camera Night Vision 170° Fisheye Lens Car Reverse Backup Cam

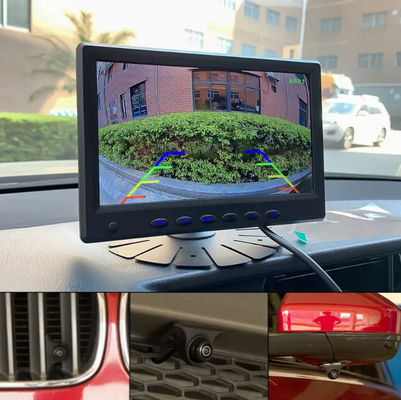

*The HD camera can rotate 360 degrees, and the image angle can be adjusted up/down 45 degrees. It can solve the problem of image offset and image angle deviation caused by the installation position. Suitable for car front/rear/left/right installation positions. It supports upside down installation.
*AHD1080P parking camera: 1920*1080P resolution, high definition, IP68 waterproof, works normally in car wash or bad weather, fantastic starry sky night vision effect.
* Real fisheye 6 glass lens, 170-degree wide viewing angle, no blind spots, automatic image calibration function to prevent
spherical images, making reversing safer.
*Supports AHD and CVBS video signals --- This car rearview camera can be used with AHD monitors. Its output video signal defaults to AHD1080P. If you need to connect a CVBS monitor, please cut the brown cable on the camera and reconnect the power supply.
Product Specifications
* The Camera fit for Front /Rear/Left/Right installation location for Car.* Chips components : SC 1346.
Support Front Rear Mirror Image Control.
* Viewing angle: Fisheye 6 glass lens. Real 170 degrees viewing angle, no worry about blind spot area, IP68 waterproof.
* Effective pixels: AHD1920*1080P, CVBS 1280*720P.
* Signal format: NTSC / PAL
* Image resolution: 200W Pixels
* Video output: AHD Video Signal or CVBS Signal .
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Back light Compensation.
* Lens : 14/16MM Fisheye 6 glass Lens.
* Low illumination: 0.01Lux
* Signal to noise ratio: ≥69dB
* Working power supply: DC12V~24V/2A
* Working temperature: -20 °C ~ +70°C
* Maximum power: 3W

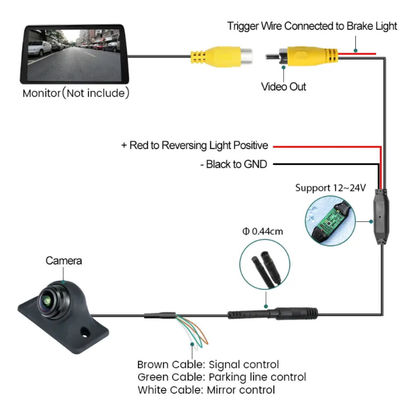

Installation Steps:
2. Connect the power cord to the backup light or brake Light or Left/Right signal light power supply.
3. Connect the 6m extension cable of the parking camera to the head unit/other monitor of the car.
4. Start the vehicle and reverse gear to test the camera.
5. Reinstall the console/other monitor.
Applications:
Vanwin Tracking is proud to present our latest product - the VW-530 Vehicle Hidden Camera. As a leading manufacturer of vehicle surveillance systems in Shenzhen, China, we have designed this product with the highest quality and standards to meet the needs of our customers.
The VW-530 Vehicle Hidden Camera is perfect for small cars and taxis. It is a discreet and compact camera that can be easily installed in any vehicle. Its small size and high resolution make it ideal for capturing clear footage in any situation.
- Small Back Up Camera: The VW-530 is a small camera that can be easily hidden in your vehicle. It takes up minimal space, ensuring a clutter-free and neat installation.
- HD Mini Car Cameras: With a 1080P resolution, this mini car camera provides high-quality footage. It captures clear and detailed images, making it perfect for recording any incidents on the road.
- Car Hidden Camera: The VW-530 is designed to be discreet and hidden. It is not easily noticeable, making it perfect for monitoring your vehicle without drawing attention.
- Vehicle Surveillance Camera: This camera is not just for recording, but also acts as a surveillance camera. It can monitor your vehicle 24/7 and capture any suspicious activities.
- Car Dash Camera: The VW-530 can be easily mounted on your car's dashboard. It provides a wide viewing angle of 110°, ensuring that the camera captures a larger area.
- Car Black Box Camera: With its high-resolution footage and continuous recording, the VW-902 acts as a black box for your vehicle. It can provide evidence in case of any accidents or incidents on the road.
- Car Hidden Camera System: The VW-530 is not just a camera, but a complete hidden camera system. It comes with all the necessary components for installation and can easily be connected to your vehicle's power source.
- Car Camera System: This camera system is designed to provide convenience and security to vehicle owners. It is a must-have for anyone looking to monitor their vehicle.
FQA:
- Q: What is the brand name of this product?
- A: The brand name of this product is Vanwin Tracking.
- Q: What is the model number of this product?
- A: The model number of this product is VW-530.
- Q: Where is this product made?
- A: This product is made in Shenzhen, China.
- Q: What certifications does this product have?
- A: This product is certified by CE, FCC, and RoHs.
- Q: What is the minimum order quantity for this product?
- A: The minimum order quantity for this product is 5pcs.
- Q: What is the price range of this product?
- A: The price range for this product is $6-$18.
- Q: How is this product packaged?
- A: This product is packaged in a neutral carton box by default.
- Q: What is the delivery time for this product?
- A: The delivery time for small orders is 2-3 days and for big orders is 7-15 days.
- Q: What are the payment terms for this product?
- A: The payment terms for this product are Western Union, T/T, and Paypal.
- Q: What is the supply ability for this product?
- A: The supply ability for this product is 50,000pcs per month.
