1080p Blind Spot Detection Camera BSD Car Reversing Aid Pedestrian Vehicle Detection Built in Algorithm Audible Alarm
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-236BSD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for bulk orders |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 50,000pcs per month |
|
Detail Information |
|||
| Minimum Illumination: | 0.01LUX/F1.2 | Color: | Housing Black |
|---|---|---|---|
| Storage Temperture: | -40℃ - 75℃ | Custom Support: | OEM ODM |
| Len Angle: | 130 Degrees | Video Compression Format: | H.264/H.265 |
| Waterproof Grade: | IP69K | Connertor: | 4 Pin |
| Ir Lights: | 6 IR Lights | Sensor: | CMOS / CCD |
Product Description

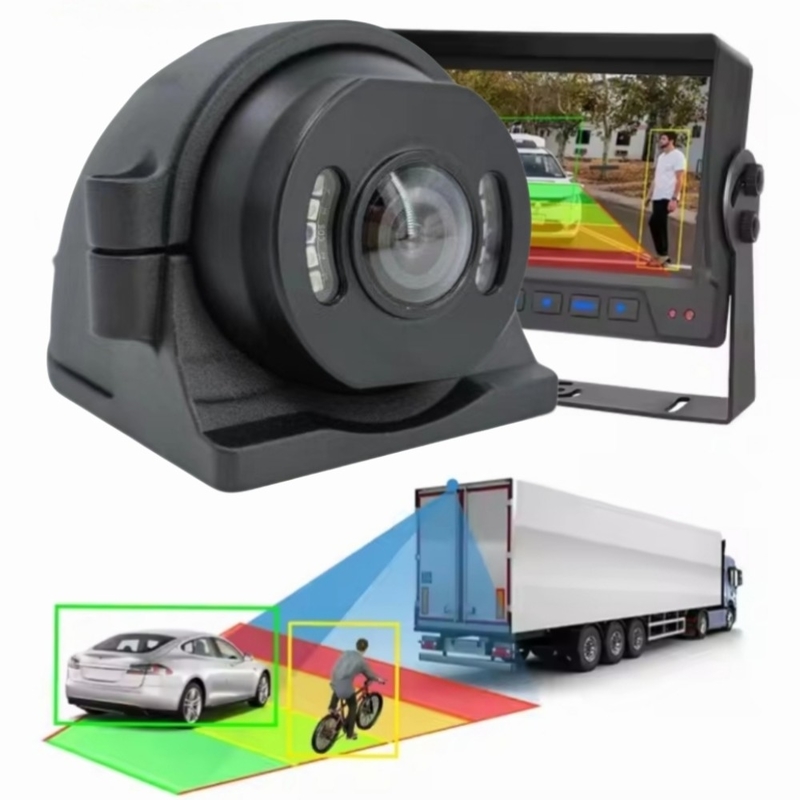

BSD Camera With Built-in Algorithm
The BSD (Blind Spot Detection) Camera with Built-in Algorithm is a cutting-edge vision system designed to revolutionize safety and operational efficiency in automotive, industrial, and smart infrastructure applications. Combining high-resolution imaging with advanced embedded AI, this camera delivers real-time object detection, collision avoidance, and environmental awareness—all processed locally for zero latency and maximum reliability.
BSD Camera Specifications:
| Sensor | Sony STARVIS™ CMOS (1/2.8") |
| Resolution | 1080p (1920×1080) or 4K (3840×2160) |
| Frame Rate | Up to 60 FPS |
| Dynamic Range | >120 dB HDR |
| Field of View (FOV) | 150° ultra-wide angle |
| Lens Aperture | f/1.6, 6G+IR glass |
| Low-Light Performance | 0.01 lux (color) / 0.001 lux (B&W, IR-cut removed) |
| Processing | |
| Processor | Dual-core ARM Cortex-A53 + Neural Processing Unit (NPU) |
| AI Compute Power | 2 TOPS (Tera Operations Per Second) |
| Latency | <50 ms end-to-end processing |
| Pre-installed Algorithms | Blind spot detection, pedestrian/vehicle tracking, obstacle recognition |
| Custom Algorithm Support | Yes (via SDK/API) |
| Connectivity | |
| Interfaces | CAN, LIN, Ethernet (PoE support) |
| Data Output | RTSP, ONVIF, TCP/IP |
| Wireless Options | Optional Wi-Fi/4G/5G module (add-on) |
| Power & Environment | |
| Power Supply | 12-24V DC |
| Power Consumption | <3W (low-power mode), <5W (full operation) |
| Operating Temperature | -30°C to +85°C |
| Protection Rating | IP69K (dust/waterproof) |
| Vibration Resistance | MIL-STD-810G compliant (up to 5Grms) |
| Software & Security | |
| Configuration Tools | Mobile app, PC software |
| Firmware Updates | OTA (Over-the-Air) support |
| Data Security | AES-256 encryption, secure boot |
| Certifications | CE, FCC, ISO 16750 (automotive), RoHS |
| Physical | |
| Dimensions | 90mm × 60mm × 40mm (compact housing) |
| Weight | 300g |
| Mounting | Adjustable bracket (included) |
| Warranty & Support | 2-year warranty, 24/7 technical support |

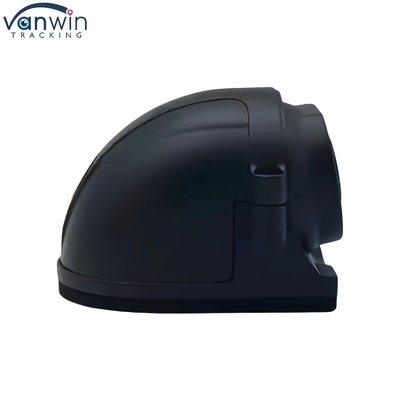

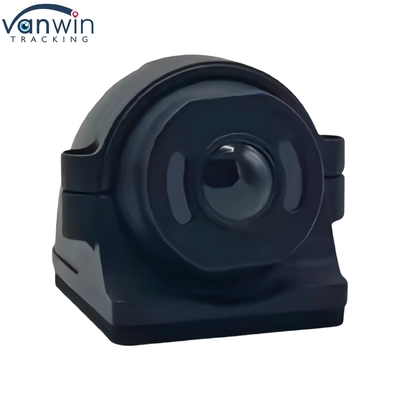

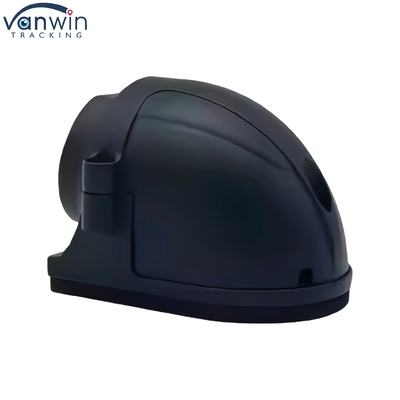

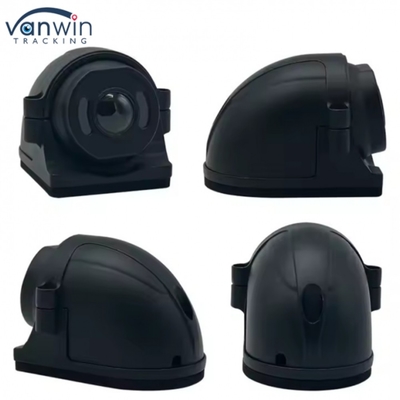

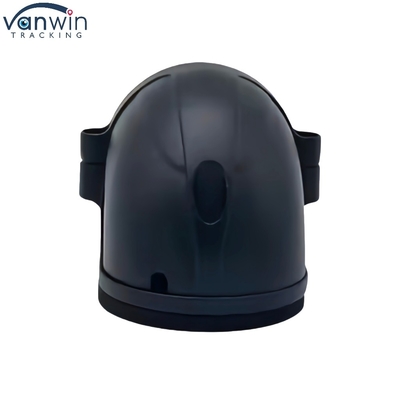

BSD Camera Product Pictures
