BSD Camera Advanced Vision System for Automotive and Industrial Applications
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-236BSD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for bulk orders |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 50,000pcs per month |
|
Detail Information |
|||
| Custom Support: | OEM ODM | Waterproof Grade: | IP69K |
|---|---|---|---|
| Connertor: | 4 Pin / RCA | Sensor: | CMOS / CCD |
| Len Angle: | 130 Degrees | Minimum Illumination: | 0.01LUX/F1.2 |
| Storage Temperture: | -40℃ - 75℃ | Ir Lights: | 6 IR Lights |
Product Description
BSD Camera Specifications:
| Sensor | Sony STARVIS™ CMOS (1/2.8") |
| Resolution | 1080p (1920×1080) or 4K (3840×2160) |
| Frame Rate | Up to 60 FPS |
| Dynamic Range | >120 dB HDR |
| Field of View (FOV) | 150° ultra-wide angle |
| Lens Aperture | f/1.6, 6G+IR glass |
| Low-Light Performance | 0.01 lux (color) / 0.001 lux (B&W, IR-cut removed) |
| Processing | |
| Processor | Dual-core ARM Cortex-A53 + Neural Processing Unit (NPU) |
| AI Compute Power | 2 TOPS (Tera Operations Per Second) |
| Latency | <50 ms end-to-end processing |

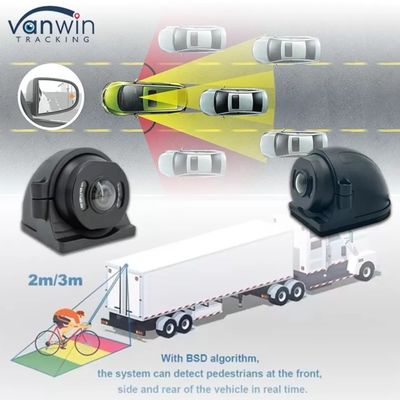

| Pre-installed Algorithms | Blind spot detection, pedestrian/vehicle tracking, obstacle recognition |
| Custom Algorithm Support | Yes (via SDK/API) |
| Connectivity | |
| Interfaces | CAN, LIN, Ethernet (PoE support) |
| Data Output | RTSP, ONVIF, TCP/IP |
| Wireless Options | Optional Wi-Fi/4G/5G module (add-on) |
| Power & Environment | |
| Power Supply | 12-24V DC |
| Power Consumption | <3W (low-power mode), <5W (full operation) |
| Operating Temperature | -30°C to +85°C |
| Protection Rating | IP69K (dust/waterproof) |
| Vibration Resistance | MIL-STD-810G compliant (up to 5Grms) |
| Software & Security | |
| Configuration Tools | Mobile app, PC software |
| Firmware Updates | OTA (Over-the-Air) support |
| Data Security | AES-256 encryption, secure boot |
| Certifications | CE, FCC, ISO 16750 (automotive), RoHS |
| Physical | |
| Dimensions | 90mm × 60mm × 40mm (compact housing) |
| Weight | 300g |
| Mounting | Adjustable bracket (included) |
| Warranty & Support | 2-year warranty, 24/7 technical support |

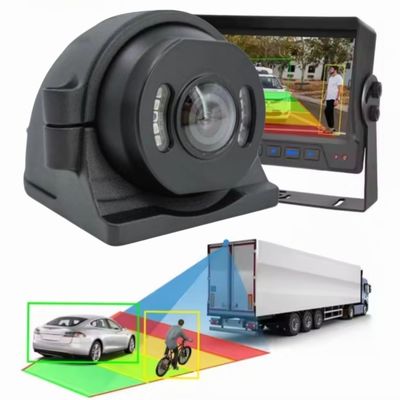

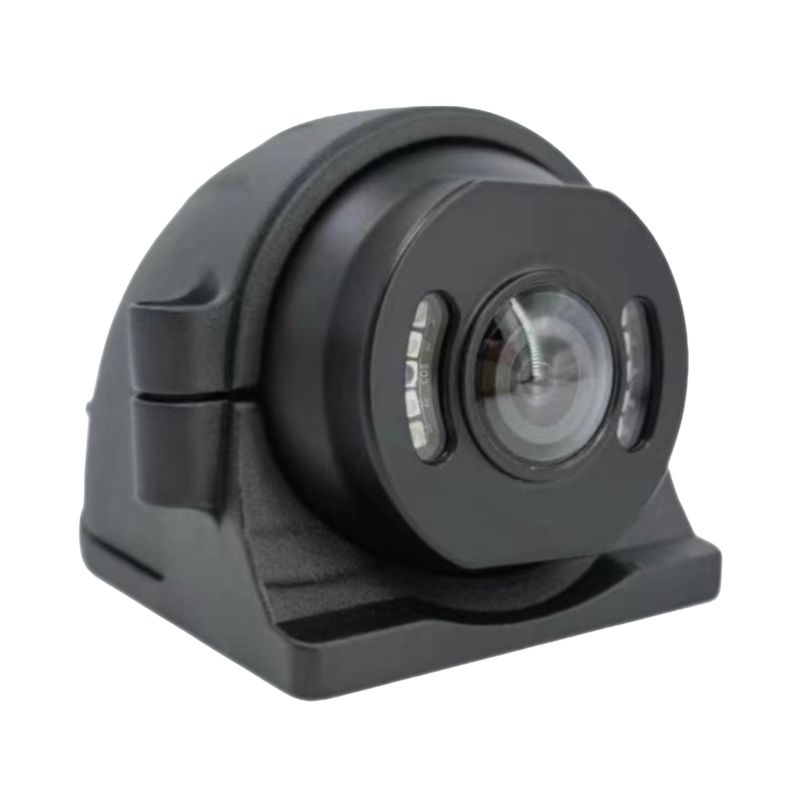

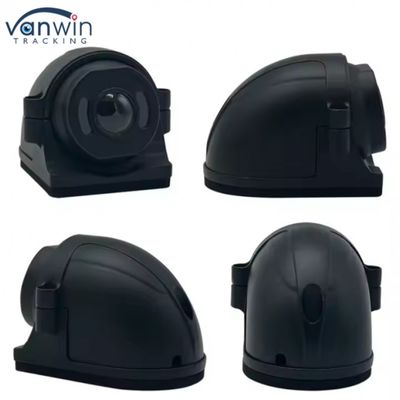

BSD Camera Product Pictures
We are a one-stop provider of vehicle-mounted monitoring systems dedicated to addressing vehicle safety, with fifteen years of professional experience. Our products comprehensively cover vehicle recorders, monitors, vehicle cameras, dash cams, and various expansion devices like fuel sensors, temperature sensors, fireproof boxes, alarms, tire pressure sensors and so on. We have provided customized solutions for hundreds of different customers in various application scenarios around the world, earning unanimous praise from our clients. We always uphold a sincere, kind, and enthusiastic service attitude, considering all aspects for our customers and bringing them value far beyond the products themselves.
FAQ
1. Q: How do I install a vehicle camera on my bus?
A: We have detailed product installation and operation instructions to help you install and use this vehicle camera better and faster.
2. Q: Is this camera suitable for use on the subway?
A: Yes, this product is suitable for all large transport vehicles.
3.Do the camera systems work at night?
Yes - most of our cameras come with infra-red lights and all come with excellent night vision.
4. Q: Does your company support customized services?
A: Yes, we have provided customized solutions for many customers to meet their specific needs, with a customer satisfaction rate of 99%. If you have customized requirements for the vehicle monitoring system, please send it to us by email.
