1080P HD USB Backup Camera For Bus Waterproof Reversing Monitor AHD Image Sensor For Parking
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-388 USB |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; 1080P Sony Bus Surveillance Camera Waterproof for vehicle outside |
|
Detail Information |
|||
| Type: | USB Camera | Image Sensor: | 1080P |
|---|---|---|---|
| TV System: | PAL/NTSC | Voltage: | DC12 Or 24V |
| IR Lights: | 24pcs | Cable Length: | 5M/10M/15M |
| Ir Distance: | 5-10m | Night Vision: | Yes |
| Waterproof: | IP69K | 1080P: | Support |
| Lens Angle: | 130 Degree Wide Angle | Lens: | 2.8mm, 3.6mm, 6.0mm |
Product Description

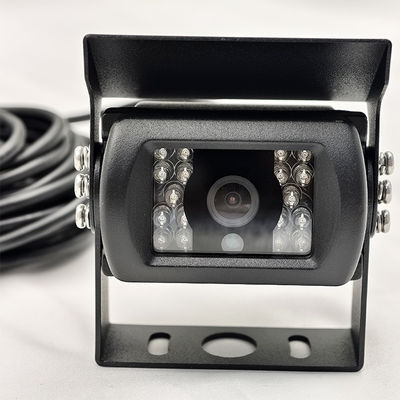

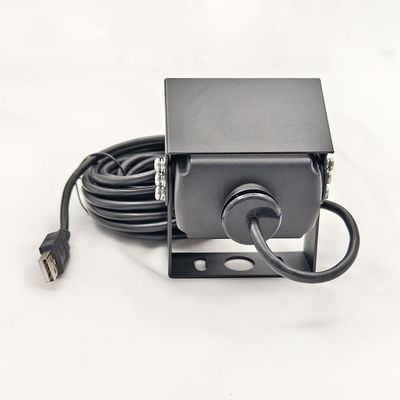

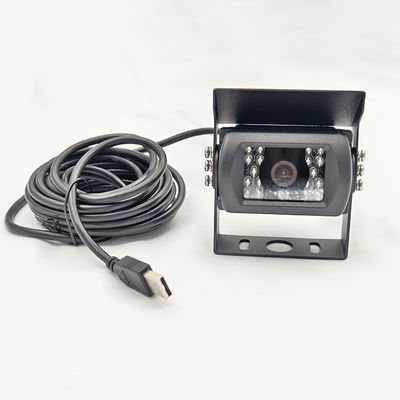

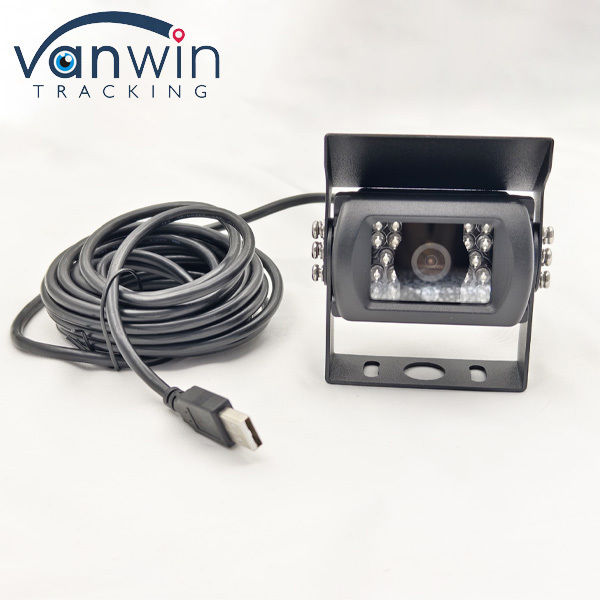

1080P HD USB Backup Camera For Bus Waterproof Reversing Monitor AHD Image Sensor For Parking
This camera with Sony CCD image sensor has better picture's clarity, color contrasting and sharpness than CMOS camera, and with 24pcs of IR lights, which also shows very clear images at night. It's very popular for buses or trucks management and can be used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.
Main Specifications
|
V30E+IMX323 |
|
| Image Sensor | 1/2.9" SONY_IMX323 |
| Image System | PAL/NTSC |
| Resolution | 1920 (H) ×1080(V) |
| Min.illumination | 0.01Lux full color |
| Electronic Shutter | 1/25s～1/100,000s |
| Video Standard | AHD |
| Frame Rate | 1920×1080@25 fps；1920×1080@30 fps； |
| Lens | 2.1/2.8/3.6 |
| Video Out | 1CH BNC AHD output, Support TVI/CVI/CVBS Mode |
| WDR | auto |
| SNR | >45db |
| White Belance | AWB |
| DR | 76db |
| Advanced Function | 2D_DNR |
| Working Environment | -25℃~+70℃,Humidity 95% |
| Power supply | DC 12V +/-15%, |
| Dimensions(mm) | 38*38,32*32 |
Our Services
Our Quality:
Every product be tested one by one seriously before shipping. Most of our products are supply for bus, coach manufacture.
Our Warranty:
1) All our goods have 6 months for replacement, 12 months for repair. Once you have bought from us have any quality problem within 6 months, we will free replace them for you and will repair for you within 12 months. Shipping cost will charge be by each side.
2) If the product has any problem after 12 months, you also can send them back to us; we will free repair them for you, and send them to you together with your next order. Of course, we will charge cost if replace new parts.
Whole Life time technology Support
