Nigeria-compliant SLD Speed Limiter for Heavy Trucks, Featuring Mandatory Speed Limiter When Exceeding Speed Limits
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin |
| Certification: | CE ROHS |
| Model Number: | TPL001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10PCS |
|---|---|
| Price: | USD20~USD40 |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1,000pcs per month |
|
Detail Information |
|||
| Material: | Engineering Plastic | Product Name: | Car GPS Speed Limiter For Speed Control |
|---|---|---|---|
| Applicable To Market: | Nigeria Compliant | Feature: | Tamperproof |
| Function: | Speed Limit For Different Road Types, Record Speed Data Of Latest 72 Hours | Advantage: | Tamperproof |
Product Description
Nigeria-compliant SLD Speed Limiter for Heavy Trucks, Featuring Mandatory Speed Limiter When Exceeding Speed Limits
Product Features:
1. Tamper proof
2. Speed Limiter
3. Enforce to limit the pre-set speed intelligently, safe speed limit.
4. USB flash data downloaded. Vehicle travelling data could be retrieved by using a computer or a USB flash.
5. Data could be recorded for at least 72 working hours for future reference, including speed record, year, month, day, hour, munite, second, the speed of vehicle, etc.
6. Tamper proof. Vanwin vehicle speed limiters are specially designed for none drivers or any other unauthorized people can tamper with the installed devices. Once device is tampered, it shall go to limp mode at 20km/h.
7. Pre-warn if set speed limit is reached, beep sound will be produced continuously.
8. Installation Vanwin speed governor could be hidden in a place not accessible by unauthorized people.
9. The speed limiter recorder could communicate with computer by use of USB flash.
10. Wide applicable for public service vehicles, trucks, cars, school buses,etc.
11.Truck Car Speed Limiter Installation specially for Nigeria Ethiopia Egypt DR Congo Tanzania South Africa Kenya Sudan Uganda Algeria Angola Morocco Mozambique Ghana Madagascar Côte d'Ivoire Cameroon Niger
Mali Burkina Faso Malawi Zambia Chad Somalia Senegal Zimbabwe Guinea Benin Rwanda Burundi Tunisia South Sudan Togo Sierra Leone Libya Congo Liberia Central African Republic Mauritania Eritrea Namibia Gambia Gabon Botswana Lesotho Guinea-Bissau
Equatorial Guinea Mauritius Comoros Cabo Verde Sao Tome & Principe Seychelles Zimbabwe,etc.
Device Panel Introduction

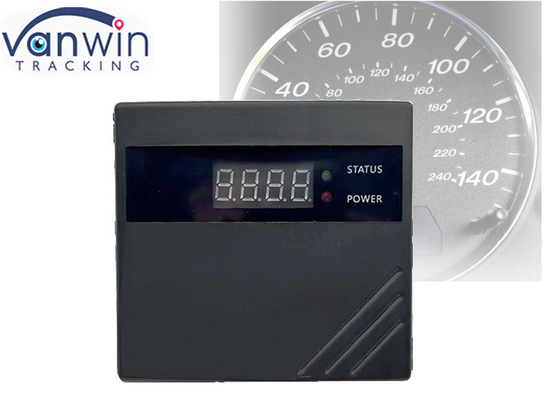

1 Panel
There are 4 digital tubes and two indicator lights on the panel. The green light is for status, the red light is for power, the green light is solid means that the GPS located, It is blinking per one second means that the GPS does not locate
The display screen has three states:
1. The screen will close while the vehicle is stopping or speed is 0.
2. Display real time speed while vehicle is running .
3. Set parameters
1.1 Show the speed real time
It will show speed real time on the 2nd~4th digital tubes
1.2 Config parametes
There are 2 two buttons for setting parameters, you can set overspeed, calibrate speed ,the time for output signal while speed is over , one button is for switching functions, another is for adjusting parameters
The first digital tube is index of function
1 — Set overspeed
2 — Calibrate speed down
3 — Calibrate speed up
4 — Time for relay work
4 Installation
5 Configure APP
