1080P High-Definition Night Vision Truck Camera Easy To Install Magnetic Camera
Product Details:
| Place of Origin: | Guangdong,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/ROHS |
| Model Number: | VW-206M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,0000 pcs per month |
|
Detail Information |
|||
| Product Name: | AHD Magnetic Side View Camera | Product Features: | Magnetic Attraction, High-definition Night Vision, Waterproof |
|---|---|---|---|
| Voltage: | DC12-36V | Camera Chip: | Sharp Sony CCD 600TVL AHD 1080P 720P |
| Use: | Car, Truck, Bus Rear View Camera | Lens Angel: | 2.8mm / 3.6mm Or Others |
| Compatible System: | PAL/NTSC Automatically | Image Sensor: | 1/2.9" IMX323 2.0MP |
| Working Temperature: | -20℃~70℃ | Stock Temperature: | -30℃~80℃ |
Product Description
1080P High-Definition Night Vision Truck Camera Easy To Install Magnetic Camera

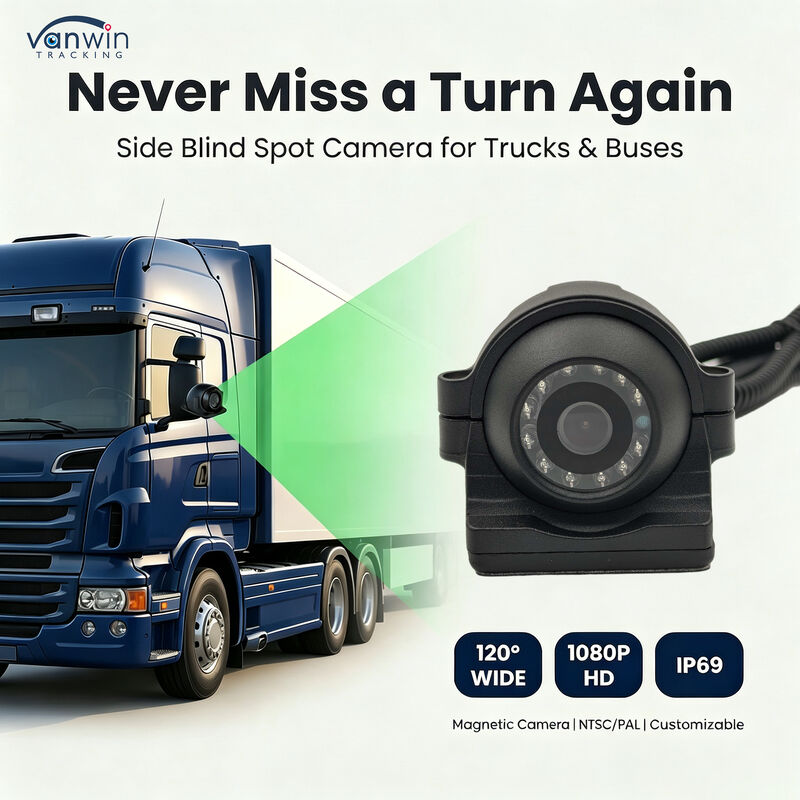

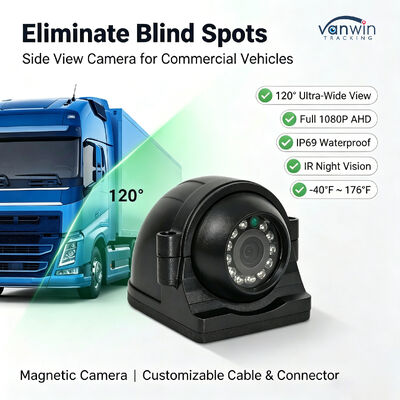

Super Strong Magnetic Suction Camera Heavy-duty Truck Side View Camera High-definition Night Vision Waterproof BSD Camera
The camera is used with Mobile DVR / Car DVR (with 3G, 4G, GPS,WiFi) for vehicle real time monitoring, applied with car cameras used for vehicle monitoring in bus, taxi, school, bus, truck, squad car, tour bus, tanker truck, escort car etc.
Main Features:

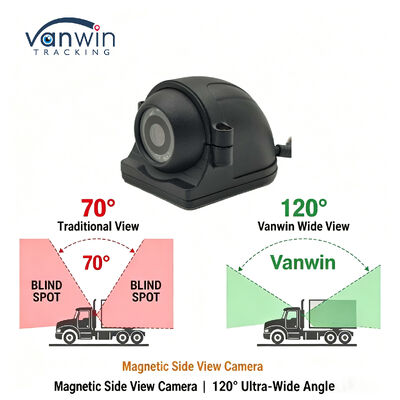

Side View Camera for Heavy-duty or Bus
600TVL/700TVL/800TVL for options
9PCS Infrared LED lights

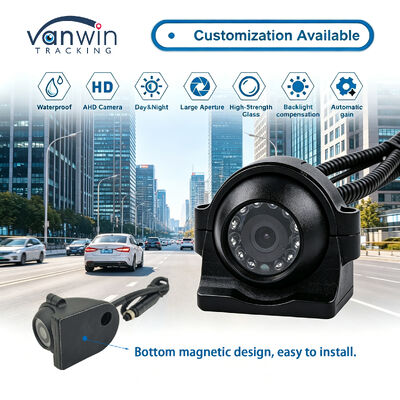

Super strong magnetic bottom, easy to install
CE,FCC,RoHS Certificates
| Chip Technical Parameters | |||
|
Image Sensor |
1/2.9" IMX323 2.0MP |
Video Out |
1CH BNC AHD output, Support TVI/CVI/CVBS Mode |
|
Image System |
PAL/NTSC | WDR | auto |
| Resolution | 1920 (H)×1080(V) | SNR | >45db |
|
Min. illumination |
0.01Lux full color |
White Belance |
AWB |
|
Electronic Shutter |
1/25s~1/100,000s | DR | 76db |
|
Video Standard |
AHD |
Advanced Function |
2D_DNR |
|
Frame Rate |
1920×1080@25 fps; 1920×1080@30 fps; |
Working Environment |
-25℃~+70℃, Humidity 95% |
| Lens | 2.1/2.8/3.6/6.0MM |
Power supply |
DC 12V +/-15% |
FAQ:
Q: What is your terms of packing?
A: Generally, we pack our goods in neutral white or netural color gift boxs.
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
Q: What is the MOQ ?
A: 1 piece
Q: How fast for sample delivery?
A: 3-7 days
Q: Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings.
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the price.
Q: How about the warranty period?
A: 12 Months.
Q: How can you guarantee the quality?
A: Our production quality follows the standard of MIL-STD-105E.
We have a QC team with 8 years' experience.
All of the products will run through over 4 times' 100% testing before being delivered.
Timely after sales service.
