AI Vehicle Camera with Intelligent BSD & Blind Spot Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-236BSD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | Negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for bulk orders |
| Payment Terms: | T/T, Western Union, PayPal |
| Supply Ability: | 50,000pcs per month |
|
Detail Information |
|||
| Minimum Illumination: | 0.01LUX/F1.2 | Color: | Housing Black |
|---|---|---|---|
| Storage Temperture: | -40℃ - 75℃ | Custom Support: | OEM ODM |
| Len Angle: | 130 Degrees | Video Compression Format: | H.264/H.265 |
| Waterproof Grade: | IP69K | Connertor: | 4 Pin |
| Ir Lights: | 6 IR Lights | Sensor: | CMOS / CCD |
| Resolution: | 720P/1080P | Alarm: | Support |
| Highlight: | Intelligent BSD AI Vehicle Camera,Blind Spot Monitoring AI Camera |
||
Product Description
AI Vehicle Camera with Intelligent BSD & Blind Spot Monitoring
Powered by advanced AI technology, this heavy-duty AI Vehicle Camera accurately identifies pedestrians, cyclists, vehicles, and road obstacles in real-time. Designed for commercial fleets, logistics trucks, and public transit, it provides reliable protection, reduces blind spots, and enhances fleet safety management.

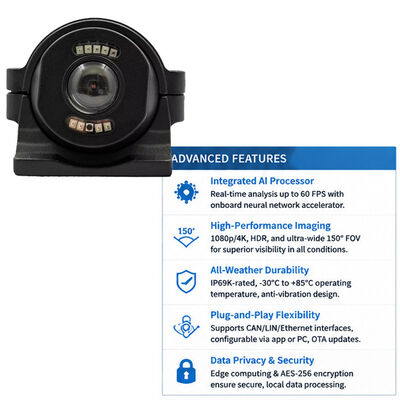

Core Features & Advanced Capabilities
- Integrated AI Processor: Real-time edge computing and video analysis up to 60 FPS with an onboard neural network accelerator.
- High-Performance Imaging: Supports 1080p/4K resolution, HDR, and an ultra-wide 150° Field of View (FOV) for superior visibility under all weather conditions.
- All-Weather Durability: Rugged metal housing with IP68 & IP69K waterproof rating. Operates flawlessly in extreme temperatures from -30°C to +85°C with anti-vibration design.
- Plug-and-Play Flexibility: Supports CAN, LIN, and Ethernet interfaces. Configurable via smartphone app or PC, with OTA (Over-the-Air) wireless updates.
- Data Privacy & Security: Local data processing backed by AES-256 encryption to ensure secure fleet operations.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Housing Material | Durable Metal Housing (Black) |
| Lens & FOV | 2.8mm Lens / 150° Wide Field of View |
| Night Vision | 8 PCS Infrared (IR) LEDs for Infrared Night Vision |
| Power Supply | DC12V Power Input |
| Video System | PAL / NTSC System Compatible |
| Image Orientation | Normal / Mirror Image Switchable |
| Connector Type | 4-Pin Double Shielded Aviation Female Connector & Custom Calibration Cable |
| Waterproof Rating | IP68 / IP69K Waterproof and Dustproof |
| Product Dimensions | 90.4mm × 75mm × 60mm |
AI Mainboard Configuration Options
- Standard Mainboard: Optimized for standard AI recognition, identifying people and vehicles in real-time.
- Calibration Mainboard: Includes custom calibration cable for precise algorithmic tuning (+USD $35 difference).
- Full-Function Calibration Mainboard: Full-suite AI recognition covering people, vehicles, animals, and road obstacles. Includes custom calibration cable.
Versatile Fleet Applications
This intelligent AI camera is ideal for a wide range of commercial and industrial vehicles:
- Heavy Duty Trucks & Logistics Fleets
- Buses, Coaches, and Public Transit
- Delivery Vans & Commercial Vehicles
- Construction Vehicles & Heavy Machinery
- Agricultural Machinery
- Special Purpose & Municipal Vehicles
Frequently Asked Questions (FAQ) for AI Vehicle Camera
Q1: How does the AI camera handle real-time Blind Spot Detection (BSD)?

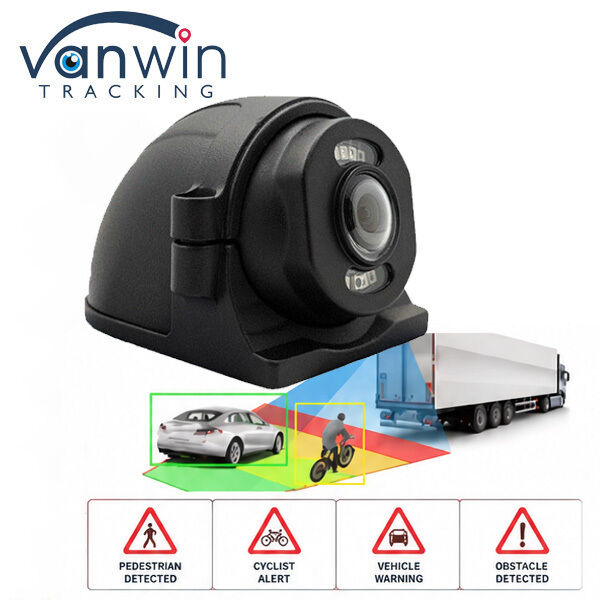

A: The camera features a built-in neural network accelerator that processes video feeds at up to 60 FPS locally. It automatically detects and categorizes targets into Pedestrian Detected, Cyclist Alert, Vehicle Warning, and Obstacle Detected, triggering instant alerts for drivers to prevent accidents.
Q2: Is this camera compatible with third-party MDVRs and Fleet Management platforms?
A: Yes. It uses a standard 4-pin aviation connector and supports universal PAL/NTSC systems, making it fully compatible with mainstream Mobile DVRs. It also supports CAN/LIN/Ethernet interfaces for seamless integration into advanced ADAS and Smart IoT vehicle platforms.
Q3: What makes this camera suitable for harsh outdoor environments?
A: Built with a rugged black metal housing, the camera boasts an IP68/IP69K rating, meaning it can withstand high-pressure jet washes and heavy rain. Its anti-vibration design and wide operating temperature range (-30°C to +85°C) ensure reliable, uninterrupted protection for heavy trucks and construction machinery.
