Logistics Fleet Cargo Protection 4CH/8CH MDVR Integrated with Truck Load Sensor System for Anti-Theft Tracking
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin |
| Certification: | CE ROHS |
| Model Number: | 9208 |
| Document: | 202 Load Sensor Solution.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD100-USD200 |
| Packaging Details: | Carton Box |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T,Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Basic Functions: | 3G, 4G, GPS, BD, WIFI, Alarm | Extensive Functions: | RFID, AI Detect, Fuel Sensor, Temperature Sensor, |
|---|---|---|---|
| Video Inputs: | 4CH Or 8CH Channel Video Inputs | Material: | Aluminum Alloy |
| Product Name: | MDVR With Weight Sensor Solution For Concrete Mixer Truck Cargo Monitoring | Backup: | SD+HDD |
| Product Name: | 4CH/8CH MDVR Integrated With Truck Load Sensor System For Anti-Theft Tracking | Applicable For Vehicles: | Big Bus, Double-decker Bus, Big Trucks, Trailers |
| Highlight: | Logistics Fleet MDVR with truck load sensor,4CH MDVR for cargo protection,8CH truck anti-theft tracking system |
||
Product Description
Logistics Fleet Cargo Protection: 4CH/8CH MDVR Integrated with Truck Load Sensor System for Anti-Theft Tracking
Real-Time Load Monitoring · Video Surveillance · 4G Remote Tracking · Instant Alerts
Overview

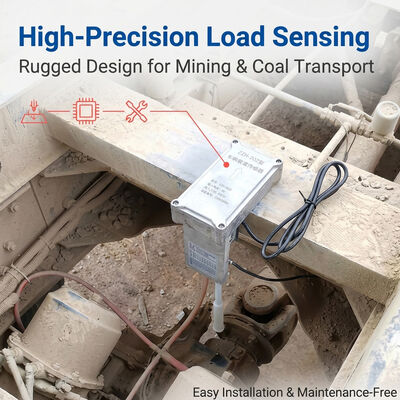

This integrated solution combines the VW9014/8 HDD MDVR with high-precision truck load sensors to deliver comprehensive cargo protection for logistics fleets. From warehouse loading to final delivery, fleet managers gain real-time visibility over cargo status — instantly detecting theft, unauthorized unloading, or load tampering at any point along the route.
Key Features
1. Real-Time Load Monitoring
Continuous weight tracking throughout transit. Any unexpected change — load decrease (theft, leakage, unauthorized unloading) or load increase (unauthorized loading) — triggers an instant alert.
2. Synchronized Video Surveillance

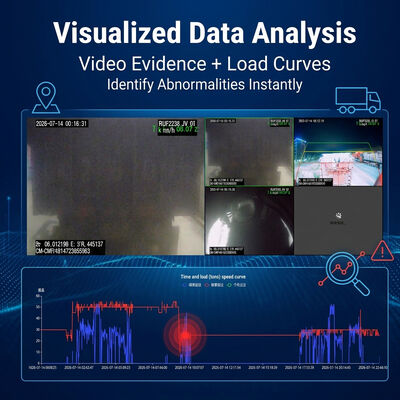

Supports up to 8-channel 1080P cameras covering cargo area, cabin, and surroundings. Live weight data is overlaid as a watermark on every video frame, providing ironclad evidence for any incident.
3. 4G Live Streaming & Remote Access

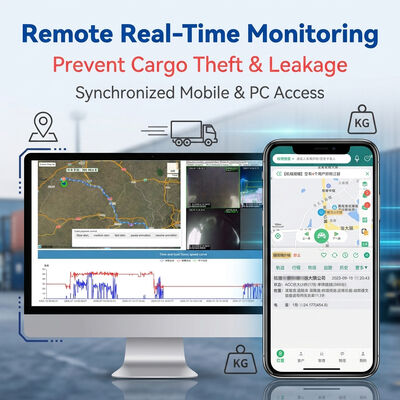

Real-time video and load data transmitted wirelessly to cloud platform. Monitor your entire fleet from PC or mobile device — anywhere, anytime.
4. GPS/BeiDou Tracking with Geofencing
Real-time positioning with smart location logic: load decrease outside designated delivery zones triggers "Unauthorized Unloading" alert; load increase outside loading zones signals potential cargo theft or collusion.
5. Smart Alerts for Loss Prevention
-
Sudden load drop → theft, leakage, or cargo fall-off
-
Load increase outside loading zone → unauthorized loading
-
Overload warning → compliance and safety
-
Tamper alert → sensor or cable interference
Key Benefits
| Theft Deterrence | Instant alerts with video-verified load evidence |
| Loss Prevention | Detect cargo leakage, spillage, or unauthorized discharge |
| Dispute Resolution | Synchronized weight+video timeline eliminates liability conflicts |
| Operational Efficiency | Real-time fleet visibility optimizes dispatch |
| Compliance | Overload warnings prevent fines and vehicle damage |
VW9014/8 MDVR Specifications
| Feature | Specification |
|---|---|
| Video Input | 4/8CH 1080P/720P/D1, H.265/H.264 |
| Storage | HDD up to 2TB + SD up to 512GB (dual recording) |
| Network | 4G (5G optional) with remote monitoring & control |
| Positioning | Built-in GPS/BeiDou |
| Power | 12V-36V wide input, <5W consumption |
| Durability | -20°C to +70°C, vibration-resistant |
| Interfaces | RS232, RS485, 4CH alarm input, 2CH alarm output |
| AI Option | ADAS + DSM + BSD available |
Load-Aware. Video-Verified. Remotely Secured.
Contact us to safeguard your logistics fleet today.
