Bulk Cargo Transport Telematics 4G AI Mobile DVR and Dynamic Onboard Weight Sensor for Fleet Compliance
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin |
| Certification: | CE ROHS |
| Model Number: | 9208 |
| Document: | 202 Load Sensor Solution.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD100-USD200 |
| Packaging Details: | Carton Box |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T,Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Product Name: | 4CH/8CH MDVR Integrated With Truck Load Sensor System For Anti-Theft Tracking | Video Inputs: | 4CH Or 8CH Channel Video Inputs |
|---|---|---|---|
| Basic Functions: | 3G, 4G, GPS, BD, WIFI, Alarm | Material: | Aluminum Alloy |
| Extensive Functions: | RFID, AI Detect, Fuel Sensor, Temperature Sensor, | Product Name: | MDVR With Weight Sensor Solution For Concrete Mixer Truck Cargo Monitoring |
| Backup: | SD+HDD | Product Name: | AI Mobile DVR And Dynamic Onboard Weight Sensor For Fleet Compliance |
| Applicable For Vehicles: | Big Bus, Double-decker Bus, Big Trucks, Trailers | ||
| Highlight: | 4G AI Mobile DVR for fleet compliance,Dynamic onboard weight sensor for transport,Bulk cargo transport telematics DVR |
||
Product Description
4G AI Mobile DVR and Dynamic Onboard Weight Sensor for Fleet Compliance
Load Monitoring · AI Video Surveillance · 4G Tracking · Compliance Alerts
Overview

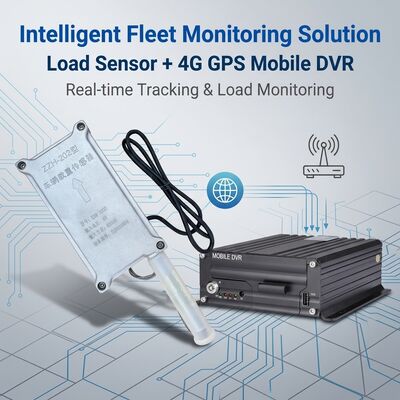

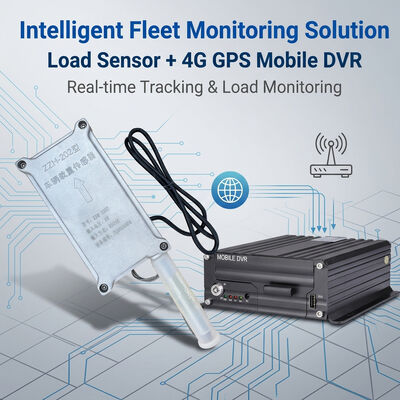

This integrated solution combines the VW9014/8 AI Mobile DVR with high-precision onboard weight sensors to ensure fleet compliance and cargo security. Using capacitive sensing technology (0.2mm accuracy), the system continuously measures load weight, synchronizes data with multi-channel video, and transmits everything via 4G to a central platform. Any overload or unauthorized weight change triggers instant alerts — helping fleet operators meet regulations while protecting cargo from loading to delivery.
How It Works

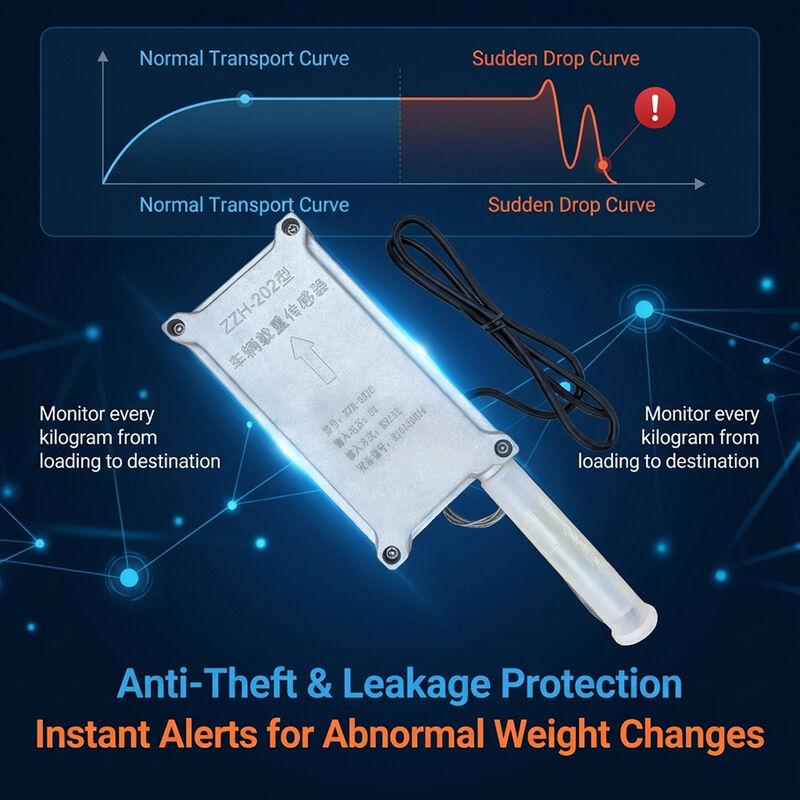

The capacitive non-contact sensor mounts on the vehicle frame without structural modification, detecting suspension deflection caused by load weight. With 0.2mm precision, shock resistance, and no moving parts, it delivers reliable readings across -20°C to 80°C environments. Data is fed via RS232 to the VW9014/8 MDVR, which overlays weight information onto video footage and streams it to the cloud.
Key Features
1. Precision Load Monitoring
-
Continuous static/dynamic weighing with 0.2mm accuracy, 0.2% resolution
-
Detects overload, load imbalance, and unauthorized weight changes

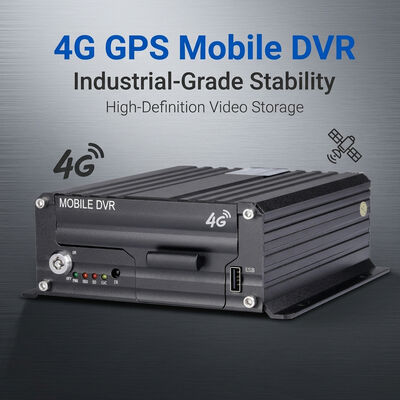

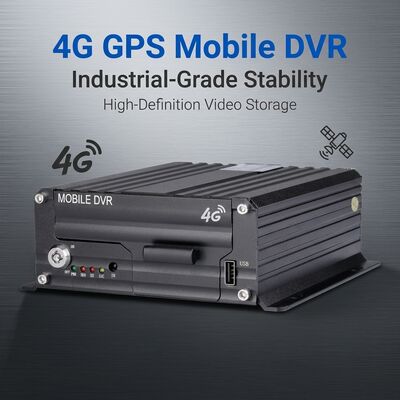

2. AI Video Surveillance
-
Up to 8-channel 1080P recording with H.265 compression
-
Optional ADAS, DSM, BSD for driver safety
-
Weight data overlaid as watermark on every video frame

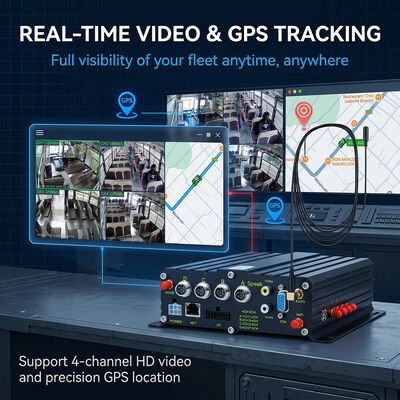

3. 4G Remote Monitoring & GPS Tracking
-
Real-time video streaming and load data via 4G (5G optional)
-
Built-in GPS/BeiDou/GLONASS with geofencing
4. Smart Alerts
-
Overload / load imbalance / route deviation
-
Weight decrease (theft/leakage) / weight increase (unauthorized loading)
-
Sensor tamper detection
5. Compliance & Fleet Management
-
Audit-ready weight+video logs for regulatory inspection
-
Driver behavior monitoring, remote fuel cut-off, SOS alarm
-
OTA updates, HDD+SD dual storage
Specifications
| Component | Key Specs |
|---|---|
| MDVR | 4/8CH 1080P, H.265, HDD up to 2TB + SD 512GB |
| Network | 4G CAT1, GPS/BeiDou/GLONASS |
| Sensor | Capacitive, 0.2mm accuracy, IP67, -20°C to 80°C |
| AI Options | ADAS, DSM, BSD |
| Power | 12V-36V, <5W, vibration-resistant |
Key Benefits
-
Compliance — Overload prevention with audit-ready records
-
Security — Theft alerts with video evidence
-
Safety — Imbalance warnings prevent rollovers
-
Efficiency — Real-time visibility for better dispatch
-
Accountability — Objective weight+video for dispute resolution
AI-Powered. Compliance-Ready. Remotely Managed.
Contact us to keep your fleet compliant and secure.
