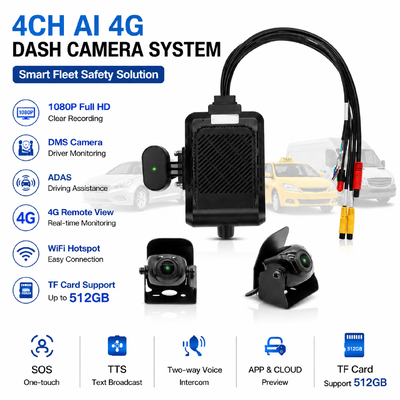

4-Channel AI Intelligent 4G Dash Camera, ADAS + DMS + BSD Active Safety,1080P+720P Recording for Taxis
Product Details:
| Place of Origin: | Shenzhen,China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-T658AI |
| Document: | news-T5504 V2 English manua... -.pdf |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Product Features: | AI 4G Dash Camera | Video Input: | Built-in 2ch, External 2ch 720P |
|---|---|---|---|
| Video Format: | H.264 | Resolution: | 1080P, 720P |
| AV Inputs: | 2CH/4CH | View Angle: | 120 Degree |
| Storage Capacity: | Max. 256GB | Storage Type: | MicroSD Card (up To 128GB) |
| Chinese Voice Control: | Support (optional) | Working Temperature Range: | -20 - 70 ℃ |
| Cpu: | MSTAR(MSC8336) | Loop Recording: | Yes |
| Route History: | Yes | Lens Angle: | 170 Degrees Wide Angle |
| Dimensions: | 90mm X 54mm X 36mm | ||
Product Description
Product Overview:
Secure your vehicle, protect your passengers, and safeguard your business with this advanced AI Smart 4G Dash Camera, specifically designed for the unique needs of taxis, ride-sharing (Uber/Lyft), and private vehicles. This compact, intelligent telematics device provides dual-channel high-definition video recording (front and in-cabin), proactive AI driver monitoring, and real-time 4G connectivity, offering an all-in-one solution for safety, security, and liability protection.
Key Features & Benefits:
-

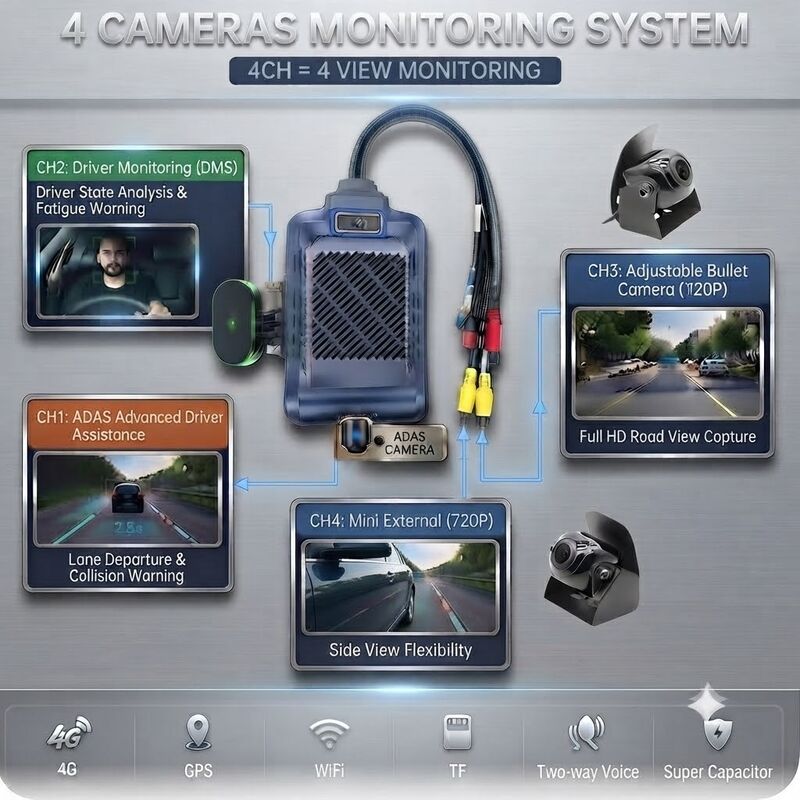

Dual-Channel Complete Coverage:
-
Simultaneously record the road ahead in crisp 1080P HD and the vehicle cabin in clear 720P HD, providing irrefutable video evidence of accidents, passenger disputes, or incidents inside the car.
-
Utilizes advanced H.265 & H.264 encoding to deliver high-quality footage while optimizing storage efficiency.
-
-
AI Driver Monitoring System (DMS) for Active Safety:
-
Uses an in-cab camera with a built-in high-performance NPU (neural network engine) to intelligently detect and alert for unsafe driving behaviors in real-time.
-
Includes alerts for: Fatigue Driving, Smoking, Phone Usage, Distraction, and Occlusion (blocking the lens).
-
Benefit: Protects your passengers and driver by preventing accidents before they happen.
-
-
Always-On 4G & GPS Connectivity:
-
Global 4G LTE: Features a built-in 4G module that supports global frequency bands for stable, worldwide operation.
-
GPS + Beidou Dual-Mode: Embedded high-precision positioning modules provide accurate, real-time vehicle tracking, historical route playback, and location data for dispatching or proof of service.
-
WiFi Hotspot: Built-in 2.4G WiFi allows passengers to connect to the internet (optional feature) or enables easy connection to your smartphone for configuration and video viewing.
-
-
Designed for Taxis & Private Cars:
-
Wide Input Voltage: Supports DC +10V ~ +36V, making it compatible with the electrical systems of virtually all passenger cars and taxis without requiring special adapters.
-
Compact & Discreet: An unobtrusive design that does not obstruct the driver's view.
-
Data Integrity Protection: Features a "TF Card + Super Capacitor" redundant design. The super capacitor ensures that the last recorded video file is completely and safely written to the storage card in the event of a sudden power failure during an accident, preventing critical data loss.
-
-
Smart Management & Emergency Features:
-
Two-Way Voice Communication: Built-in speaker and microphone support real-time voice intercom between the dash camera and a remote platform (useful for fleet dispatch or emergency assistance).
-
One-Key SOS Emergency Alarm: Includes an SOS button that the driver can press in an emergency to trigger an immediate alarm and alert the platform or owner.
-
Ample Storage: Supports one TF card slot (up to 512GB) for extensive local storage.
-
Easy Maintenance: Supports TF card and OTA (Over-the-Air) remote firmware upgrades.
-
Specification Parameters
| ITEM | Technical Specifications |
| CPU |
Dual-Core processor@1.5GHz,Total coding resources 1080p*100fps NPU@1.0TOPS neural network acceleration engine |
| Memory | 2Gb DDR3 |
| Video Input | Active Pixels: 1920×1080,1080×720; H.264&H.265 format |
| 2-ch Built-in CMOS camera, Low illumination 0.01LUX | |

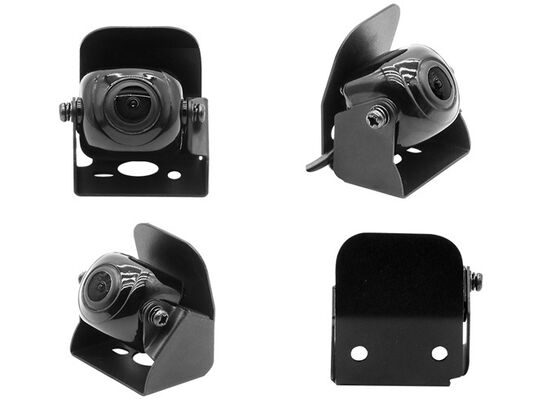

| 2-ch External camera, AHD 720P@25fps | |
| Video Output | Not support,Support mobile APP preview and setting |
| Audio input / output | Built-in MIC and speaker, G.711a format |
| Video recording resolution | 1080P/720P/D1*25fps,Simultaneous recording of sound and video. |
| G-Sensor | Built-in 3-axis acceleration |
| External interface | 2-ch RS232, reserved for communication with peripherals |
| Alarm Input | 2-ch sensor input, |
| Positioning module | Built-in GPS / Beidou Positioning Module |
| 4G | built-in 4G module,TDD-LTE, FDD-LTE |
| WIFI | Built-in, 2.4G,802.11b/g/n,STA or AP mode |
| TF Card | Support 1 TF card, Support 16G/32G/64G/128G/256GB/512GB |
| USB | Micro USB interface |
| Upgrade | TF card and OTA |
| AI - ADAS | Lane departure, collision alarm, Distance detection, pedestrian detection etc |
| AI - DSM | Fatigue driving detection, Smoking, call mobile phone, Occlusion, Unsafe driving behavior habit detection |
| AI - BSD | Blind area detection |
| Input voltage | DC:+10V ~ +36V |
| Power consumption | Normal working state < 5W (without external equipment) |
| Power off protection | Super capacitor design, support abnormal power failure, ensure the integrity of video files |
| Working Temperature | -25℃ to +70℃ |
| Working relative temperature | 20% to 80% |
| Equipment size | 138mm*85mm*45mm |
| Net weight | 0.4kg |
Applications:
-
Ride-Sharing (Uber, Lyft, Didi, etc.): Provide undeniable proof in passenger disputes and protect driver ratings.
-
Taxi Fleets: Enhance passenger safety, monitor driver behavior, and secure assets.
-
Driving Schools: Monitor student performance and ensure instructor safety.
-
Private Vehicles & Family Cars: Add a high-level security and monitoring system for peace of mind.
Yes, is free of charge. We will provide you the authorized code after you buy our equipment.
CPU 2.5G four core; Memory 8GB; HDD 1TB;
Actually we can provide the protocol package for you to develop your own CMS. You could remotely change the settings of your vehicles, this is no problem.
Any further questions, please don't hesitate to contact us, we are very pleased to help you.
