Mining Truck Reverse Parking Radar System with CAN Bus, Voice Alert and 8 Ultrasonic Sensors for Heavy Duty Vehicles
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-1207L |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | 91 |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T,Western Union,Pay |
| Supply Ability: | 50,000pcs per month; |
|
Detail Information |
|||
| Detection Distance: | Standard 3m (0.3 To 5m Optional) | Ultrasonic Frequency: | 40kHz |
|---|---|---|---|
| Operating Temperature: | -30°C ~ 80°C | Detection Angle: | X=Y=60° Or X=120°, Y=60° |
| Response Time: | Approx. 0.2s | Rated Voltage: | 12-24V DC |
Product Description
Mining Truck Reverse Parking Radar System with CAN Bus and Voice Alert Technology
Intelligent Obstacle Detection Solution for Heavy Duty Vehicles
Customer Challenges
Mining trucks and heavy duty vehicles often operate in complex environments with large blind spots and limited visibility. During starting, reversing and low speed operations, drivers may have difficulty identifying nearby obstacles around the vehicle.
Our Solution
The intelligent reverse parking radar system provides real time obstacle detection through ultrasonic sensors, LCD display warning and voice distance alerts.
With CAN bus communication support and multi radar expansion capability, the system helps improve vehicle surrounding awareness and provides flexible solutions for different heavy duty applications.
Key Features
1. Front and Rear Detection System

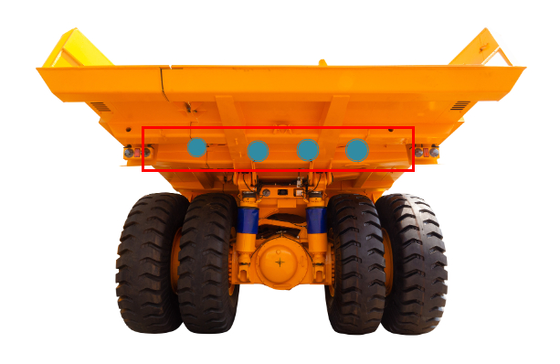

The front 4 sensors automatically activate after vehicle startup. During reversing, 8 sensors including front and rear sensors work together to provide comprehensive obstacle detection coverage.
2. Multi Radar Expansion with Near 360 Degree Coverage
The system supports connecting up to 12 radar sensors on 3 sides of the vehicle. Multiple radar units can be installed around the vehicle to provide near 360 degree surrounding obstacle monitoring coverage for large mining trucks and heavy duty vehicles.
3. Adjustable Ultrasonic Detection Range
The front detection range reaches 1.5 meters and rear detection range reaches 3 meters. Detection distance can be customized from 0.3 meters to 5 meters according to different vehicle requirements.
4. LCD Display and Voice Distance Alert
The LCD monitor displays obstacle position and distance in real time. Voice prompts provide the nearest obstacle distance information, helping drivers quickly understand surrounding conditions.
5. CAN Bus Communication Support
The radar system supports CAN bus communication and customized integration with vehicle systems for mining trucks, dump trucks and other heavy equipment.
6. Heavy Duty Industrial Design
Designed for harsh working environments, the system features durable components and waterproof protection for reliable operation in mining sites, construction areas and outdoor applications.
Applications
Suitable for mining trucks, cement trucks, heavy duty trucks, sand trucks, dump trucks and other industrial vehicles.
| Parameter | Specification |
|---|---|
| Detection Distance | Standard 3m (0.3 to 5m optional) |
| Ultrasonic Frequency | 40kHz |
| Operating Temperature Range | -30°C ~ 80°C |
| Detection Angle | X=Y=60° or X=120°, Y=60° |
| Response Time | Approx. 0.2s |
| Power Consumption | Average 1W, Max. 1.2W |
| Rated Operating Voltage | 12–24V DC |
| Operating Voltage Range | 9–36V Withstand Voltage |
| Rated Operating Current | 20mA–200mA |
| Max. Connectable Radars | Up to 12 pcs for 3-side installation |
| Application Scenarios | Mining Trucks, Cement Mixer Trucks, Heavy Duty Trucks, Sand Transport Trucks, Dump Trucks |
