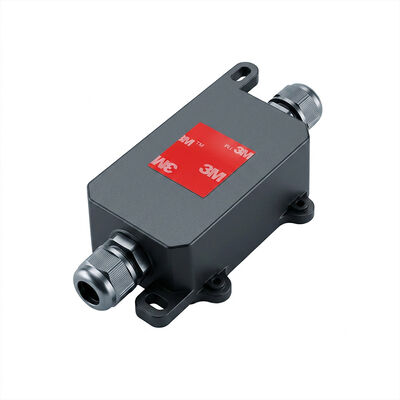

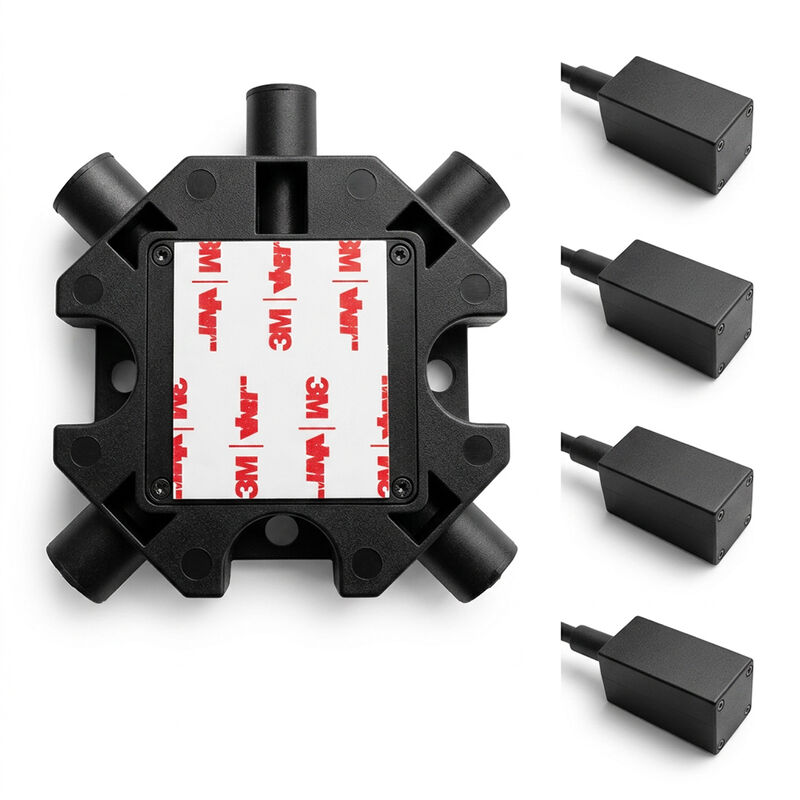

Universal Bolt-Free Leaf Spring Deformation Sensor with Non-Destructive Installation for Real-Time Load Monitoring
Product Details:
| Place of Origin: | China |
| Brand Name: | Vanwin |
| Certification: | CE ROHS |
| Model Number: | 9208 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1pc |
|---|---|
| Price: | USD100-USD200 |
| Packaging Details: | Carton Box |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T,Western Union,paypal |
| Supply Ability: | 1000PCS/month |
|
Detail Information |
|||
| Chassis Modification: | Non-Destructive (No Drilling, No Welding, No Polishing) | Installation Time: | ≤ 20 Minutes Per Sensor (clamping Duration) |
|---|---|---|---|
| Sensing Principle: | Leaf Spring Micro-Deformation / Strain Principle | Sensor Type: | Non-Mechanical Solid-State Sensor |
| Installation Profile: | Drill-Free Paste With Dedicated Pressure Clamp | Measurement Accuracy: | ±5% FSD (Full Scale Deflection) Or Better |
| Product Name: | Universal Bolt-Free Leaf Spring Deformation Sensor For 2/3/4/6-Axle Fleet Vehicles | Supported Axle Configurations: | 2-Axle, 3-Axle (Bogi / Triangular), 4-Axle, 6-Axle Trucks |
| Highlight: | Bolt-Free Leaf Spring Deformation Sensor,Non-Destructive Onboard Weighing Sensor,Real-Time Load Monitoring Sensor |
||
Product Description
Universal Bolt-Free Leaf Spring Deformation Sensor for 2/3/4/6-Axle Fleet Vehicles

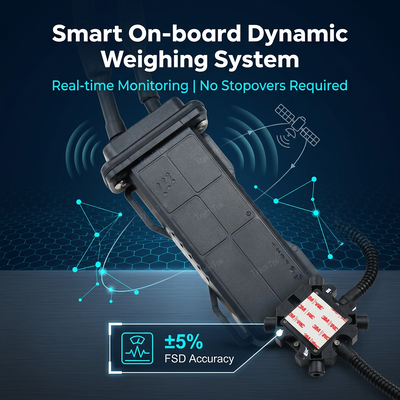

Real-Time Load Monitoring • AI-Powered Alerting • 4G Live Video • GPS Tracking
Product Overview
A truly versatile fleet solution, this universal deformation sensor adapts flawlessly to almost any heavy logistics vehicle configuration—including 2-axle, 3-axle (triangular leaf spring), 4-axle (inverted triangular), and massive 6-axle trucks. Featuring a flexible, bolt-free mounting alignment, the sensor cover securely faces the axle with dedicated reserve space, making it easy to install across diverse and mixed commercial fleets.
Key Features
🔧 Drill-Free Non-Destructive Installation
- Zero Vehicle Damage: No drilling, welding, or polishing required; preserves factory chassis warranty and truck resale value
- 20-Minute Paste Mount: Direct-paste method on leaf springs using dedicated clamps; deployable at any site without heavy machinery
- Universal Fleet Fit: Optimized, flexible configurations for 2, 3, 4, and 6-axle heavy-duty trucks
📊 Maintenance-Free Solid-State Sensors
- Micro-Deformation Sensing: Measures weight by detecting the exact elastic bending of spring steel plates under load
- Anti-Fatigue Longevity: Solid-state design eliminates mechanical wear and calibration drift; operational continuously when powered
- Remote OTA Upgrades: Achieves reliable ±5% FSD accuracy with zero physical field-maintenance and automated cloud updates

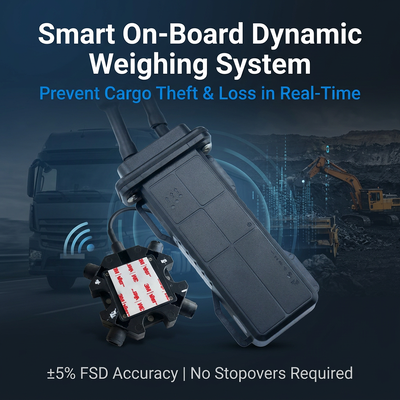

🔒 Anti-Fraud & Closed-Loop Risk Control
- Theft & Diversion Prevention: Eliminates mid-route cargo swapping, skimming, and unauthorized product diversion
- Gatekeeper Control: Auto-denies unloading or site access unless the vehicle is online and transmitting active load data

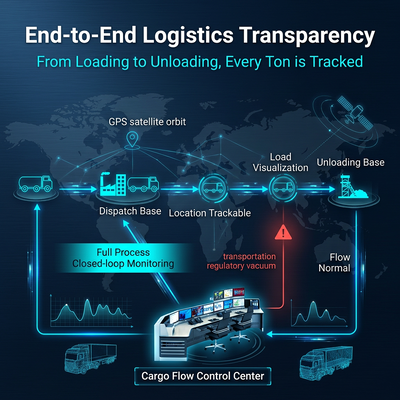

- Geofenced Weight Curves: Links GPS tracking to live weight changes; immediately flags illegal unloading out of zone
- 12-Photo Backup Audit: If offline, the platform forces a 12-photo mobile validation check to clear abnormal waybills

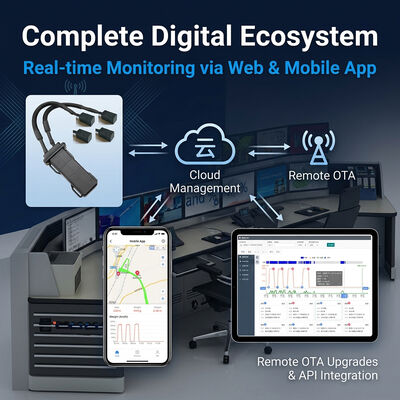

🌐 Unified Telematics & Automated Billing
- Centralized BI Dashboard: Live maps tracking fleet online status, weight metrics, overload alarms, and travel routes
- Multi-Role Mobile Apps: Split mobile ecosystem featuring an online signature system for drivers and live load trends for owners
- Automated Freight Settlement: GPS + Load data auto-calculates total trips and tonnage, replacing manual logging with an auditable billing stream
Product Visualization
