Best Waterproof CMOS CCD AHD Night Vision Car Vehicle Camera for Security System
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-388 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | Night Vision Car Camera | Image Sensor: | CMOS CCD AHD For Optional |
|---|---|---|---|
| TV System: | PAL Or NTSC | Power: | DC12 Or 24V |
| Color: | Black | Warranty: | 12 Months |
| Lens Angle: | 170 Degree Wide Angle | Application: | Bus, Truck, Trailer, Ship |
| High Light: | mobile surveillance cameras,cctv surveillance camera |
||
Product Description

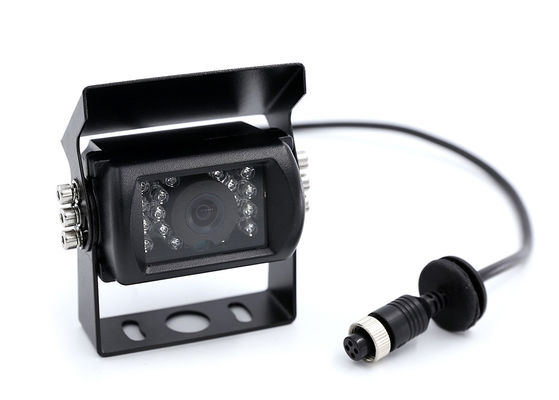

Best Waterproof CMOS CCD AHD Night Vision Car Vehicle Camera for Security System
Features:
- Very HD Sony CCD Camera
- with 24 IR LED, great night vision
- Easy Installation Mechanical Design
- very waterproof and popular
- 1/3" Color Sony 800TVL/700TVL/600TVL/480TVL for option
Specifications:
| V30E+IMX323 | |
| Image Sensor | 1/2.9 " SONY_IMX323 |
| Image System | PAL/NTSC |
| Resolution | 1920 (H)×1080(V) |
| Min.illumination | 0.01Lux full color |
| Electronic Shutter | 38*38,32*32 |
| Video | Standard AHD |
| Frame Rate | 1920×1080@25 fps；1920×1080@30 fps |
| Lens | 2.1/2.8/3.6 |
| Video Out | 1CH BNC AHD output, Support TVI/CVI/CVBS Mode |
| WDR | auto |
| SNR | >45db |
| White Belance | AWB |
| DR | 76db |
| Advanced Function | 2D_DNR |
| Working Environment | ,-25℃～+70℃,Humidity 95% |
| Power supply | DC 12V +/-15%, |
| Dimensions(mm) | 38*38,32*32 |
1/4 AHD 720P for example
| Chip Technical Parameters | |||
| Image Sensor | 1/4 CMOS H62 100W | Video Out |
1CH BNC AHD output, Support TVI/CVI/CVBS Mode |
| Image System | PAL/NTSC | WDR | auto |
| Resolution | 1280 (H)×720(V) | SNR | >45db |
| Min.illumination | 0.1Lux full color |
White Belance |
AWB |
| Electronic Shutter | 1/25s~1/100,000s | DR | 76db |
| Video Standard | AHD |
Advanced Function |
2D_DNR |
| Frame Rate | 1280×720@25 fps; 1280×720@30 fps; |
Working Environment |
-10℃~+60℃, Humidity 95% |
| Lens | 2.8/3.6mm | Power supply | DC 12V +/-15% |

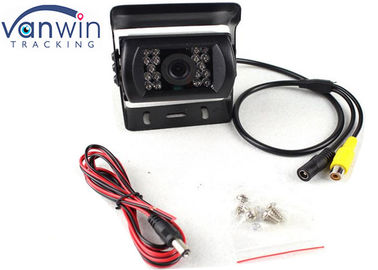

Connetor Available for Option
- 4Pin Aviation connector

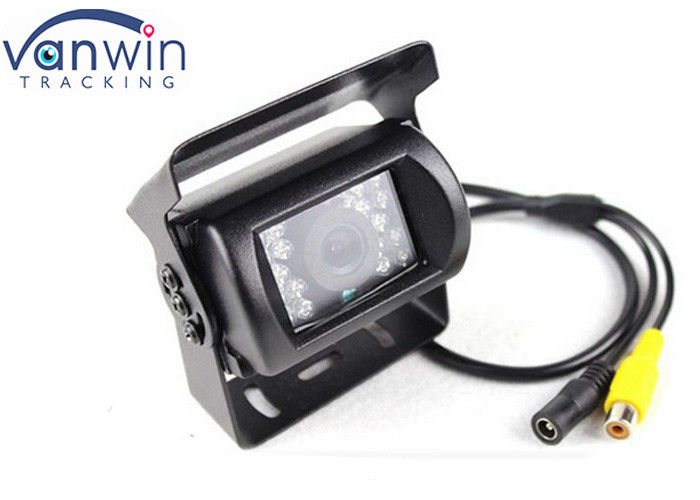

- DC+RCA connector
- CCTV security BNC connector
Application
The vehicle surveillance camera is widely used in bus, dangerous cargo truck, police car, van, Train, ship, home security etc
for outside.
