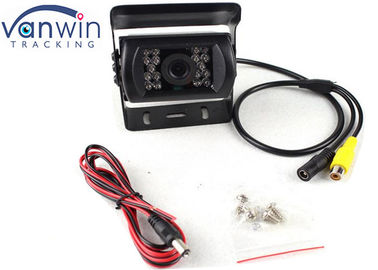

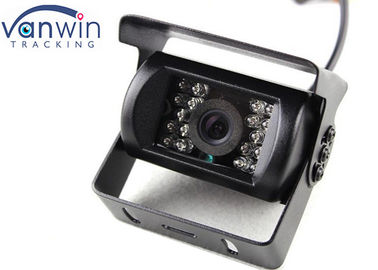

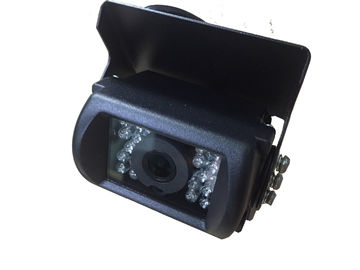

AHD 720P / 960P CMOS Bus Surveillance Camera for DVR, Wired Back-Up Camera System
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-388 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month; AHD 720P / 960P CMOS Bus Surveillance Camera for DVR, Wired Back-Up Camera System |
|
Detail Information |
|||
| Product Name: | Bus Surveillance Camera | Image Sensor: | CCD 600/700TVL, AHD 720P/960P/1080P |
|---|---|---|---|
| TV System: | PAL Or NTSC | Power: | DC12 Or 24V |
| IR Lights: | 24pcs | Lens Angle: | 110 Degree Horizontal Angle |
| Application: | For Truck Or Bus | Working In Water: | IP68 |
| High Light: | mobile surveillance cameras,cctv surveillance camera |
||
Product Description
AHD 720P / 960P CMOS Bus Surveillance Camera for DVR, Wired Back-Up Camera System
This bus surveillance camera with Sonny CCD image sensor has better picture's clarity, color contrasting and sharpness than CMOS camera, and with 24pcs of IR lights, which also shows very clear images at night. It's very popular for buses or trucks management.
Specifications
| Model | VW-388 |
| Image Sensor | CCD |
| Len Angle | 170 Degrees |
| TV System | NTSC/PAL |
| Resolution (TV Line) | 420/480/520 |
| Effective Pixels | 728*582 580*492 |
| Minimum Illumination | 0.1 - 1.0 Lux |
| Waterproof Resistance Rating | IP 68 |
| Power Supply | DV 12V +/- 1V |
| Power Consumption | <1W |
| Video Output | 1.0vpp.75ohm |
| White Balance | Auto |
| AGC | Auto |
| Operating Temperature | -20℃ - 80℃ |
| Storage Temperature | -40℃ - 85℃ |
| Warranty | 15 months |
| Optional Function 1 | Parking Line or not |
| Optional Function 2 | Frontview or Rearview |
| Sample | Available |

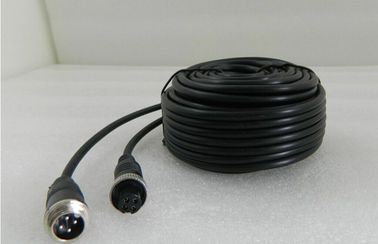

| Video Cable Length | 6M |
| Power Supply Length | 1.2M |

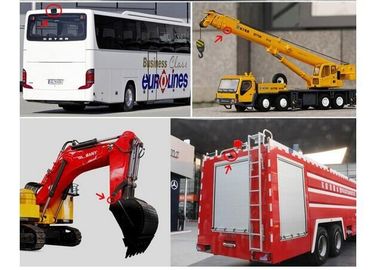

Application
- inside car camera or outside car camera (inside or outside vehicle installation)
- used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.
Camera Dimension
Want to Know more details about this product
