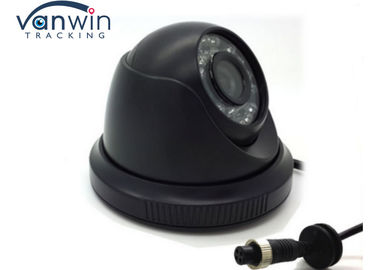

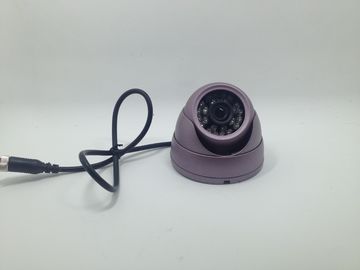

Bus Crash inside Dome Camera SONY CCD 600TVL night Vision With Audio for MDVR system

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-C202
Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month; Bus Crash inside Dome Camera SONY CCD 600TVL night Vision With Audio for MDVR system
Type: Bus Crash Inside Camera Resolution: SONY CCD 600/700/800TVL
TV System: PAL Or NTSC Color: Black Or White
Night Vision: Yes Warranty: 1 Year
Lens Angle: 140 Degree Wide Angle Application: Inside For Bus, Truck And Office
High Light:

car bumper camera

,

reverse parking camera

Bus Crash inside Dome Camera SONY CCD 600TVL night Vision With Audio for MDVR system





Main Features:



1) Dome Plastic, mini size, light weight

2) Applicable to Rearview, Frontview, Sideview

3) Easy install, nice design

4) TVL optional,  800TVL/700TVL/600TVL/480TVL/420TVL

5) Different color for option, white or black

6) With audio for option

7) Most competitive price



Technical Specifications:



Image Sensor 1/3" 420TVL SONY CCD 1/3" 600TVL SONY CCD 1/3 700TVL SONY CCD
Video System PAL/NTSC PAL/NTSC PAL/NTSC
Pixels PAL:582(H)*510(V) PAL:752(H)×582(V) PAL:976(H)×582(V)
NTSC:510(H)*492(V) NTSC:768(H)×494(V) NTSC:976(H)×494(V)
Horizontal Resolution 420 TVL 600 TVL 700 TVL
Min Illumination 0.01LUX(0 Lux IR on) 0.01LUX(0 Lux IR on) 0.01Lux (0 Lux IR on)
SNR ≥46dB ≥46dB ≥48dB
Electronic Shutter 1/50-1/10000(S) 1/50-1/10000(S) 1/50(1/60) - 1/100000 (S)
Video Output 1.0V±0.5Vp-p 75Ω 1.0V±0.5Vp-p 75Ω 1.0V±0.5Vp-p 75Ω
View Angle 120° 120° 120°
Working Voltage DC12V±0.5V DC12V±0.5V DC12V±0.5V
Consumption 100mA±10% 100mA±10% 70mA±10%
Display image Mirror/normal optional Mirror/normal optional Mirror/normal optional
MIC Optional Optional optional



There are three kinds pof connectors for option



1. 4-pin connector

2. RAC connector

3. BNC connector

Bus Crash inside Dome Camera SONY CCD 600TVL night Vision With Audio for MDVR system 0

Bus Crash inside Dome Camera SONY CCD 600TVL night Vision With Audio for MDVR system 1

Bus Crash inside Dome Camera SONY CCD 600TVL night Vision With Audio for MDVR system 2

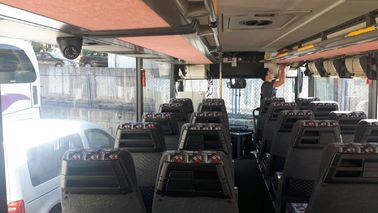

Installation picture:



Bus Crash inside Dome Camera SONY CCD 600TVL night Vision With Audio for MDVR system 3
