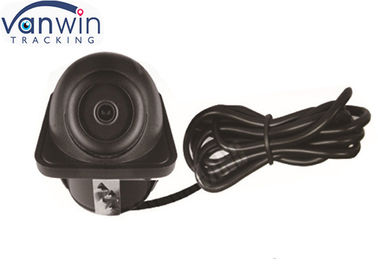

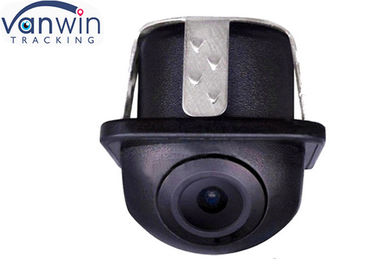

HD Dome Rearview Vehicle Hidden Camera IP67 Waterproof Mirror
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-902 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| Type: | Car Dome Camera For Indoor | Image Sensor: | HD CCD / CMOS |
|---|---|---|---|
| TV System: | PAL Or NTSC | Resolution: | 420/480/600/TVL |
| Service: | OEM/ ODM | Warranty: | 1 Year |
| Waterproof: | IP67 | Application: | Rearview |
| Weight: | 350g | Lens Angel: | 170 Degree |
| High Light: | hidden surveillance cameras,small hidden cameras |
||
Product Description
HD Dome Rearview Vehicle Hidden Camera IP67 Waterproof Mirror
The hidden camera is very popular for front or back useage.
Main Features:
- High quality camera for front or back
- 120~170 degree large angle with from 3~5 meter range
- High resolution from 420~600 lines
- Mini illumination low to 0.01LIX
- Perfect image pictures both day and night
- TV system: NTSC (628*582) or PAL(510*492)
- Power used for 12V or 24V (different model)
- Water / Dust proof rate: IP67
- 4-pin connector or RCA connector(Option)
Specifications:
| Images sensors | Best Quality | Normal Quality |
| Resolution(TV Line) | 600 CCD | 420 COMS |
| Effective pixels | 720*576 /720*480 | 580*540/580*492 |
| Minimum illumination | 0.5 lux | 1 lux |
| IP rating | IP67 | IP67 |
| lens Angle(Deg.) | 170° | 170° |
| TV System | PAL/NTSC | PAL/NTSC |
| Power Supply(DCV) | DC12V±1V | DC12V±1V |
| Power | <1W | <1W |
| Electronic shutter | 1/60(NTSC)1/50(PAL)1/10,000second | 1/60(NTSC)1/50(PAL)1/10,000second |
| S/N Ratio | ≥48dB | ≥48dB |
| Video output | 1.0vp-p.75ohm | 1.0vp-p.75ohm |
| White Balance | Auto | Auto |
| AGC | Auto | Auto |
| Operating Temperature | -20~+75(RH95% Max.) | -20~+75(RH95% Max.) |
| Storage Temperature | -30~+85(RH95% Max.) | -30~+85(RH95% Max.) |
| Optional Function 1 | Parking Line /Guide line | Parking Line /Guide line |
| Optional Function 2 | Mirror image & non-mirrored image | Mirror image & non-mirrored image |
How to install:
1. Fix the camera to a special design hole in your car.
2. Connect the built in license plate light of the camera to where the stock license
plate light was connected to get the power.
3. Connect the power of the camera to your car reverse lights - red wire to positive and
black wire to negative.
4. Connect the video cable of the camera to the extension cord.
5. Connect the extension cord to your car monitor.
6. You will see the images when your car is in reverse shift.
