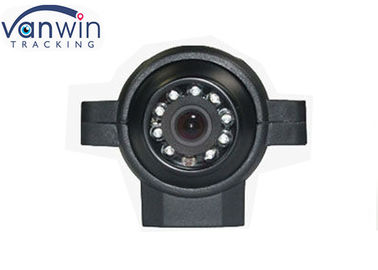

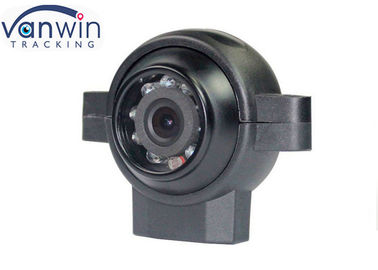

Sideview Bus Surveillance Camera

Sideview Bus Surveillance Camera

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-399

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral carton box package by default
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month
Get Best Price Contact Now

Detail Information

Product Name: Truck Camera Sensor: 1/3 Sharp CCD Car Camera
TV System: PAL Or NTSC Voltage: DC12
Connector: 4 Pin Aviation, Square, BNC Connector Warranty: 12 Months
Resolution: 600TVL/700TVL Application: For Truck Or Bus
Body Size: 7*5*5.8CM
High Light:

car reversing camera


cctv surveillance camera

Product Description

Waterproof IP67 Truck Camera with Metal Housing for Sideview or Outside

  • Outside car camera(inside vehicle installation or outside vehicle installation)
  • Used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.special for truck.

Main Features:

  1. Bus/Truck sideview Camera
  2. High resolution 700TVL/600TVL for option
  3. Waterproof, IP67, 10 IR leds.
  4. Vandal-proof housing.

Technical parameters:

Image Sensor1/3" Sony Color CCD
Horizontal Resolution700TV lines
Effective PixelsPAL:976(H) x 582(V)                                                       NTSC: 976(H) x 494(V)
Minimum IlluminationColor 0.001Lux;IR ON 0 Lux
S/N Ratio≥60dB(AGC OFF)
Auto Gain Control AUTO/MANUAL,8 Value settings
Back Light CompBack light compensation, high light suppression
White BalanceMulti- mode selection
Noise Reduction3D
Electronic shutterAUTO/1/50(1/60)-1(100,000Sec)
Video Out1.0V p-p 75, BNC connector
Control modeOSD manual,support 8 languages
Synchronization SystemInternal
Scanning System2:1 Interlaced
PRIVACY8 areas,freely set up position,size and 8 colors
Motion DetectionGrid tracking,4 areas,freely set up positions and size
IR distance5~10M
Waterproof levelIP66
Working temperature-20°C~+70°C
Power supplyDC12V±10%
Power consumption≤3W

Sideview Bus Surveillance Camera 0
Sideview Bus Surveillance Camera 1

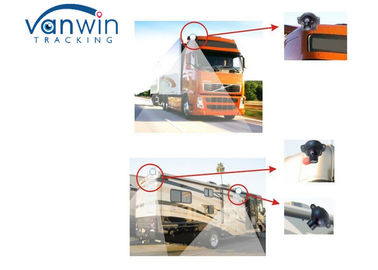

Installation picture:
Sideview Bus Surveillance Camera 2
