| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-C203 |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
| Resolution: | SONY CCD 600/700/800TVL | TV System: | PAL Or NTSC |
|---|---|---|---|
| Color: | Black Or White | Night Vision: | Yes |
| Warranty: | 1 Year | Lens Angle: | 170 Degree Wide Angle |
| Application: | Rearview, Frontview, Sideview | OEM: | Support |
| High Light: | security monitor camera,reverse parking camera |
||

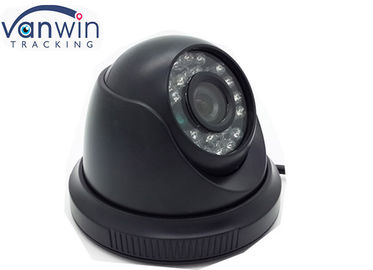

Surveillance Car Dome Camera 170 Degree Wide Degree Inside for Taxi
Main Features:
Technical Specifications:
| Image Sensor | 1/3" 420TVL SONY CCD | 1/3" 600TVL SONY CCD | 1/3 700TVL SONY CCD |
| Video System | PAL/NTSC | PAL/NTSC | PAL/NTSC |
| Pixels | PAL:582(H)*510(V) | PAL:752(H)×582(V) | PAL:976(H)×582(V) |
| NTSC:510(H)*492(V) | NTSC:768(H)×494(V) | NTSC:976(H)×494(V) | |
| Horizontal Resolution | 420 TVL | 600 TVL | 700 TVL |
| Min Illumination | 0.01LUX(0 Lux IR on) | 0.01LUX(0 Lux IR on) | 0.01Lux (0 Lux IR on) |
| SNR | ≥46dB | ≥46dB | ≥48dB |
| Electronic Shutter | 1/50-1/10000(S) | 1/50-1/10000(S) | 1/50(1/60) - 1/100000 (S) |
| Video Output | 1.0V±0.5Vp-p 75Ω | 1.0V±0.5Vp-p 75Ω | 1.0V±0.5Vp-p 75Ω |
| View Angle | 120° | 120° | 120° |
| Working Voltage | DC12V±0.5V | DC12V±0.5V | DC12V±0.5V |
| Consumption | 100mA±10% | 100mA±10% | 70mA±10% |
| Display image | Mirror/normal optional | Mirror/normal optional | Mirror/normal optional |
| MIC | Optional | Optional | optional |
There are three kinds pof connectors for option
1. 4-pin connector
2. RAC connector
3. BNC connector
Installation picture:
