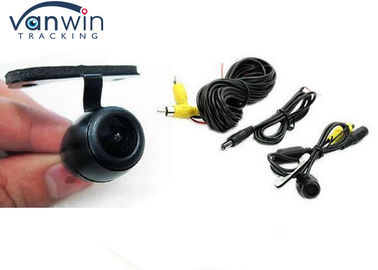

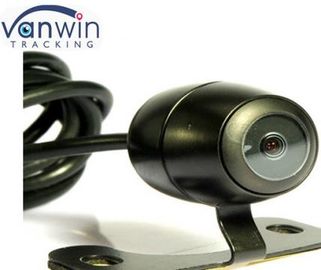

Black Reverse Rear View Car Camera Parking Backup Waterproof IP67
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-138 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month |
|
Detail Information |
|||
| TV System: | PAL Or NTSC | Resolution: | 420/480/600/TVL |
|---|---|---|---|
| Service: | OEM/ ODM | Warranty: | 12 Months |
| Waterproof: | IP67 | IR LED: | 4pcs |
| Lens Angel: | 170 Degree | Color: | Black |
| High Light: | hidden surveillance cameras,security monitor camera |
||
Product Description
Black Reverse Rear View Car Camera Parking Backup Waterproof IP67
Product Description:
- High quality camera for front or back
- 120~170 degree large angle with from 3~5 meter range
- High resolution from 420~600 lines
- Mini illumination low to 0.01LIX
- Perfect image pictures both day and night
- TV system: NTSC (628*582) or PAL(510*492)
- Power used for 12V or 24V (different model)
- Sensor Chip: OV7959, PC1030, PC3030, or MTT9V136(Option)
- Water / Dust proof rate: IP67
- 4-pin connector or RCA connector(Option)
- Warranty: 2 years
Specification:
|
Image sensor : |
CMOS/CCD |
|
Signal system |
NTSC/PAL |
|
Effective pixel: |
PAL: 648(H)× 488(V) NTSC: 648(H)× 488(V) |
|
Effective Pixels |
680*512 or 580*492 |
|
Definition: |
420 TV Lines |
|
Mini illumination |
0.05Lux |
|
Lens angle |
170 degree |
|
Sensitivity |
3.0V/Lux-sec@5600K |
|
Horizontal view angle |
90degrees and 170 degrees is optional |
|
Video output |
RCA connector,1.0vp-p,75ohm |
|
Current consumption |
the maximum :95mA |
|
Power |
DC12V |
|
Night vision distance |
0-5m |
|
Operating Temperature(Deg C) |
-30-+65RH95%Max) |
|
Storage Temperature(Deg C |
-40-+80(RH95% Max) |
|
AGC |
to be automatic |
|
White balance |
to be automatic |
|
The backlight compensation |
to be automatic |
|
Wide-Angle, Waterproof, Anti-shake and Anti-mist. |
|
Features:
Sony CCD/CCD/CMOS Car Camera with real night vision
Resolution: 420~600 TVLines
Color: Black
PAL/NTSC
White Balance: AUTO
AGC: AUTO
Electronic shutter: AUTO
IR LED: 4 IR LED
Power supply: DC 12V

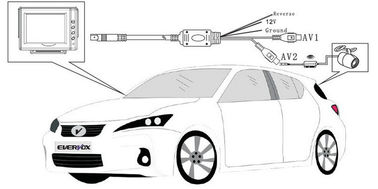

How to install:
1. Fix the camera to a special design hole in your car.
2. Connect the built in license plate light of the camera to where the stock license
plate light was connected to get the power.
3. Connect the power of the camera to your car reverse lights - red wire to positive and
black wire to negative.
4. Connect the video cable of the camera to the extension cord.
5. Connect the extension cord to your car monitor.
6. You will see the images when your car is in reverse shift.
