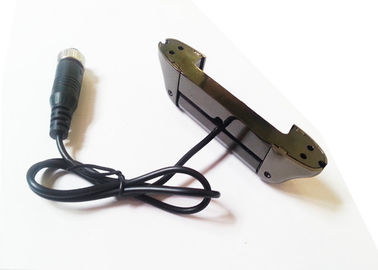

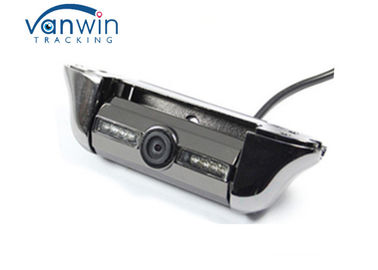

Front View Car Camera , Black Bullet Security Camera 1/4 SONY CCD

Front View Car Camera , Black Bullet Security Camera 1/4 SONY CCD

    • Front View Car Camera , Black Bullet Security Camera 1/4 SONY CCD
    • Front View Car Camera , Black Bullet Security Camera 1/4 SONY CCD
  • Front View Car Camera , Black Bullet Security Camera 1/4 SONY CCD

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-106

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiated
    Packaging Details: Neutral carton box package by default
    Delivery Time: 2-3 days for samples, 5-10 days for large orders
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 5,000pcs per month
    Contact Now
    Detailed Product Description
    Type: Side, Front And Rear Camera Sensor: 1/4 SONY CCD
    TV System: PAL Or NTSC Voltage: DC12
    Waterproof: IP66-IP68 Warranty: 12 Months
    Resolution: Max Support 600TVL Color: Black

    Front View Car Camera , Black Bullet Security Camera 1/4 SONY CCD





         The camera is very popular for taxi or small cars as sideview or frontview, max support 600TVL

    and very clear, also can see very clear at night.



    Main Features:



    1. Max Sony CCD 600TVL for optional



    2. Over 170 degree wide angle monitoring



    3. Very small size with private mould, only we can produce it



    4. Very strong and stable quality



    5. One of best selling cameras



    6. Cabale jack: aviation/BNC/RCA optional;



    7. PAL/NTSC optional, DC12V power supply;





    Specifications:







    TV System NTSC/PAL
    Sensor 1/4 SONY CCD
    Effective Pixels PAL:500(H)x582(V) NTSC510(H)x492(V)
    Horizontal Sync Frequency PAL:15625kHz NTSC:15734kHz
    Vertical Sync Frequency PAL:50 Hz NTSC:60 Hz
    Exposure A.E: auto electronics shutter 1/60s(1/50s)~1/100000s
    Sync.System Internal
    AGC Auto
    BLC Auto
    Resolution 480TVL/PAL,420TVL/NTSC
    Video out 1.0Vp-p composite video. 75(ohm) load
    S/N Ratio ≥48dB
    Current Consumption Max.150mA
    Power Supply DC12V±10%
    Operating Temperature -30℃-70℃,RH95%MAX
    Storage Temperature -40℃-85℃,RH95%MAX
    Lens Horizontal Angel/ Built-in  120° 90° 75°
    Built-in Lens f:1.65mm f:2.8mm f:3.15mm
    Water-proof  IP66-IP68
    Minimum Illumination 0 Lux (with 8Pcs Led ON)







    Application:



    1. Taxi or small car, bus

    2. MDVR or rearview camera









    Front View Car Camera , Black Bullet Security Camera 1/4 SONY CCD



    Front View Car Camera , Black Bullet Security Camera 1/4 SONY CCD

    Front View Car Camera , Black Bullet Security Camera 1/4 SONY CCD
