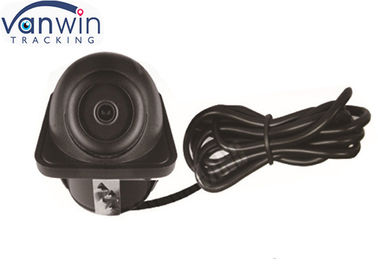

CMOS SD Security Car Rear View Camera 1.3 Megapixel Dust Proof

CMOS SD Security Car Rear View Camera 1.3 Megapixel Dust Proof

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-902

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month
Get Best Price Contact Now

Detail Information

Type: Car Front / Rear / Left / Right View Camera Image Sensor: CCD & CMOS
TV System: PAL Or NTSC Resolution: 420/480/600/TVL
Service: OEM/ ODM Waterproof: IP67
Optional Function: Mirror/non-mirror Optional Function 2: Parking Line Or Not
Lens Angel: 170 Degree
High Light:

hidden surveillance cameras

,

security monitor camera

Product Description

CMOS SD Security Car Rear View Camera 1.3 Megapixel Dust Proof





The mini car camera is generally used as Front / Rear / Left / Right View camera for all small Cars.





Main Features:



  1. High quality camera for front or back
  2. 120~170 degree large angle with from 3~5 meter range
  3. High resolution from 420~600 lines
  4. Mini illumination low to 0.01LIX
  5. Perfect image pictures both day and night
  6. TV system: NTSC (628*582) or PAL(510*492)
  7. Power used for 12V or 24V (different model)
  8. Water / Dust proof rate: IP67
  9. 4-pin connector or RCA connector(Option)



Specifications:



Images sensors Best Quality Normal Quality
Resolution(TV Line) 600 CCD 420 COMS
Effective pixels 720*576 /720*480 580*540/580*492
Minimum illumination 0.5 lux 1 lux
IP rating IP67 IP67
lens Angle(Deg.) 170° 170°
TV System PAL/NTSC PAL/NTSC
Power Supply(DCV) DC12V±1V DC12V±1V
Power <1W <1W
Electronic shutter 1/60(NTSC)1/50(PAL)1/10,000second 1/60(NTSC)1/50(PAL)1/10,000second
S/N Ratio ≥48dB ≥48dB
Video output 1.0vp-p.75ohm 1.0vp-p.75ohm
White Balance Auto Auto
AGC Auto Auto
Operating Temperature -20~+75(RH95% Max.) -20~+75(RH95% Max.)
Storage Temperature -30~+85(RH95% Max.) -30~+85(RH95% Max.)
Optional Function 1 Parking Line /Guide line Parking Line /Guide line
Optional Function 2 Mirror image & non-mirrored image Mirror image & non-mirrored image







Optional Fuction:



1. Mirror or Non-mirror

2. Paking line or without paking line



 How to install:



1. Fix the camera to a special design hole in your car.



2. Connect the built in license plate light of the camera to where the stock license

    plate light was connected to get the power.



3. Connect the power of the camera to your car reverse lights - red wire to positive and

    black wire to negative.



4. Connect the video cable of the camera to the extension cord.



5. Connect the extension cord to your car monitor.



6. You will see the images when your car is in reverse shift.



CMOS SD Security Car Rear View Camera 1.3 Megapixel Dust Proof 0



Installation instruction:

CMOS SD Security Car Rear View Camera 1.3 Megapixel Dust Proof 1
