Waterpoof Bus Surveillance Camera

Waterpoof Bus Surveillance Camera

    • Waterpoof Bus Surveillance Camera
    • Waterpoof Bus Surveillance Camera
    • Waterpoof Bus Surveillance Camera
  • Waterpoof Bus Surveillance Camera

    Product Details:

    Place of Origin: Shenzhen, China
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW-399

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiated
    Packaging Details: Neutral carton box package by default
    Delivery Time: 2-3 days for samples, 5-10 days for large orders
    Payment Terms: Western Union, T/T, Paypal
    Supply Ability: 5,000pcs per month , heavy duty vehicle DVR camera
    Contact Now
    Detailed Product Description
    Product Name: Heavy Duty Vehicle DVR Camera Sensor: 1/3 Sharp CCD Car Camera
    TV System: PAL Or NTSC Voltage: DC12
    IR LED: 10PCS Waterproof: IP67
    Resolution: 600TVL/700TVL/800TVL Application: For Trailer / Bus / Truck / Heavy Duty
    Body Size: 7*5*5.8CM

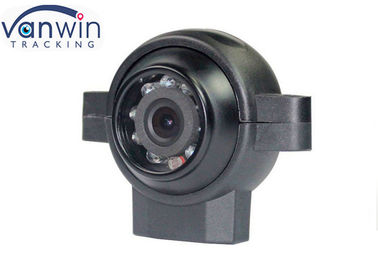

    HD 1/3 Sony CCD 800TVL Heavy Duty Vehicle DVR Camera Waterpoof IP67 with CE FCC



    Main Features:


    1. Bus/Truck sideview Camera
    2. High resolution 800TVL/700TVL/600TVL for option
    3. Waterproof, IP67, 10 IR leds.
    4. Vandal-proof housing.


    Technical parameters:






    Image Sensor 1/3" Sony Color CCD
    Horizontal Resolution 700TV lines
    TV System PAL/NTSC
    Effective Pixels PAL:976(H) x 582(V)                                                       NTSC: 976(H) x 494(V)
    Minimum Illumination Color 0.001Lux;IR ON 0 Lux
    S/N Ratio ≥60dB(AGC OFF)
    DAY&NIGHT MODE  COLOR MODE/AUTO MODE/B&W MODE
    Auto Gain Control  AUTO/MANUAL,8 Value settings
    Back Light Comp Back light compensation, high light suppression
    White Balance Multi- mode selection
    Noise Reduction 3D
    WDR High/Middle/Low
    Lens 2.8MM
    Electronic shutter AUTO/1/50(1/60)-1(100,000Sec)
    Video Out 1.0V p-p 75, BNC connector
    Control mode OSD manual,support 8 languages
    Synchronization System Internal
    Scanning System 2:1 Interlaced
    PRIVACY 8 areas,freely set up position,size and 8 colors
    Motion Detection Grid tracking,4 areas,freely set up positions and size
    IR LEDs 10PCS
    IR distance 5~10M
    Waterproof level IP66
    Working temperature -20°C~+70°C
    Power supply DC12V±10%
    Power consumption ≤3W

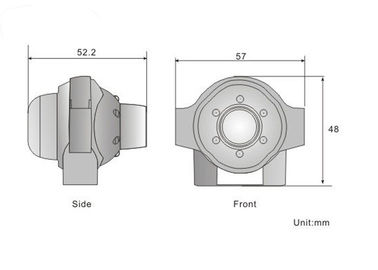

    Dimension 72*50*58mm





    Quality Assurance



    1. Aging test
    2. Waterproof test
    3. High-and-low temperature test





    Application

    • Outside car camera(inside vehicle installation or outside vehicle installation)
    • Used in bus, taxi, truck, school bus, goods van, police car, escort car, tanker truck, etc.special for truck.




    Waterpoof Bus Surveillance Camera


    How to install?


    Waterpoof Bus Surveillance Camera
