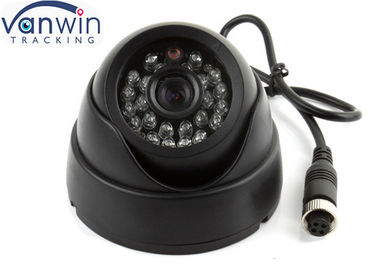

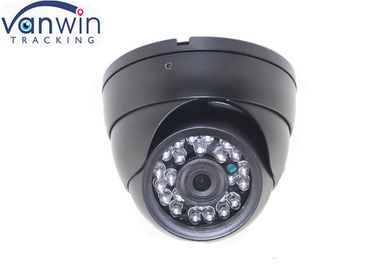

HD 800TVL Mobile Car Dome Camera Reverse Infrared With 1/3" SONY CCD

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-C202
Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month , HD Sony CCD 800TVL Mini Dome camera reverse , Mini Dome Camera revers for Bus
Type: Mini Dome Camera Reverse Resolution: SONY CCD 600/700/800TVL
TV System: PAL Or NTSC Video Output: 1.0V±0.5Vp-p 75Ω
Night Vision: Yes IR LED: 24PCS
Lens Angle: 120 Degree Wide Angle Application: Rearview, Frontview, Sideview
High Light:

car bumper camera

,

reverse parking camera

HD 800TVL Mobile Car Dome Camera Reverse Infrared With 1/3" SONY CCD





Overview



    This is a closed circuit television CCTV camera car surveillance HD dome camera. It works with 24pcs F5 infrared LEDs to create 20 meters infrared distance for night vision to monitor in dark environment. It adopts 3.6mm or 6mm fixed focus lens to let you view objects within 20 meters. It can be worked with DVR recorder, quad processor, DVR card. It can be viewed through monitor, TV, PC, smart phone and etc.





Main Features



1) Dome Plastic, mini size, light weight

2) Applicable to Rearview, Frontview, Sideview

3) Easy install, nice design

4) TVL optional,  800TVL/700TVL/600TVL/480TVL/420TVL

5) Different color for option, white or black

6) With audio for option

7) Most competitive price





Technical Specifications





Image Sensor 1/3" 420TVL SONY CCD 1/3" 600TVL SONY CCD 1/3 700TVL SONY CCD
Video System PAL/NTSC PAL/NTSC PAL/NTSC
Pixels PAL:582(H)*510(V) PAL:752(H)×582(V) PAL:976(H)×582(V)
NTSC:510(H)*492(V) NTSC:768(H)×494(V) NTSC:976(H)×494(V)
Horizontal Resolution 420 TVL 600 TVL 700 TVL
Min Illumination 0.01LUX(0 Lux IR on) 0.01LUX(0 Lux IR on) 0.01Lux (0 Lux IR on)
SNR ≥46dB ≥46dB ≥48dB
Electronic Shutter 1/50-1/10000(S) 1/50-1/10000(S) 1/50(1/60) - 1/100000 (S)
Video Output 1.0V±0.5Vp-p 75Ω 1.0V±0.5Vp-p 75Ω 1.0V±0.5Vp-p 75Ω
View Angle 120° 120° 120°
Working Voltage DC12V±0.5V DC12V±0.5V DC12V±0.5V
Consumption 100mA±10% 100mA±10% 70mA±10%
Display image Mirror/normal optional Mirror/normal optional Mirror/normal optional
MIC Optional Optional optional





FAQ





Q: What is the MOQ ?
A: 1 peice



Q: How fast for sample delivery?
A: 3-7 days



Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.



Q: How about the warranty period?
A: One year!



Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.





HD 800TVL Mobile Car Dome Camera Reverse Infrared With 1/3" SONY CCD 0

HD 800TVL Mobile Car Dome Camera Reverse Infrared With 1/3" SONY CCD 1

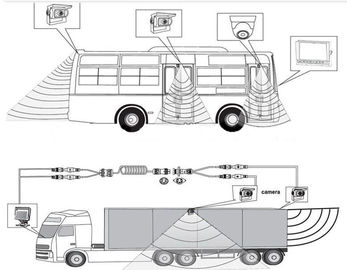

Installation picture



HD 800TVL Mobile Car Dome Camera Reverse Infrared With 1/3" SONY CCD 2

HD 800TVL Mobile Car Dome Camera Reverse Infrared With 1/3" SONY CCD 3
