Starlight night vision Surveillance dome camera with fixed focus lens
Product Details:
Place of Origin: | Shenzhen, China |
Brand Name: | Vanwin Tracking |
Certification: | CE/FCC/RoHS |
Model Number: | VW-C202 |
Payment & Shipping Terms:
Minimum Order Quantity: | 5pcs |
---|---|
Price: | negotiated |
Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
Payment Terms: | Western Union, T/T, Paypal |
Supply Ability: | 5,000pcs per month |
Detail Information |
|||
Type: | Surveillance Dome Camera | Resolution: | SONY CCD 600/700/800TVL |
---|---|---|---|
TV System: | PAL Or NTSC | Service: | OEM/ODM |
Night Vision: | 24pcs Infrared LEDs | Lens Angle: | 140 Degree Wide Angle |
Application: | Internal For Any Vehicle | Connector: | POE, 4PIN, BNC+DC |
IPC: | Support | Warranty: | 12 Months |
Highlight: | car bumper camera,reverse parking camera |
Product Description

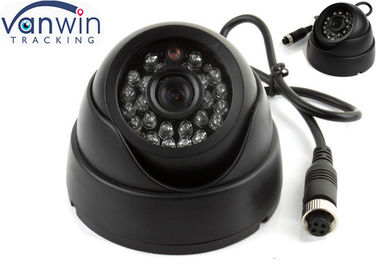

Starlight night vision Surveillance dome camera with fixed focus lens
Overview
This is a closed circuit television CCTV camera car surveillance HD dome camera. It works with 24pcs F5 infrared LEDs to create 20 meters infrared distance for night vision to monitor in dark environment. It adopts 3.6mm or 6mm fixed focus lens to let you view objects within 20 meters. It can be worked with DVR recorder, quad processor, DVR card. It can be viewed through monitor, TV, PC, smart phone and etc.
Main Features
1) Dome Plastic, mini size, light weight
2) Applicable to Rearview, Frontview, Sideview
3) Easy install, nice design
4) TVL or AHD, IPC optional
5) Different color for option, white or black

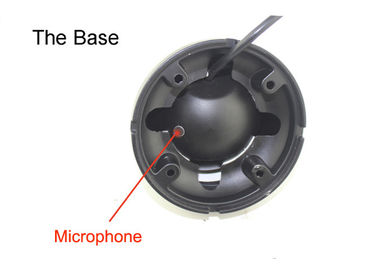

6) With audio for option
7) Most competitive price
Technical Specifications
Image Sensor | 1/3" 420TVL SONY CCD | 1/3" 600TVL SONY CCD | 1/3 700TVL SONY CCD |
Video System | PAL/NTSC | PAL/NTSC | PAL/NTSC |
Pixels | PAL:582(H)*510(V) | PAL:752(H)×582(V) | PAL:976(H)×582(V) |
NTSC:510(H)*492(V) | NTSC:768(H)×494(V) | NTSC:976(H)×494(V) | |
Horizontal Resolution | 420 TVL | 600 TVL | 700 TVL |
Min Illumination | 0.01LUX(0 Lux IR on) | 0.01LUX(0 Lux IR on) | 0.01Lux (0 Lux IR on) |
SNR | ≥46dB | ≥46dB | ≥48dB |
Electronic Shutter | 1/50-1/10000(S) | 1/50-1/10000(S) | 1/50(1/60) - 1/100000 (S) |
Video Output | 1.0V±0.5Vp-p 75Ω | 1.0V±0.5Vp-p 75Ω | 1.0V±0.5Vp-p 75Ω |
View Angle | 120° | 120° | 120° |
Working Voltage | DC12V±0.5V | DC12V±0.5V | DC12V±0.5V |
Consumption | 100mA±10% | 100mA±10% | 70mA±10% |
Display image | Mirror/normal optional | Mirror/normal optional | Mirror/normal optional |
MIC | Optional | Optional | optional |
There are three kinds pof connectors for option
1. 4-pin connector
2. RAC connector
3. BNC connector
FAQ
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.
Installation picture
