Infrared WiFi Auto Side View Camera Dustproof with Mobile DVR
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-206 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month , Auto Side View Camera , Side View Car Camera , Truck / Bus Side View Camera |
|
Detail Information |
|||
| Car Make: | Truck, Bus, Heavy Duty, Trailer And Ect. | Waterproof: | Yes |
|---|---|---|---|
| Resolution: | 600TVL/700TVL/800TVL | Feature: | Waterproof, Dustproof |
| Color: | Housing Black | Viewing Angle: | 120 Degree |
| Warranty: | 12 Months | TV System: | PAL Or NTSC |
| High Light: | car reversing camera,cctv surveillance camera |
||
Product Description

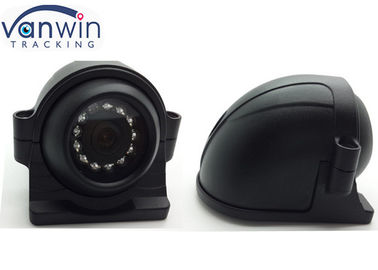

Infrared WiFi Auto Side View Camera Dustproof with Mobile DVR
The camera is used with Mobile DVR / Car DVR (with 3G, 4G, GPS,WiFi) for vehicle real time monitoring, applied with car cameras used for vehicle monitoring in bus, taxi, school, bus, truck, police car, tour bus, tanker truck, escort car etc.
Main Features
- Side View Camera for Heavy-duty or Bus
- 600TVL/700TVL/800TVL for options
- 9PCS Infrared LED lights
- CE,FCC,RoHS Certificates
Technical Specification
| Image Sensor | 1/3" 600TVL SONY CCD | 1/3 700TVL SONY CCD |
| Video System | PAL/NTSC | PAL/NTSC |
| Pixels | PAL:752(H)×582(V) | PAL:976(H)×582(V) |
| NTSC:768(H)×494(V) | NTSC:976(H)×494(V) | |
| Horizontal Resolution | 600 TVL | 700 TVL |
| Min Illumination | 0.01LUX(0 Lux IR on) | 0.01Lux (0 Lux IR on) |
| SNR | ≥46dB | ≥48dB |
| Electronic Shutter | 1/50-1/10000(S) | 1/50(1/60) - 1/100000 (S) |
| Video Output | 1.0V±0.5Vp-p 75Ω | 1.0V±0.5Vp-p 75Ω |
| View Angle | 120° | 120° |
| Working Voltage | DC12V±0.5V | DC12V±0.5V |
| Consumption | 100mA±10% | 70mA±10% |
| Display image | Mirror/normal optional | Mirror/normal optional |
| MIC | Optional | optional |
Chips Available for Option
Sharp CCD 420TVL
Sony CCD 480TVL
Sony CCD 600TVL
Sony CCD 700TVL
Welcome email us prices
Connetor Available for Option
4Pin Aviation connector
DC+RCA connector
CCTV security BNC connector
Accessories
Manual 1pcs, Screw:4pcs
