Night Vision Vehicle Hidden Camera

Night Vision Vehicle Hidden Camera

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-106

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral carton box package by default
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month , CCD DC 12V 120 Degree Waterproof Car Night Vision Taxi security camera , taaaxi
Get Best Price Contact Now

Detail Information

Type: Taxi security camera, Taaaxi Sensor: 1/4 SONY CCD
TV System: PAL Or NTSC Voltage: DC12
Waterproof: IP66-IP68 Warranty: 12 Months
Resolution: Max Support 600TVL Night Vision: Yes
High Light:

hidden surveillance cameras


small hidden cameras

Product Description

CCD DC 12V 120 Degree Waterproof Car Night Vision Taxi security camera , taaaxi



     The car hidden camera is very popular for taxi or small cars as sideview or frontview, max support 600TVL and very clear, also can see very clear at night.




Main Features



1. Max Sony CCD 600TVL for optional


2. Over 170 degree wide angle monitoring


3. Very small size with private mould, only we can produce it


4. Very strong and stable quality


5. One of best selling cameras


6. Cabale jack: aviation/BNC/RCA optional;


7. PAL/NTSC optional, DC12V power supply;






Sensor 1/4 SONY CCD
Effective Pixels PAL:500(H)x582(V) NTSC510(H)x492(V)
Horizontal Sync Frequency PAL:15625kHz NTSC:15734kHz
Vertical Sync Frequency PAL:50 Hz NTSC:60 Hz
Exposure A.E: auto electronics shutter 1/60s(1/50s)~1/100000s
Sync.System Internal
AGC Auto
BLC Auto
Resolution 480TVL/PAL,420TVL/NTSC
Video out 1.0Vp-p composite video. 75(ohm) load
S/N Ratio ≥48dB
Current Consumption Max.150mA
Power Supply DC12V±10%
Operating Temperature -30℃-70℃,RH95%MAX
Storage Temperature -40℃-85℃,RH95%MAX
Lens Horizontal Angel/ Built-in  120° 90° 75°
Built-in Lens f:1.65mm f:2.8mm f:3.15mm
Water-proof  IP66-IP68
Minimum Illumination 0 Lux (with 8Pcs Led ON)





1. Taxi or small car, bus for sideview or frontview

2. MDVR or rearview camera



Chips Available for Option


  1. Sharp CCD 420TVL
  2. Sony  CCD 480TVL
  3. Sony CCD 600TVL

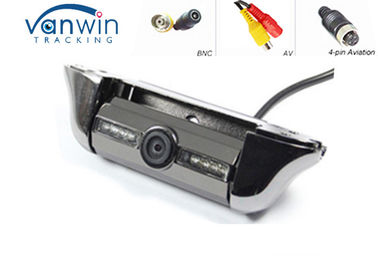

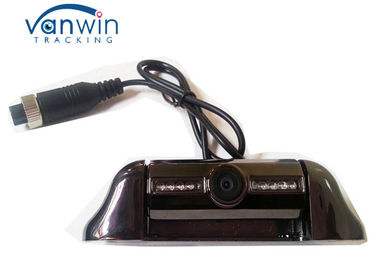

There are three connectors for the taxi security camera


  1. 4Pin Aviat connector
  2. DC+RCA connector
  3. CCTV security BNC connector



Night Vision Vehicle Hidden Camera 0

Night Vision Vehicle Hidden Camera 1

Night Vision Vehicle Hidden Camera 2


Night Vision Vehicle Hidden Camera 3
