Product Details:

Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-C202

Payment & Shipping Terms:

Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month , 4pin Aviation Connector Night Vision Security Monitor Camera Wide Angle View Vehicle Camera for Bus
Get Best Price Contact Now

Detail Information

TV System: PAL Or NTSC Video Output: 1.0V±0.5Vp-p 75Ω
Night Vision: Yes Type: Vehicle Camera For Bus
IR LED: 24PCS Lens Angle: 120 Degree Wide Angle
Application: Rearview, Frontview, Sideview Resolution: SONY CCD 600/700/800TVL
High Light:

car bumper camera

,

reverse parking camera

Product Description

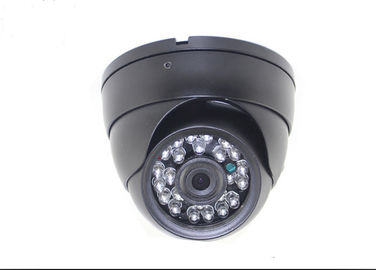

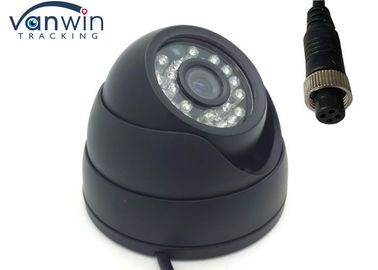

Front View Security Monitor Camera Night Vision High Resolution





Overview



    This is a closed circuit television CCTV camera car surveillance HD dome camera. It works with 24pcs infrared LEDs to create 20 meters infrared distance for night vision to monitor in dark environment. It adopts 3.6mm or 6mm fixed focus lens to let you view objects within 20 meters. It can be worked with DVR recorder, quad processor, DVR card. It can be viewed through monitor, TV, PC, smart phone and etc.





Main Features



1) Dome Plastic, mini size, light weight

2) Applicable to Rearview, Frontview, Sideview

3) Easy install, nice design

4) TVL optional,  800TVL/700TVL/600TVL/480TVL/420TVL

5) Different color for option, white or black

6) With audio for option

7) Most competitive price





Technical Specifications





Image Sensor 1/3" 420TVL SONY CCD 1/3" 600TVL SONY CCD 1/3 700TVL SONY CCD
Video System PAL/NTSC PAL/NTSC PAL/NTSC
Pixels PAL:582(H)*510(V) PAL:752(H)×582(V) PAL:976(H)×582(V)
NTSC:510(H)*492(V) NTSC:768(H)×494(V) NTSC:976(H)×494(V)
Horizontal Resolution 420 TVL 600 TVL 700 TVL
Min Illumination 0.01LUX(0 Lux IR on) 0.01LUX(0 Lux IR on) 0.01Lux (0 Lux IR on)
SNR ≥46dB ≥46dB ≥48dB
Electronic Shutter 1/50-1/10000(S) 1/50-1/10000(S) 1/50(1/60) - 1/100000 (S)
Video Output 1.0V±0.5Vp-p 75Ω 1.0V±0.5Vp-p 75Ω 1.0V±0.5Vp-p 75Ω
View Angle 120° 120° 120°
Working Voltage DC12V±0.5V DC12V±0.5V DC12V±0.5V
Consumption 100mA±10% 100mA±10% 70mA±10%
Display image Mirror/normal optional Mirror/normal optional Mirror/normal optional
MIC Optional Optional optional





FAQ





Q: What is the MOQ ?
A: 1 peice



Q: How fast for sample delivery?
A: 3-7 days



Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.



Q: How about the warranty period?
A: One year!



Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products will run through over 4 times’ 100% testing before being delivered.





Front View Security Monitor Camera Night Vision High Resolution 0

Front View Security Monitor Camera Night Vision High Resolution 1



Installation picture



Front View Security Monitor Camera Night Vision High Resolution 2

Front View Security Monitor Camera Night Vision High Resolution 3



Cameras for Options





Front View Security Monitor Camera Night Vision High Resolution 4
