| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-380 |
| Minimum Order Quantity: | 5PCS |
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month, Waterproof High Definition 1080P 2MP Front Side view camera for trucks |
| Type: | Side View Camera For Van Truck | IR LED: | 10pcs |
|---|---|---|---|
| TV System: | PAL Or NTSC | Lens Angle: | 120 Degree Wide Angle |
| Power: | DC12 Or DV | Sensor: | Analog / AHD / IP |
| Material: | Metal Housing | Waterproof: | IP67 |
| Application: | Side View Cameras For Bus / Truck / Van | IR Cut: | Yes |
| High Light: | mobile surveillance cameras,car reversing camera |
||

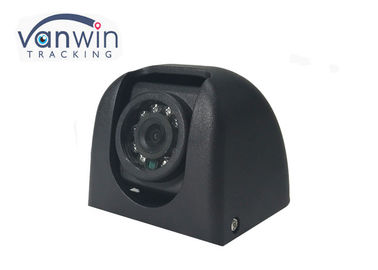

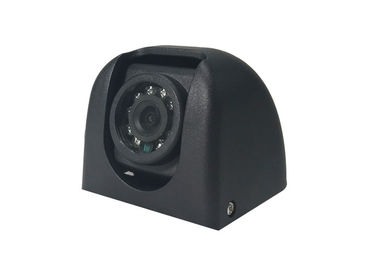

Waterproof High Definition 1080P 2MP Front Side view camera for Van truck
The bus / truck camera is used as side or front cameras for many vehicle, like van, truck, school bus, city bus with good night vision and special design. It can work with mobile dvr, dvr, monitor or other monitoring /reversing system.
Main Features:
Specifications:
960P for example
| Image Sensor | 1/3" AHD 960P CMOS, 0.01Lux/F1.2 |
| Horizontal Resolution | 1.3 Mega pixel |
| TV system | PAL/NTSC |
| Effective pixels | 1280(H)*960(V) |
| Minimum Illumination | 0.01Lux@(F1.2,AGC ON),0Lux with IR |
| S/N | ≥44dB |
| Auto Gain Control | Support |
| Back light compensation | Support |
| White Balance | AUTO |
| Digital Noise Reduction | Adaptive digital noise reduction,2D/3D-DNR |
| Electronic Shutter | AUTO/1/50(1/60)-1(50,000Sec) |
| Video Output | AHD standard |
| Image Function | Original/Reverse image |
| Output Adapter | 4P aviation head cable |
| Lens | 2.33mm(1.7mm Optional),M12*P0.5 |
| IR LEDS Quantity | 10PCS |
| IR distance | 10~15 meters |
| IP grade | IP67 |
| Operating Temperature/Humidity | -30°C~+70°C/Humidity≤90%(No condensation) |
| Power Supply | DC12V±10% |
| Power Consumption | ≤1.2W |
Chips Available for Option
Sharp CCD 600TVL
Sharp CCD 700TVL
Sony CCD 600TVL
Sony CCD 700TVL
Connetor Available for Option
4Pin Aviation connector
DC+RCA connector
CCTV security BNC connector
Or other special connectors required
Accessories
Menual 1pcs, Screw:4pcs

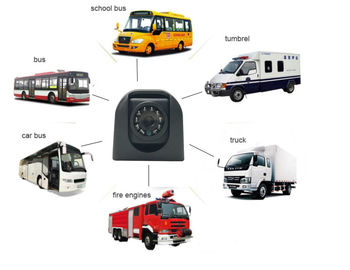

Applications
It can be installed for any vehicle especially truck, bus.
