IR Night Vision Black Bullet Car Camera Backup Reverse Parking

Basic Information
Place of Origin: Shenzhen, China
Brand Name: Vanwin Tracking
Certification: CE/FCC/RoHS
Model Number: VW-536
Minimum Order Quantity: 5pcs
Price: negotiated
Packaging Details: Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 100pcs
Delivery Time: 2-3 days for samples, 5-10 days for large orders
Payment Terms: Western Union, T/T, Paypal
Supply Ability: 5,000pcs per month, Car Rear View Camera with IR Night Vision , Butterfly Bracket Mounting Reverse Backup Camera
TV System: PAL Or NTSC Resolution: 420/480/600/TVL
Type: Car Rear View Camera, Reverse Backup Camera Service: OEM/ ODM
Waterproof: IP67 Image Sensor: CCD & CMOS
Optional Function: Mirror/non-mirror Optional Function 2: Parking Line Or Not
Lens Angel: 170 Degree Power Supply: DC 12
High Light:

hidden surveillance cameras


small hidden cameras

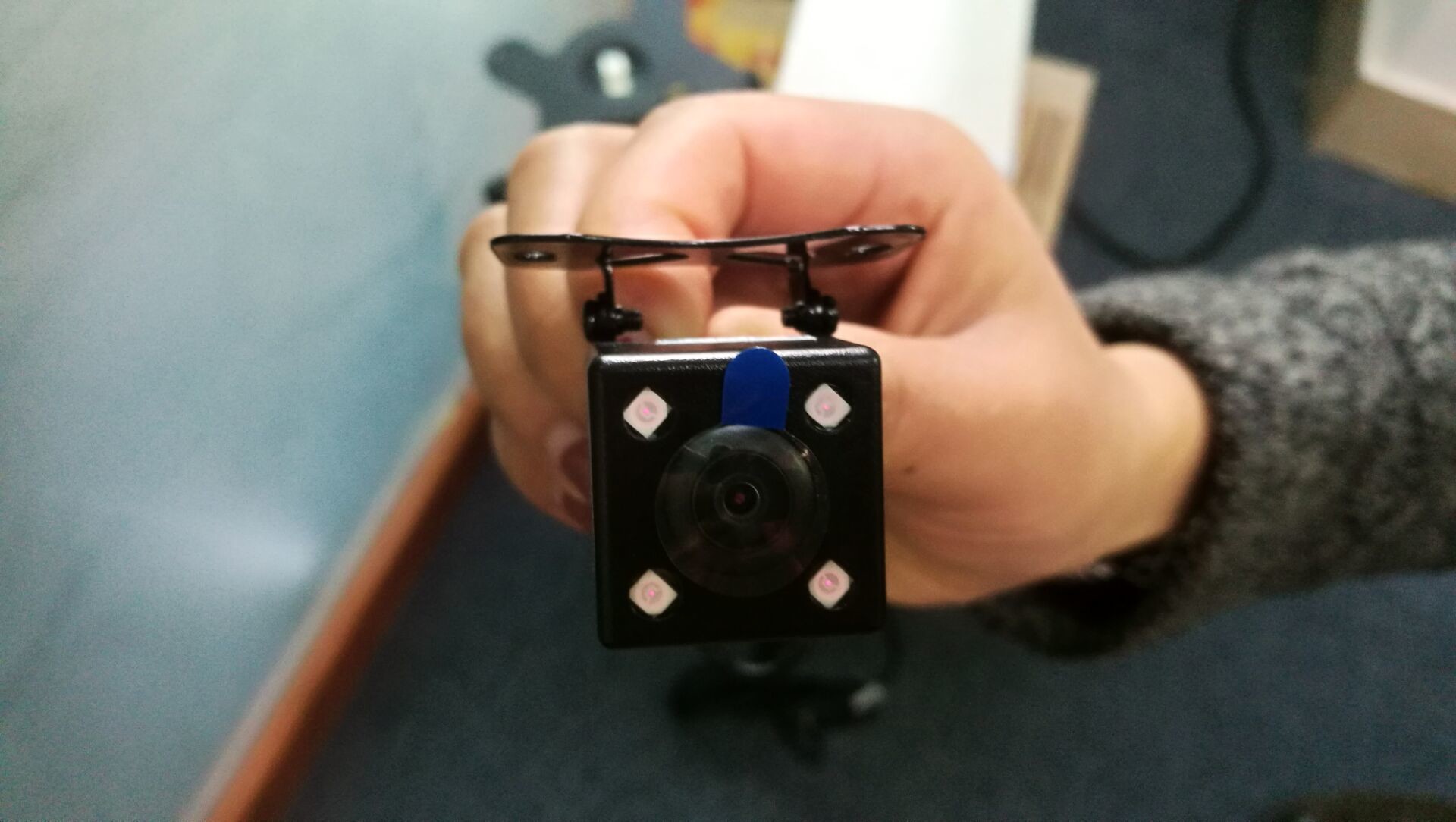

IR Night Vision Black Bullet Car Camera Backup Reverse Parking



The mini car camera is generally used as front / Rear / Left / Right View camera for all small Cars.


The mini camera is a cost-effective product. With a compact structure, it can be easily installed in a hidden position of the vehicle. The image sensor is SONY CCD 420/600TVL /CMOS PC1030. The visual angle is 170 degree, providing a large viewing scope. The distance between the abstacles and the vehicle trail can be shown through the scale on the screen, bringing convenience to reverse. It can support IR lights or not.


Main Features:

  1. The smallest square design car rear view camera with IR (infrared) night vision.
  2. Mini square design with adjustable bracket mounting
  3. Reversing guard line function optional
  4. Mirror/normal view switch optional
  5. BMW-style cable harness with tight connection
  6. Bracket vertically adjustable for best view angle
  7. Support long-time continous working





Sensor: PC1089A or CCD 600TVL
Min illumination: 0Lux (IR on)
TV system: NTSC or PAL
Resolution: 600 TV Lines
Effective pixels: 656(H) x 492(V)PIX
Night Vision distance: 3 meter
Waterproof grade: IP67



Optional Fuction:


1. Mirror or Non-mirror

2. Paking line or without paking line


 How to install:


1. Fix the camera to a special design hole in your car.


2. Connect the built in license plate light of the camera to where the stock license

    plate light was connected to get the power.


3. Connect the power of the camera to your car reverse lights - red wire to positive and

    black wire to negative.


4. Connect the video cable of the camera to the extension cord.


5. Connect the extension cord to your car monitor.


6. You will see the images when your car is in reverse shift.


IR Night Vision Black Bullet Car Camera Backup Reverse Parking 0


Installation instruction:


IR Night Vision Black Bullet Car Camera Backup Reverse Parking 1
