Car 7 inches 4CH TFT LCD Monitor DVR recording Quad Image With support 32G

Car 7 inches 4CH TFT LCD Monitor DVR recording Quad Image With support 32G

    • Car 7 inches 4CH TFT LCD Monitor DVR recording Quad Image With support 32G
    • Car 7 inches 4CH TFT LCD Monitor DVR recording Quad Image With support 32G
  • Car 7 inches 4CH TFT LCD Monitor DVR recording Quad Image With support 32G

    Product Details:

    Place of Origin: Shenzhen,Guandong
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW702-DVR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiated
    Packaging Details: Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn
    Delivery Time: 3-7 working days
    Payment Terms: T/T,Western Union,Paypal
    Supply Ability: 5000 pcs per month ;
    Contact Now
    Detailed Product Description
    Power Supply: 12V-24V DC Optional Screen Size: 7 Inch
    Combination: Quad Image And DVR System Resolution: 800xRGBx480
    Installation Place: Standalone Size: 180mm*121mm*24mm
    Function: For Bus And Truck Warranty: 12 Months
    Name: Car 7 Inches 4CH TFT LCD Monitor DVR Recording Quad Image With Support 32G

    Car 7 inches 4CH TFT LCD Monitor DVR recording Quad Image With support 32G





    Advantages



    1. 4ch quad monitor  with DVR function ,9 inch for optional

    2. Professional factory with better service and good price.

    3. They are used for  vehicle monitoring system or house monitoring.

    4. One year warranty

    5. We have full set for monitors ,car mobile dvr ,cameras .Welcome you to order one full set to test.







    Specification



    Screen Ratio:16:9
    Back Light Luminance:LED, 300cd/㎡
    Resolution:800xRGBx480
    Compatiblesystem:NTSC & PAL (automatically)
    OSD control:Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)
    View angle:Hor. L(70) R(70)   Ver. UP(50) DOWN(70)
    Image reversion:UP/Down and Left/Right
    Power requirement:12V DC (12-24V DC optional)
    Power consumption:<8W
    Size:180mm*121mm*24mm
    Key color: Black rubber oil, radium carving, through blue light
    Shockproof level:4G
    DVR image quality:DVR recording 4 channels video signal, VGA resolution:640*480, Recording speed: 60FPS, Storage format: AVI
    Memory interface:1 SD interface
    Video storage:SD high-speed card, maximum support 32G
    AV Inputs:4 way video input,1way audio input
    Number of Trigger and display:4 triggers
    Optional functions:4 PIN connector, Butterfly style bracket
    Other features:4 channel display for reversing, Full image/2 images/4 images adjustable, Built-in speaker, With removable visor

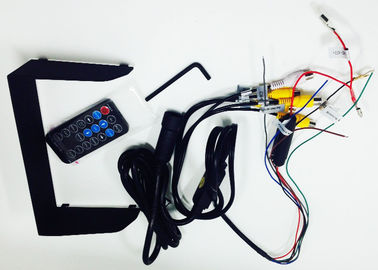

    Accessories:Remote controller, Power supply cable , User manual, Bracket



    Car 7 inches 4CH TFT LCD Monitor DVR recording Quad Image With support 32G



    Our Factory



    Car 7 inches 4CH TFT LCD Monitor DVR recording Quad Image With support 32G



    Car 7 inches 4CH TFT LCD Monitor DVR recording Quad Image With support 32G
