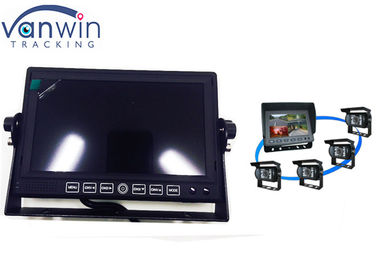

Truck Wireless 4CH Quad Car Video Monitors with Built-In Player, 4 cameras

Truck Wireless 4CH Quad Car Video Monitors with Built-In Player, 4 cameras

    • Truck Wireless 4CH Quad Car Video Monitors with Built-In Player, 4 cameras
    • Truck Wireless 4CH Quad Car Video Monitors with Built-In Player, 4 cameras
    • Truck Wireless 4CH Quad Car Video Monitors with Built-In Player, 4 cameras
  • Truck Wireless 4CH Quad Car Video Monitors with Built-In Player, 4 cameras

    Product Details:

    Place of Origin: Shenzhen,Guandong
    Brand Name: Vanwin Tracking
    Certification: CE/FCC/RoHS
    Model Number: VW702-DVR

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 pc
    Price: negotiated
    Packaging Details: Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn
    Delivery Time: 3-7 working days
    Payment Terms: T/T,Western Union,Paypal
    Supply Ability: 5000 pcs per month ;
    Contact Now
    Detailed Product Description
    Power Supply: 12V-24V DC Optional Screen Size: 7 Inch TFT LCD
    Combination: Quad Image And DVR System Resolution: 800xRGBx480
    Installation Place: Standalone Color: Black
    View Angle: Hor. L(70) R(70) Ver. UP(50) DOWN(70) Function: For Bus And Truck
    Video Input: 4 Ways In Connectors: 4-Pin/RAC Connectors For Option

    Truck Wireless 4CH Quad Car Video Monitors with Built-In Player, 4 cameras



    Features



    1. Car Monitor for monitoring in vehicle or house with 4 cameras ,the video will stored in 32G SD card

    2. 7 inch but very useful

    3. with 4 way video input and one way audio input

    4. also can used as rear view system

    5. have 9 inch for optional



    Specification



    Screen Ratio:16:9
    Back Light Luminance:LED, 300cd/㎡
    Resolution:800xRGBx480
    Compatiblesystem:NTSC & PAL (automatically)
    OSD control:Color, Brightness, Contrast, Volume, Language (English, Deutsch, French, Spanish, Portugal, Italian, Dutch, Simplify Chinese)
    View angle:Hor. L(70) R(70)   Ver. UP(50) DOWN(70)
    Image reversion:UP/Down and Left/Right
    Power requirement:12V DC (12-24V DC optional)
    Power consumption:<8W
    Size:180mm*121mm*24mm
    Key color: Black rubber oil, radium carving, through blue light
    Shockproof level:4G
    DVR image quality:DVR recording 4 channels video signal, VGA resolution:640*480, Recording speed: 60FPS, Storage format: AVI
    Memory interface:1 SD interface
    Video storage:SD high-speed card, maximum support 32G
    AV Inputs:4 way video input,1way audio input
    Number of Trigger and display:4 triggers
    Optional functions:4 PIN connector, Butterfly style bracket
    Other features:4 channel display for reversing, Full image/2 images/4 images adjustable, Built-in speaker, With removable visor

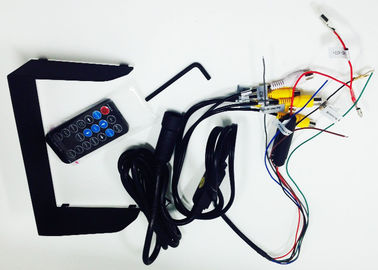

    Accessories:Remote controller, Power supply cable , User manual, Bracket



    Truck Wireless 4CH Quad Car Video Monitors with Built-In Player, 4 cameras

    Truck Wireless 4CH Quad Car Video Monitors with Built-In Player, 4 cameras
