| Place of Origin: | Shenzhen,Guandong |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW1020 |
| Minimum Order Quantity: | 1 pc |
| Price: | negotiated |
| Packaging Details: | Color Neutral Box ; Neutral giftbox,white box and customize box for your option Packing details: Carton Size: 58.2*45.8*34cm N.W:.15.08KG PER CTN G.W: 15.88KG PER CTN 10pcs / ctn |
| Delivery Time: | 3-7 working days |
| Payment Terms: | T/T,Western Union,Paypal |
| Supply Ability: | 5000 pcs per month ; |
| Power Supply: | 12V-24V DC Optional | Resolution: | 1024*768 |
|---|---|---|---|
| Ratio: | 4:3 | Color: | Black Or White For Optional |
| Screen Size: | 10.4 Inch | Installation Method: | Standalone |
| Application: | Car Monitor ,or TV ,or LCD For Cashier | Monitor Name: | High Resolution 10 Inch Car Monitor LCD HDMI Monitor 4:3 Ratio With AV TV DVI |
| High Light: | car reverse lcd monitor,car rear view monitor |
||

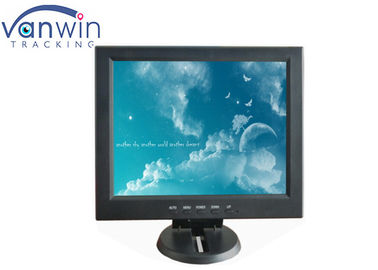

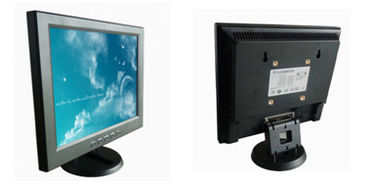

High Resolution 10 Inch Car Monitor LCD HDMI Monitor 4:3 Ratio with AV TV DVI
The monitor is used as LCD monitor or TV or supermaket cashier LCD and so on.It is very high resolution ,much loved by clients.AV/HDMI/USB optional
Specification
| Specification | ||||
| Model | 1020 | |||
| Color | Black or white optional | |||
| Screen Type | TFT-LCD | |||
| Size | 10.4 inch | |||
| Ratio | 4:03 | |||
| Backlight | LED | |||
| Best Resolution | 1024*768@60Hz | |||
| Brightness | 350cd/m² | |||
| Contrast | 500:1 | |||
| Viewing angle | 170/160(H/V) | |||
| colors | 16.2M | |||
| Voltage | DC 12 Volt | |||
| Response time | 8ms | |||
| Inputs | VGA Sub-15Pin | |||
| Optional Inputs | AV,TV, DVI, HDMI, etc. | |||
| Working Condition | ||||
| Working Condition | Working temperature:-20 to 70°C | |||
| Operating humidity:-20 to 70°C | ||||
| Storage temperature:-30 to 80°C | ||||
| Storage humidity:-30 to 80°C | ||||
| Power | Supply Current:100-240V DC12V | |||
| Supply Current:3A | ||||
| Power Consumption:25W | ||||
| Monitor Dimension | ||||
| Monitor Dimension | 26.5*28*4 | |||
| Viewing area | 21.2*16 | |||
| N.W | 1.78KG | |||
| G.W | 4.5KG | |||
| Install | 1) Standard desktop base bracket | |||
| 2) support wall mount, support VESA75*75,100*100 mounting hole | ||||
| OSD MENU | Button AUTO, + ,POWER, - ,MENU | |||
| Language: Chinese, English, Japanese, French, Italian, Devin, Spanish, Korean etc. | ||||
