Sony CCD 1/3 700 TV Line Truck / Bus Security Camera CCTV Outside Car for Reversing or Surveillance
Product Details:
| Place of Origin: | Shenzhen, China |
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-385 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 500pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month , Sony CCD 1/3 700 TVL Truck / Bus Security Camera CCTV Outside Car for Reversing or Surveillance |
|
Detail Information |
|||
| Car Make: | Truck, Bus, Heavy Duty, Trailer And Ect. | Waterproof: | Yes, IP67 |
|---|---|---|---|
| Image Sensor: | CMOS, CCD, CMOS And CCD, AHD 1080P, 1/3" 1.3 Mega Pixels CMOS | Feature: | Waterproof, Dustproof |
| Color: | Black | IR Lights: | 18 IR Lights |
| Warranty: | 12 Months | TV System: | PAL Or NTSC |
| High Light: | mobile surveillance cameras,car reversing camera |
||
Product Description

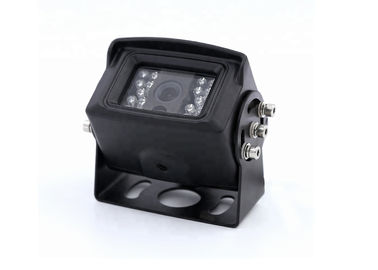

Sony CCD 1/3 700 TVL Truck / Bus Security Camera CCTV Outside for Reversing or Surveillance
Truck / Bus Security Camera CCTV Outside Main Features
- Camera for bus or truck
- CMOS or Sony CCD 600TVL/700TVL/800TVL for options
- 18 PCS Infrared LED light
- Very waterproof ,can be installed inside or outside
- Waterproof and weather resistant housing for outdoor use
- Night vision available, day/night sensor for automatic adjustment
- IR distance: approx. 10~15m
- Mirror/normal image switch-function available
Technical Specification
| Image Sensor | 1/3" 600TVL SONY CCD | 1/3 700TVL SONY CCD |
| Video System | PAL/NTSC | PAL/NTSC |
| Pixels | PAL:752(H)×582(V) | PAL:976(H)×582(V) |
| NTSC:768(H)×494(V) | NTSC:976(H)×494(V) | |
| Horizontal Resolution | 600 TVL | 700 TVL |
| Min Illumination | 0.01LUX(0 Lux IR on) | 0.01Lux (0 Lux IR on) |
| SNR | ≥46dB | ≥48dB |
| Electronic Shutter | 1/50-1/10000(S) | 1/50(1/60) - 1/100000 (S) |
| Video Output | 1.0V±0.5Vp-p 75Ω | 1.0V±0.5Vp-p 75Ω |
| View Angle | 120° | 120° |
| Working Voltage | DC12V±0.5V | DC12V±0.5V |
| Consumption | 100mA±10% | 70mA±10% |
| Display image | Mirror/normal optional | Mirror/normal optional |
Connetor Available for Option
- 4Pin Aviation connector
- DC+RCA connector
- CCTV security BNC connector
Bus security Cameras Accessories
Manual 1pcs, Screw:4pcs
Cameras for optional
