| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-387 |
| Minimum Order Quantity: | 5 pcs |
| Price: | negotiated |
| Packaging Details: | Neutral giftbox, with foam plastic bag packed, customize brand is available when order reach 500pcs |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 5,000pcs per month ; Car Dual Camera Rear view Parking Camera with 15 IR lights 700TVL Sony CCD |
| Car Make: | Truck, Bus, Heavy Duty, Trailer And Ect. | Waterproof: | Yes |
|---|---|---|---|
| Resolution: | CMOS Or CCD 600TVL/700TVL/800TVL Optional | Feature: | Ttwo Cameras Lens |
| IR Lights: | 15 IR Lights Both Sides | Warranty: | 12 Months |
| TV System: | PAL Or NTSC | Product Name: | Car Dual Camera Rear View Parking Camera With 15 IR Lights 700TVL Sony CCD |
| High Light: | car reversing camera,cctv surveillance camera |
||

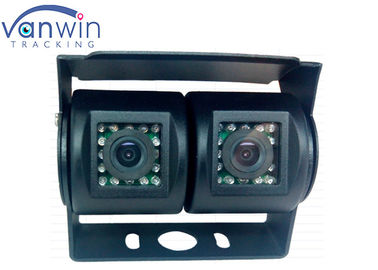

Car Dual Camera Rear view Parking Camera with 15 IR lights 700TVL Sony CCD
We professionally produce all kinds of car cameras with different chips.Below is just for your reference,and we can produce more.Wecome you to inquire us .Thank you and kind regards
Specification
| Image Sensor | 1/3" 600TVL SONY CCD | 1/3 700TVL SONY CCD |
| Video System | PAL/NTSC | PAL/NTSC |
| Pixels | PAL:752(H)×582(V) | PAL:976(H)×582(V) |
| NTSC:768(H)×494(V) | NTSC:976(H)×494(V) | |
| Horizontal Resolution | 600 TVL | 700 TVL |
| Min Illumination | 0.01LUX(0 Lux IR on) | 0.01Lux (0 Lux IR on) |
| SNR | ≥46dB | ≥48dB |
| Electronic Shutter | 1/50-1/10000(S) | 1/50(1/60) - 1/100000 (S) |
| Video Output | 1.0V±0.5Vp-p 75Ω | 1.0V±0.5Vp-p 75Ω |
| View Angle | 120° | 120° |
| Working Voltage | DC12V±0.5V | DC12V±0.5V |
| Consumption | 100mA±10% | 70mA±10% |
| Display image | Mirror/normal optional | Mirror/normal optional |
| MIC | Optional | optional |
Cameras for optional
