| Place of Origin: | Shenzhen, China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW-158 |
| Minimum Order Quantity: | 5pcs |
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default |
| Delivery Time: | 2-3 days for samples, 5-10 days for large orders |
| Payment Terms: | Western Union, T/T, Paypal |
| Supply Ability: | 5,000pcs per month , Anti-explosion Car Camera for Oil Tank Rear View or Monitoring |
| Type: | Oil Tank Camera | Resolution: | 800TVL/700TVL/600TVL |
|---|---|---|---|
| TV System: | PAL Or NTSC | Power: | DC12 Or 24V |
| Warranty: | 12 Months | Lens Angle: | 140 Degree Wide Angle |
| Camera Name: | Anti-explosion Car Camera For Oil Tank Rear View Or Monitoring | ||
| High Light: | mobile surveillance cameras,cctv surveillance camera |
||

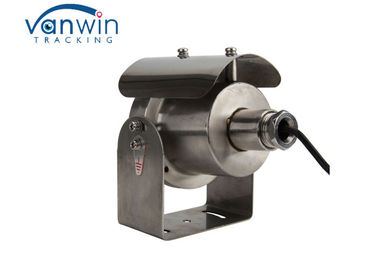

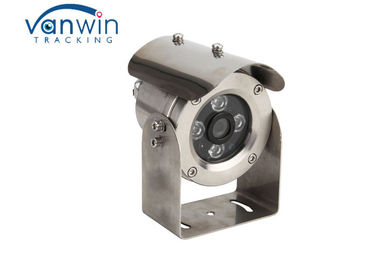

Anti-explosion Car Surveillance Camera for Oil Tank Rear View or Monitoring
This is special model camera for oil tank,gas truck monitoring.It is metal hull with many IR lights for super good night vision .It is anti-explosion and IP68 waterproof.
Take 1/3 sony CCD specification for example.
There are many chips from 420TVL to 800TVL for optional.
| Image Sensor | 1/3" 600TVL SONY CCD |
| Video System | PAL/NTSC |
| Pixels | PAL:752(H)×582(V) |
| NTSC:768(H)×494(V) | |
| Horizontal Resolution | 600 TVL |
| Min Illumination | 0.01LUX(0 Lux IR on) |
| SNR | ≥48dB |
| Electronic Shutter | 1/50-1/10000(S) |
| Video Output | 1.0V±0.5Vp-p 75Ω |
| View Angle | 140° |
| Working Voltage | DC12V±0.5V |
| Consumption | 100mA±10% |
| Display image | Mirror/normal optional |
| MIC | Optional |
| Camera Len | f:3.6mm |
