| Place of Origin: | Shenzhen,China |
|---|---|
| Brand Name: | Vanwin Tracking |
| Certification: | CE/FCC/RoHS |
| Model Number: | VW619HD |
| Minimum Order Quantity: | 1pc |
| Price: | negotiated |
| Packaging Details: | Neutral carton box package by default. Customize package is available if order reach 300 pcs. Customize Logo printing is available for order over 100 pcs . |
| Delivery Time: | 2-3 days for samples,15-30 days for large orders |
| Payment Terms: | T/T or western Union or Paypal |
| Supply Ability: | 5,000pcs per month |
| Video Format: | H.264 | Network Port: | RJ45 |
|---|---|---|---|
| WIFI Download: | Support | AHD Camera: | 720P/960P |
| Passenger Video Counter: | Optional | G-Sensor: | Embedded |
| Alarm: | 6CH Alarm Inputs, 2CH Alarm Output | Resolution: | 4ch 720P(1280x720), 960p |

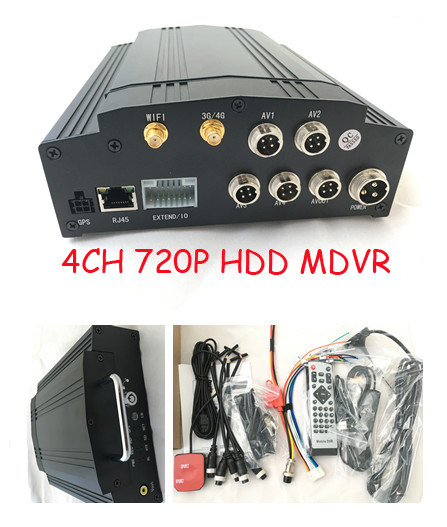

| Product Name: | 4ch HDD Mobile Dvr Support 3g 4g Wifi Gps Mdvr | Language: | English/Chinese/other Language Can Be Customized |
| Software Support: | Client For PC And Mobile Phone, Server, Playback Software | Application: | Bus, Truck, Taxi, Cab, Petrol, Excavator, Mining Truck Fleets |
| High Light: | 3g cctv dvr,car mobile dvr |
||
It is designed for all commercial vehicles, especially those that carry passengers. To discover how the system can be constructed to suit your requirements, contact us for a no obligation consultation.
Main Features
Our Service
2. CMS Platform --- iFAR is our brand name of softwares. Copyright protection. Free platform. It can support PC and Mobile phone.
3. Player --- Free Player.
4. Software --- iFAR is free. Welcome OEM customized project.
5. Technology support --- We provide Installation guiding, Problem solving, Remote upgrading etc.
6. Warranty --- We provide 12 months quality warranty based on normal use.
Main Specifications
| Item | Description | ||
| OS | Linux | ||
| Graphics Operation Interface | System parameters can be set through external display and remote controller | ||
| Security Management | 2-level management for user password, administrator password, supporting encrypted transmission | ||
| Video and Preview | Video Input, Output | 4-channel video input, 1channel video output; 1.0Vp-p, 75Ω | |
| OSD | Character superposition function, information superposition of time and date, device ID and GPS, etc. | ||
| Video Compression Format | Compression coding. Applying hisilicon hi-performance processor. | ||
| Dual-Stream | Supported | ||
| Preview Function | Preview of 1-channel, 4-image stitching, supporting full screen triggered by event and switching of stitched images | ||
| Frame Rate | PAL: 100 frames/s, up to 25 frames/s per channel; NTSC: 120 frames/s, up to 30 frames/s per channel | ||
| Resolution | CIF, HD1 and D1 for selection, supporting 2 channels of D1+ 2 channels of CIF at the most | ||
| Quality | Grade 1 to grade 5 for selection (descending) | ||
| Bit Rate |
CIF: 256Kbps ~ 1.5 Mbps, 8-level bit rates for selection HD1: 600Kbps ~ 2 Mbps, 8-level bit rates for selection D1: 800Kbps ~ 3Mbps, 8-level bit rates for selection |
||
| Audio | Audio Input, Output | 4-channel input, 1-channel output | |
| Compression Format | G.726 coding | ||
| Recording | Storage Medium | Supporting one 2.5” hard drive and one SD card, which supports up to 32G, supporting data redundancy storage technology; | |
| File Format/ System | ASF/FAT32 | ||
| Video Strategies | Recording at startup by default, supporting timed recording, recording triggered by alarm and event, as well as manual recording | ||
| Video Search | Searching by time, type, storage device and other conditions | ||
| Video Playback | Supporting playback on local device, supporting synchronous playback of up to 4 channels and analysis on vehicle information in the files | ||
| Supporting fast forward, fast backward, play and pause, supporting fast forward and fast backward at 2x, 4x, 8x and 16x speed, supporting file play from selected time | |||
| Alarm | Alarm Input/ Output | 6-channel on/off signal alarm input, 1-channel on/off signal alarm output | |
| Alarm Recording | Prerecording function 15 seconds before alarm, duration of recording after alarm can be adjusted from 30s ~ 30min | ||
| Storage Space Alarm | Supporting settings for alarm of storage space | ||
| Function Alarm | GPS overspeed alarm, acceleration alarm, motion detection alarm | ||
| Communication Ports | RS232, RJ45 10M/100M self-adaptable network interface | ||
| Wireless Transmission (Optional) | Supporting Wi-Fi; | ||
| GPS (Optional) | Supporting external GPS | ||
| PTZ Control | Supporting PTZ control realized by local; | ||
| Parameter Configuration | Supporting parameter configuration functions for mobile DVR coding channel; | ||
| G-Sensor | Embedded | ||
| System Upgrading | Supporting SD card, hard drive upgrading and remote upgrading | ||
| Power Supply and Power Consumption | Power Supply |
1. ACC on/off 2. Hard drive lock on/off 3. Delayed shutdown 4. Timed on/off |
|
| Input Voltage | DC:+8V ~ +36V | ||
| Output Voltage | +12V@4*0.5A; +5V@0.5A | ||
| Power-off Protection | With patented UPS power supply continuous working technology, it can work for 3~5 seconds after external power supply is cut so that the intactness of video data can be kept upon sudden power failure | ||
| Power Consumption | <10W in normal operation; <0.5W in standby mode | ||
| Operating Environment | Temperature | Normal: 0℃ ~ +60℃; upon hard drive preheating: -25℃ ~ +60℃ | |
| Humidity | 10% to 95% | ||
| Dimensions | 160(W) x62(H) x200(D) mm. | ||
| Weight | Net: 2200g, Gross: 3500g | ||
